Main circuit breakers

The E.NEXT isolating switch serves as the main emergency switch. It protects against the effects of short circuits and overloads. The switch conducts current under nominal conditions and also in the event of a short circuit or overload in electrical installations. It ensures safe operation during the handling and servicing of devices and networks. The switch housing and all non-metallic parts inside the switch are made of non-flammable ABS plastic. Reinforced contact terminals have grooves that improve mechanical stability and ensure reliable contact. Specifications: Protection level: IP20 Made of non-flammable ABS plastic Max. cross-section of connected wires: 1 to 25 mm² Mounting on a standard DIN 35 mm rail Two fixed mounting positions on the DIN rail Connection method: top and bottom Operating temperature: -25°C to +40°C Rated voltage: 230/400V~ Rated frequency: 50 Hz Number of poles: 1 Mechanical lifespan: not less than 10,000 cycles Terminal tightening torque: 3Nm Rated current: 40A CE Certificate

Read more less

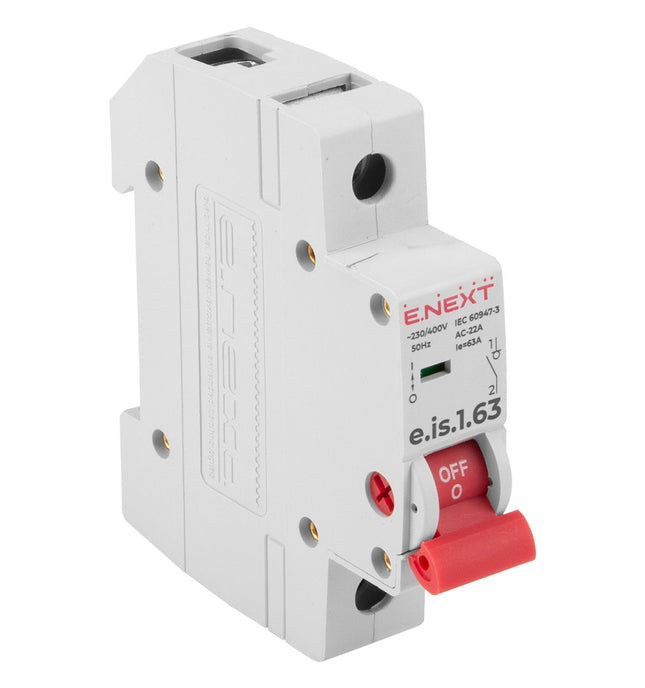

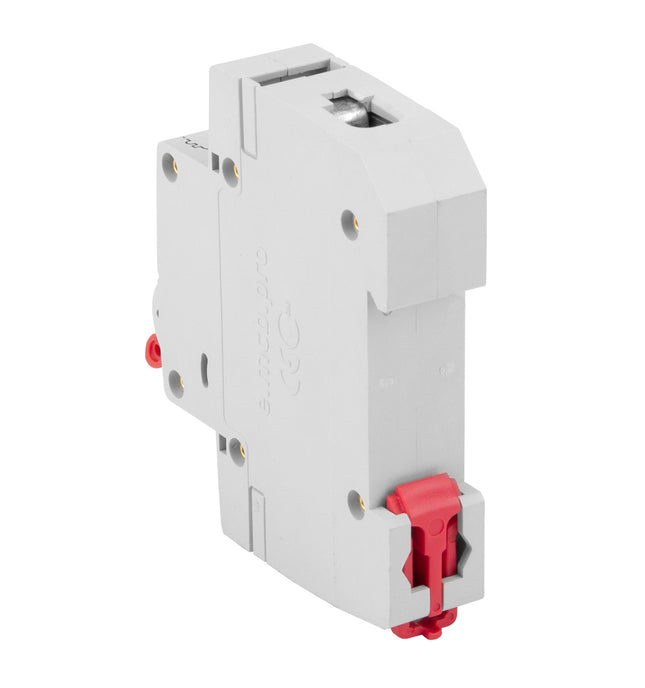

The E.NEXT isolating switch serves as the main emergency switch. It protects against the effects of short circuits and overloads. The switch conducts current under nominal conditions and also in the event of a short circuit or overload in electrical installations. It ensures safe operation during the handling and servicing of devices and networks. The switch housing and all non-metallic parts inside the switch are made of non-flammable ABS plastic. Reinforced contact terminals have grooves that improve mechanical stability and ensure reliable contact. Specifications: Protection level: IP20 Made of non-flammable ABS plastic Max. cross-section of connected wires: 1 to 25 mm² Mounting on a standard DIN 35 mm rail Two fixed mounting positions on the DIN rail Connection method: top and bottom Operating temperature: -25°C to +40°C Rated voltage: 230/400V~ Rated frequency: 50 Hz Number of poles: 1 Mechanical lifespan: not less than 10,000 cycles Terminal tightening torque: 3Nm Rated current: 63A CE Certificate

Read more less

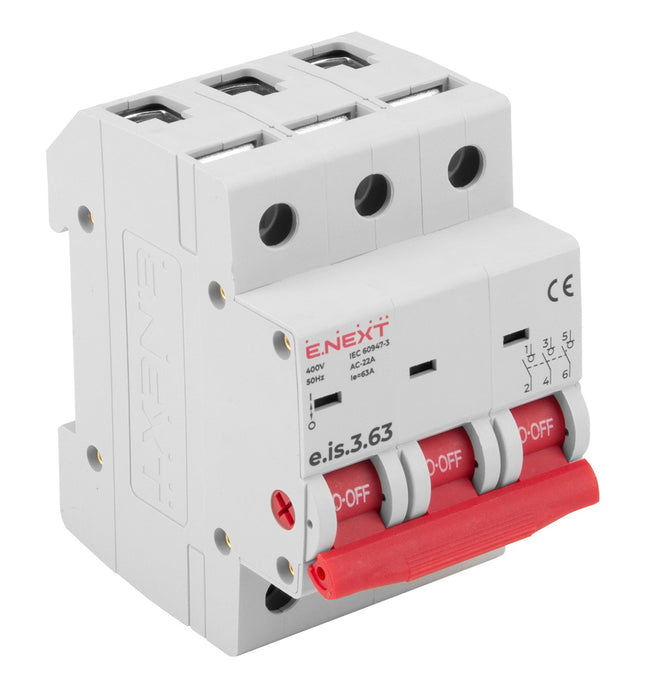

The isolating switch from E.NEXT is used as a main emergency breaker. It protects against the effects of short circuits and overloads. The switch conducts current under nominal conditions as well as during short circuits or overloads in electrical installations. It ensures safe operation during the handling and servicing of devices and networks. The switch’s housing and all non-metallic internal parts are made of flame-resistant ABS material. Reinforced contact terminals have grooves that enhance mechanical stability and ensure reliable contact. Specifications: Protection degree: IP20 Max. connected wire cross-section: 1 to 25 mm² Mounting: Standard DIN rail 35 mm DIN rail positions: Two fixed positions Connection method: Top and bottom Operating temperature: -25°C to +40°C Rated voltage: 400V~ Rated frequency: 50 Hz Number of poles: 3 Mechanical lifespan: Not less than 10,000 cycles Terminal tightening torque: 3 Nm Rated current: 63A CE Certificate

Read more less

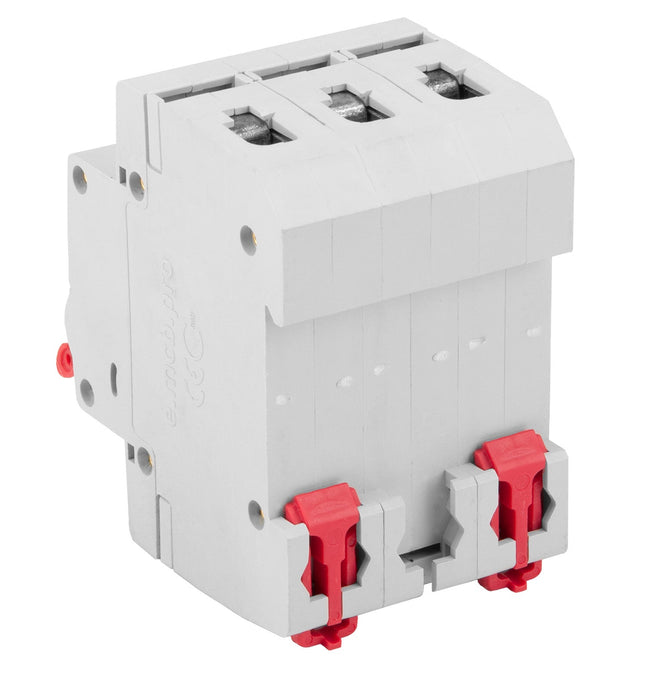

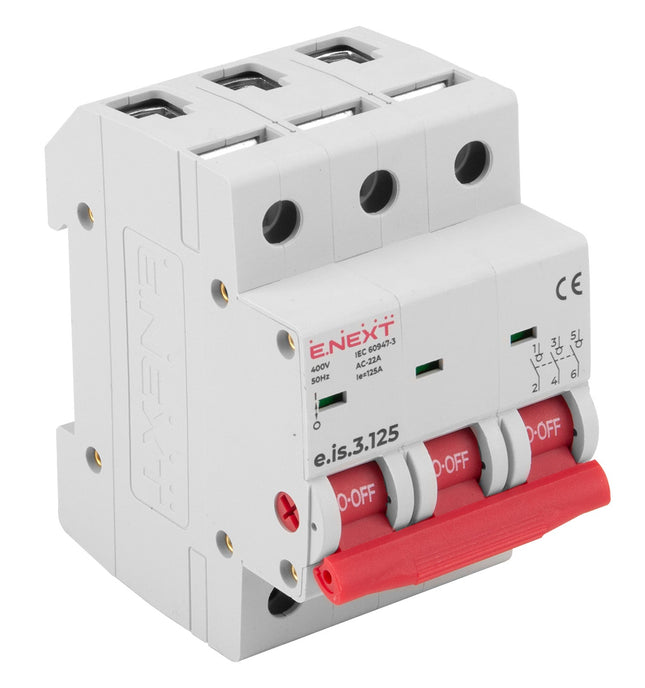

The isolating switch from E.NEXT is used as a main emergency breaker. It protects against the effects of short circuits and overloads. The switch conducts current under nominal conditions as well as during short circuits or overloads in electrical installations. It ensures safe operation during the handling and servicing of devices and networks. The switch’s housing and all non-metallic internal parts are made of flame-resistant ABS material. Reinforced contact terminals have grooves that enhance mechanical stability and ensure reliable contact. Specifications: Protection degree: IP20 Max. connected wire cross-section: 1 to 25 mm² Mounting: Standard DIN rail 35 mm DIN rail positions: Two fixed positions Connection method: Top and bottom Operating temperature: -25°C to +40°C Rated voltage: 400V~ Rated frequency: 50 Hz Number of poles: 3 Mechanical lifespan: Not less than 10,000 cycles Terminal tightening torque: 3 Nm Rated current: 125A CE Certificate

Read more less
