The hermetic junction box is widely used in surface-mounted wall installations. Its high protection rating of IP65 ensures dust and waterproof capabilities, making it suitable for outdoor conditions. It features a simple construction consisting of a base and a cover. The box has 8 prepared connection holes. It is easy and safe to install. Specification: Dimensions: 110x110x74 mm Protection rating: IP65 Temperature range: -25°C to +60°C Color: grey CE certification Dimensions: Height: 110 mm Width: 110 mm Depth: 75 mm Equipment: 4 cable glands, which can serve as cable entry points 4 screws for mounting the cover to the base of the box 4 caps for concealing the screws Installation kit consisting of 4 screws and 4 wall plugs 2 side brackets for mounting the box without interfering with its structure Gasket

Read more less

The hermetic junction box is widely used in surface-mounted wall installations. Its high protection rating of IP65 ensures dust and waterproof capabilities, making it suitable for outdoor conditions. It is suitable for mounting devices powered by 230V/400V. The box features a simple construction consisting of a base and a cover. It has 10 prepared connection holes and is easy and safe to install. Specification: Dimensions: 180x110x77 mm Protection rating: IP65 Temperature range: -25°C to +60°C Color: grey CE certification Dimensions: Height: 180 mm Width: 110 mm Depth: 77 mm Equipment: 6 stepped cable glands 4 screws for mounting the cover to the base of the box 4 caps for concealing the screws Installation kit consisting of 4 screws and 4 wall plugs 4 side brackets for mounting the box without interfering with its structure Gasket

Read more less

Hermetic Junction Box is widely used in surface-mounted wall installations. With a high protection rating of IP65, it ensures dustproof and waterproof properties, making it suitable for outdoor conditions. It features a simple structure consisting of a base and a cover. It has 14 adapted connection holes. Easy and safe to install. Specification: Dimensions: 270x180x100 mm Protection Rating: IP65 Temperature Range: -25°C to +90°C Color: Gray Dimensions: Width: 180 mm Height: 270 mm Depth: 100 mm Includes: 8 cable glands that can serve as cable inlets. 6 screws for mounting the cover to the base. 4 screw caps for concealing screws. Mounting kit consisting of 4 screws and 4 wall plugs. 6 side brackets for mounting the box without altering its structure. A support wire to hold the box during installation.

Read more less

Hermetic Junction Box is widely used in surface-mounted wall installations. With a high protection rating of IP40, it ensures dustproof and waterproof properties, making it suitable for outdoor conditions. It features a simple structure consisting of a base and a cover. It has 4 adapted connection holes. Easy and safe to install. Specification: Diameter: 90 mm Depth: 45 mm Protection Rating: IP40 Temperature Range: -5°C to +60°C Color: Gray Certification: CE Includes: 2 screws 2 mounting plugs 4 stepped cable glands

Read more less

The hermetic junction box is widely used in surface-mounted wall installations. The protection rating of IP40 ensures partial dust protection. It is suitable for mounting devices powered by 230V/400V. Specification: Dimensions: 85x85x48 mm Protection rating: IP40 Temperature range: -25°C to +60°C Color: grey Installation kit consisting of 2 screws and 2 wall plugs

Read more less

The hermetic junction box is widely used in surface-mounted wall installations. Its high protection rating of IP65 ensures dust and waterproof capabilities, making it suitable for outdoor conditions. It features a simple construction consisting of a base and a cover. The box has 14 prepared connection holes and is easy and safe to install. Specification: Dimensions: 138x226x98 mm Protection rating: IP65 Temperature range: -25°C to +90°C Color: grey CE certification Dimensions: Height: 226 mm Width: 138 mm Depth: 98 mm Equipment: 4 stepped cable glands 4 screws 4 wall plugs 4 screws for mounting the cover Cover gasket

Read more less

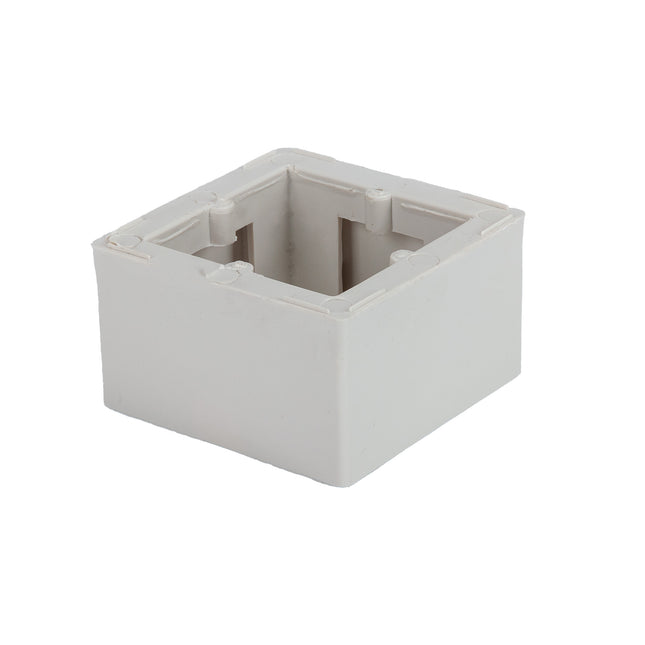

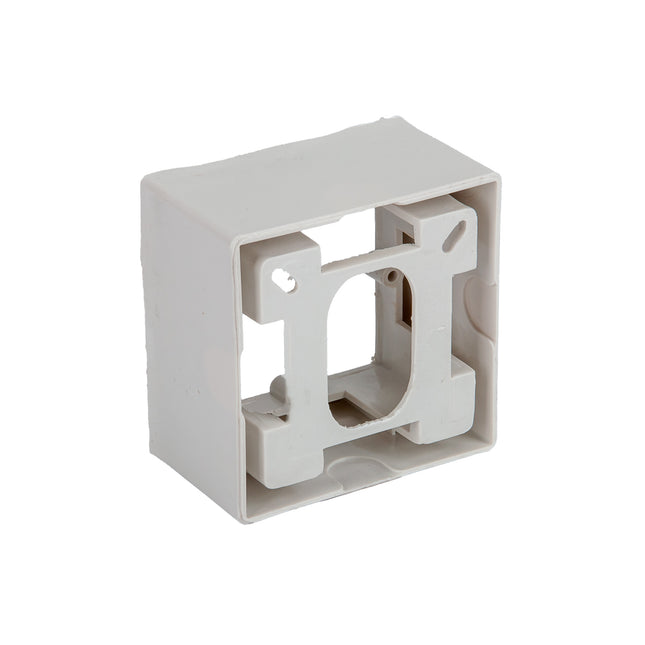

General features A single surface-mounted connection box for a 45x45 socket is designed for installing modular equipment in 46x18 and 46x25 mm cable ducts and trunking systems. It allows for the installation of 1 module of 45x45, ensuring an aesthetically pleasing connection point by the cable duct. It can be used with compatible electrical, telecommunications, and other elements of the 45x45 system. It is suitable for surface-mounted installations in offices, workshops, technical rooms, and utility facilities. Technical specification Type: surface-mounted connection box Mounting method: surface-mounted Application: electrical sockets and modular equipment System: 45x45 Certificate: CE

Read more less

General features Surface-mounted junction box for 45x45 sockets is designed for mounting modular equipment in 46x18 and 46x25 mm cable trunking systems. This solution is suitable for surface-mounted installations in offices, workshops, technical rooms, and utility facilities. Technical specifications Type: surface-mounted junction box Mounting method: surface-mounted Application: electrical sockets and modular equipment System: 45x45 Certificate: CE

Read more less

Surface-mounted junction box 225x311x130 with transparent door, IP65, flame-retardant Product description The 225x311x130 mm surface-mounted junction box with a transparent door is a durable enclosure designed to protect electrical equipment, automation components, and control elements. Thanks to its IP65 protection rating, it effectively secures devices against dust and water jets, making it perfectly suitable for both indoor and outdoor use. The transparent door allows for quick inspection of installed devices without the need to open the enclosure, which improves operational convenience and safety. The housing is made of flame-retardant material, providing additional protection for electrical installations and allowing for use in demanding working conditions. The product is CE certified, confirming compliance with the applicable requirements for this type of equipment. This junction box is used in switchgear, electrical installations, industrial automation, residential and commercial construction, and anywhere else where durable and airtight protection of electrical apparatus is required. Specification Product type: surface-mounted junction box / hermetic enclosure Dimensions: 225 × 311 × 130 mm Protection rating: IP65 Door: transparent Certificate: CE Purpose: mounting of electrical and control equipment Application: switchgear, automation, electrical installations, residential and industrial construction Mounting method: surface-mounted Resistance: dust-tight and protection against water jets Quantity in set: 1 piece

Read more less

Mounting box 225x311x130 with transparent door IP65 Product description The 225x311x130 mm mounting box with a transparent door is a robust enclosure designed to protect electrical installation components, automation systems, and control devices. The IP65 protection rating effectively safeguards the contents against dust and water jets, making the product ideal for both indoor and outdoor use. The transparent door allows for the monitoring of devices inside the enclosure without the need to open it, facilitating operation and increasing safety. The box is suitable for use in industrial installations, residential buildings, commercial facilities, workshops, and automation systems. Its durable construction provides resistance to mechanical damage and weather conditions, while its aesthetic finish ensures a professional look for any installation. The product is CE certified, confirming compliance with the requirements applicable to this type of product. Specification Product type: mounting box / airtight enclosure Dimensions: 225 × 311 × 130 mm Protection rating: IP65 Door: transparent Certificate: CE Purpose: mounting of electrical and control equipment Application: switchboards, automation, electrical installations, industry, construction Mounting: surface-mounted Resistance: dustproof and protected against water jets Quantity per set: 1 piece
