Power distribution panels are universal enclosures designed for mounting modular equipment in 19" RACK cabinets. They are equipped with a cover with an opening and a DIN TS-35 rail.
They can accommodate up to 22 fuses with a width of 1S (17.5 mm).
We would like to inform you that from 20th December 2024 to 7th January 2025, our company will be closed due to inventory. Orders placed during this period will be processed starting 7th January 2025. Thank you for your understanding!

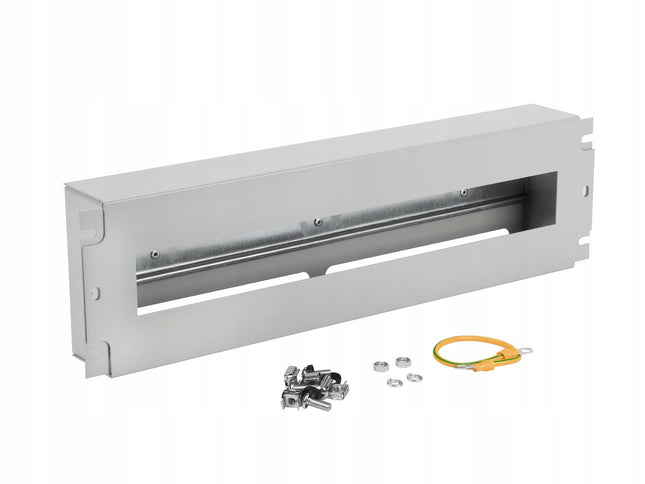

The voltage distribution panel is a universal enclosure designed for mounting modular equipment in 19” RACK cabinets. It is equipped with a cover with an opening and a euro DIN TS-35 rail. It can accommodate up to 22 fuses with a width of 1S (17.5 mm). Specification: Model: 7-19/PD3U/02/9005 Material: steel sheet Panel capacity: 22 modules of type S with a width of 17.5 mm Application: 19” RACK cabinets Mounting: to rack rails Color: RAL9005 (black) Protection: IP20 Mounting kit and grounding wire included Dimensions: Height: 3U (133 mm) Width: 19” (internal 440 mm) Depth: 60 mm Weight: 1.95 kg
118,00 zł
The power distribution panel is a universal enclosure designed for mounting modular devices in 19” RACK cabinets. It features a cover with an opening and a DIN TS-35 euro-rail. It can accommodate up to 22 fuses with a width of 1S (17.5 mm). Specifications: Model: 7-19/PD3U/02/7035 Material: steel sheet Panel capacity: 22 modules of type S with a width of 17.5 mm Application: 19" RACK cabinets Mounting: to rack rails Color: RAL7035 (gray) Protection: IP20 Mounting kit and grounding wire included Dimensions: Height: 3U (133 mm) Width: 19” (internal 440 mm) Depth: 60 mm Weight: 1.95 kg
125,00 zł
Power distribution panels are universal enclosures designed for mounting modular equipment in 19" RACK cabinets. They are equipped with a cover with an opening and a DIN TS-35 rail.
They can accommodate up to 22 fuses with a width of 1S (17.5 mm).
