Description

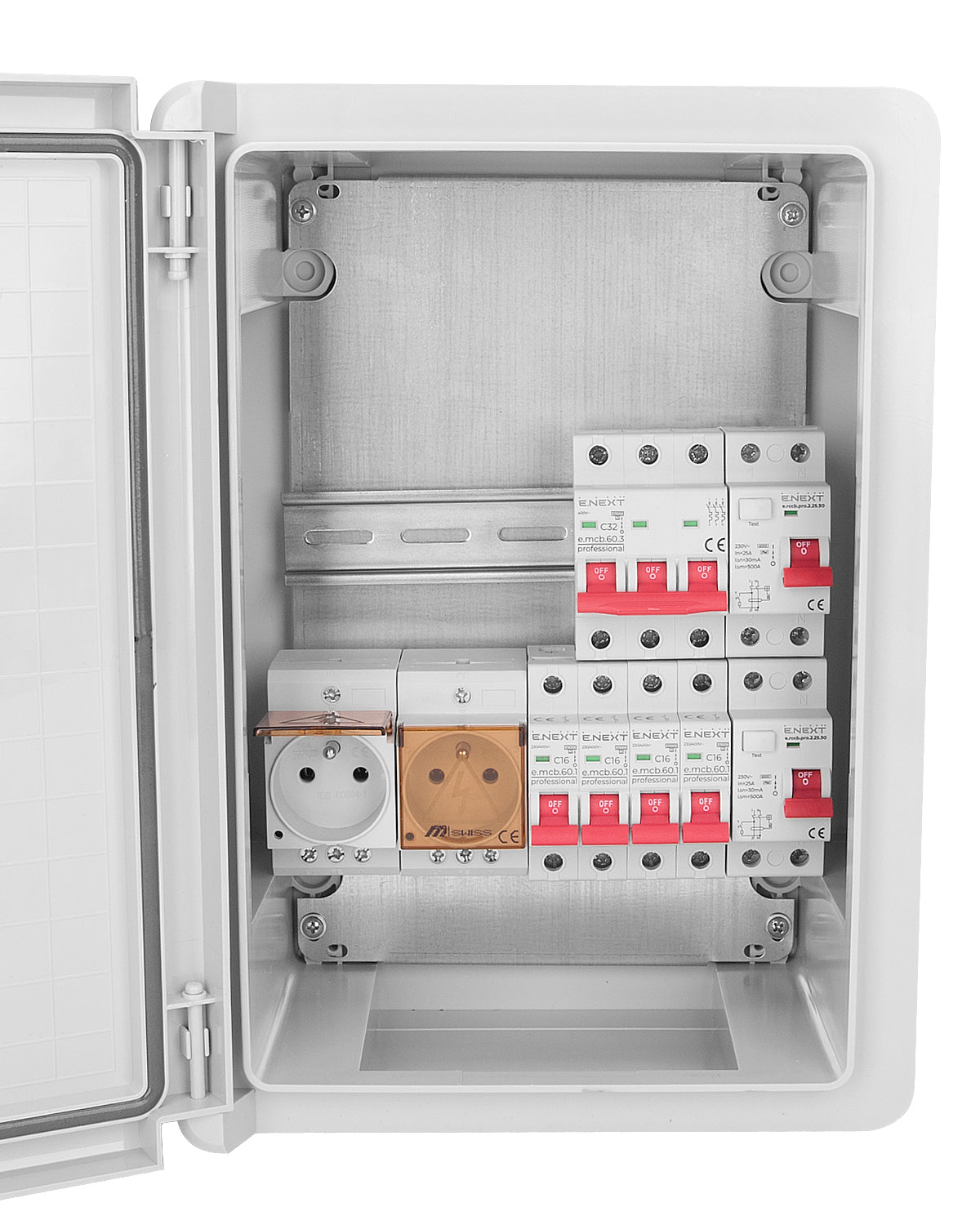

The electrical distribution cabinet is designed for electrical installations. Its high protection level and gasket enable the box to be used in outdoor conditions. The galvanized steel mounting plate allows for the installation of equipment without compromising the cabinet's structure. The set includes a mounting kit.

Specifications:

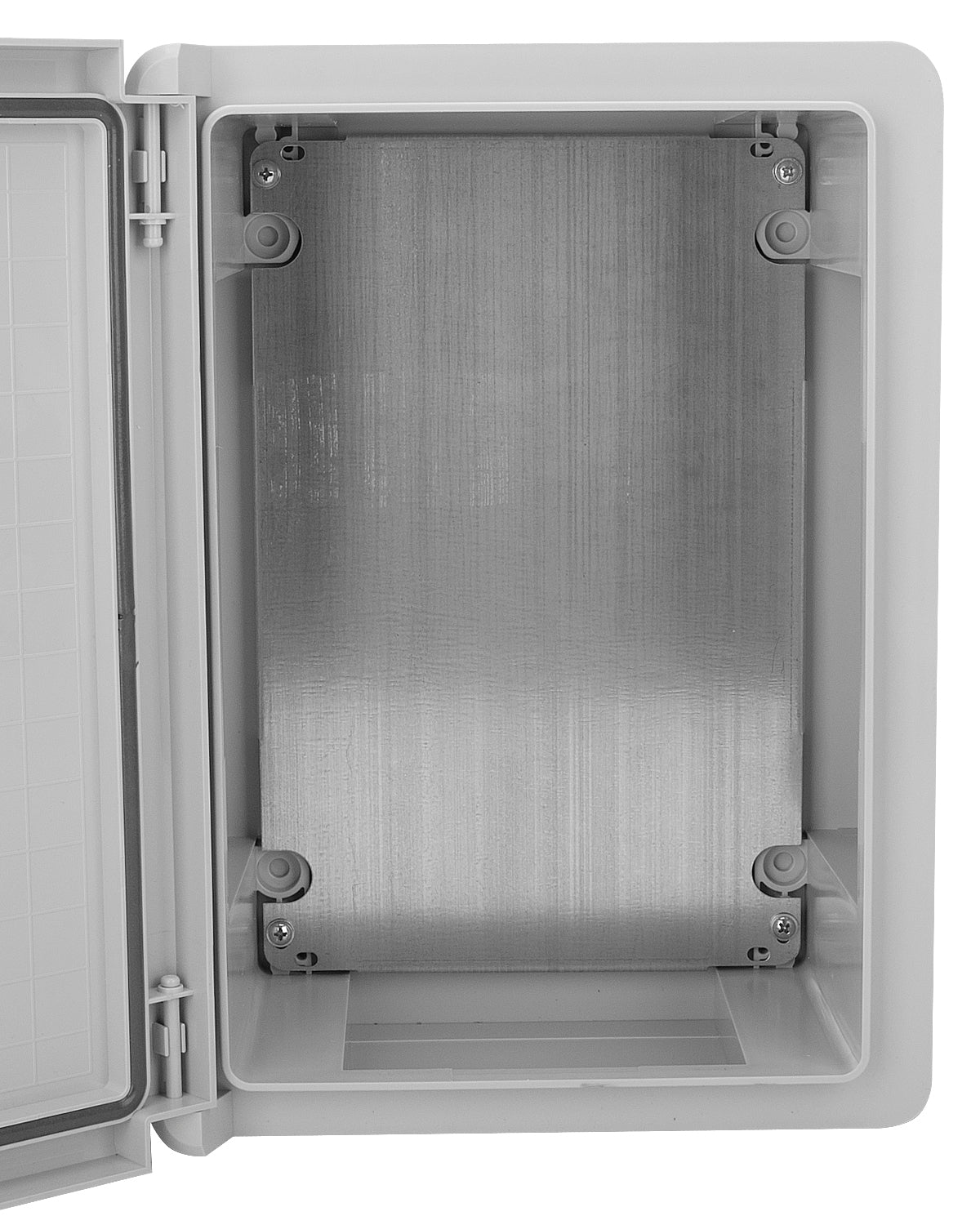

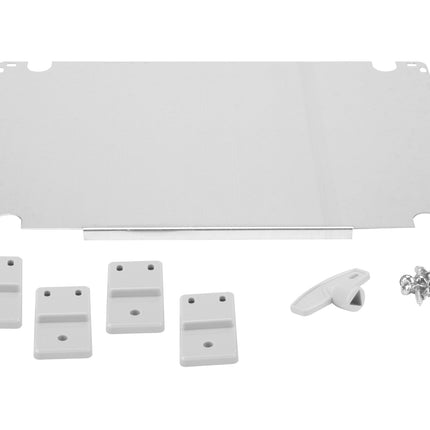

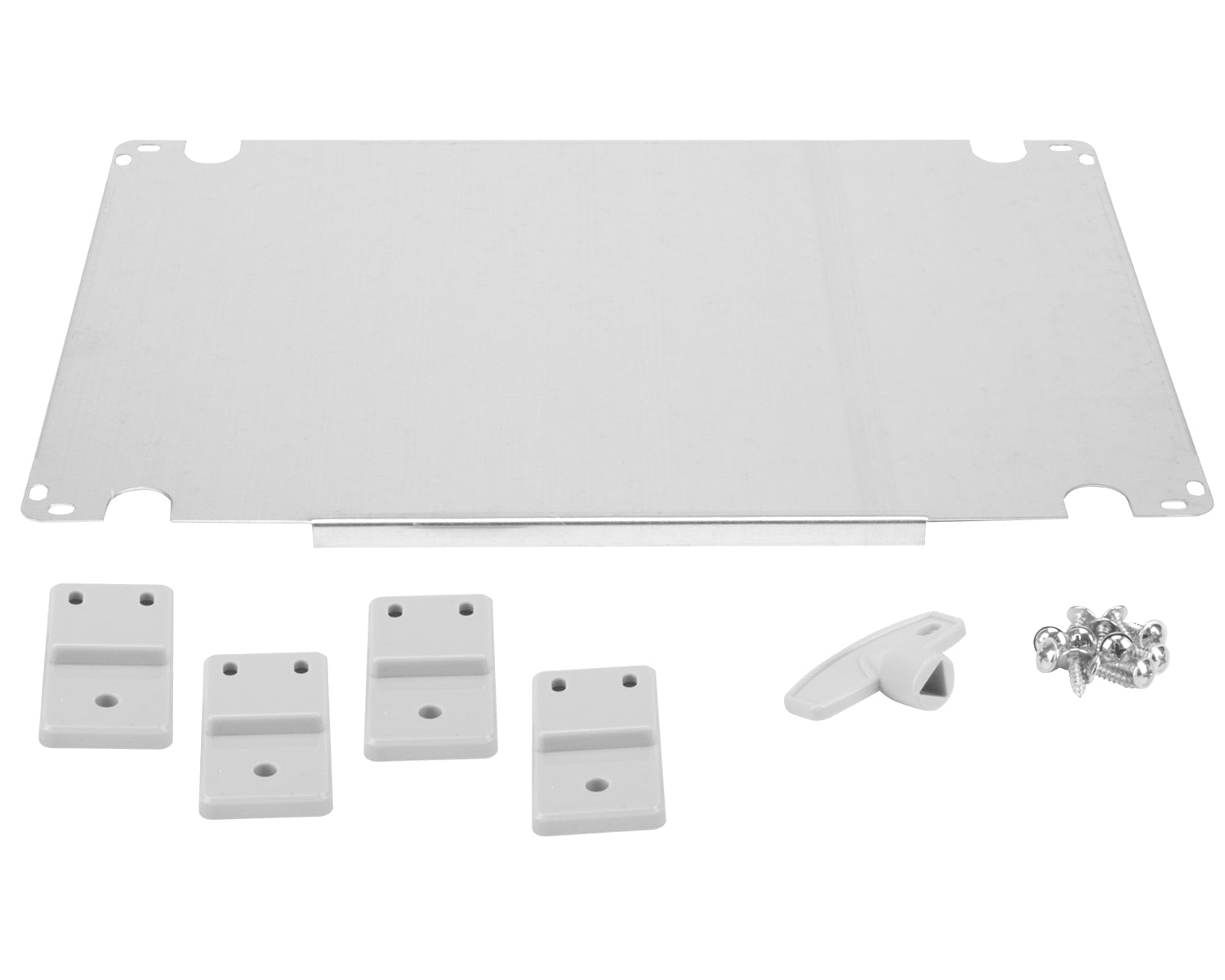

  • Full mounting plate made of 1 mm galvanized steel

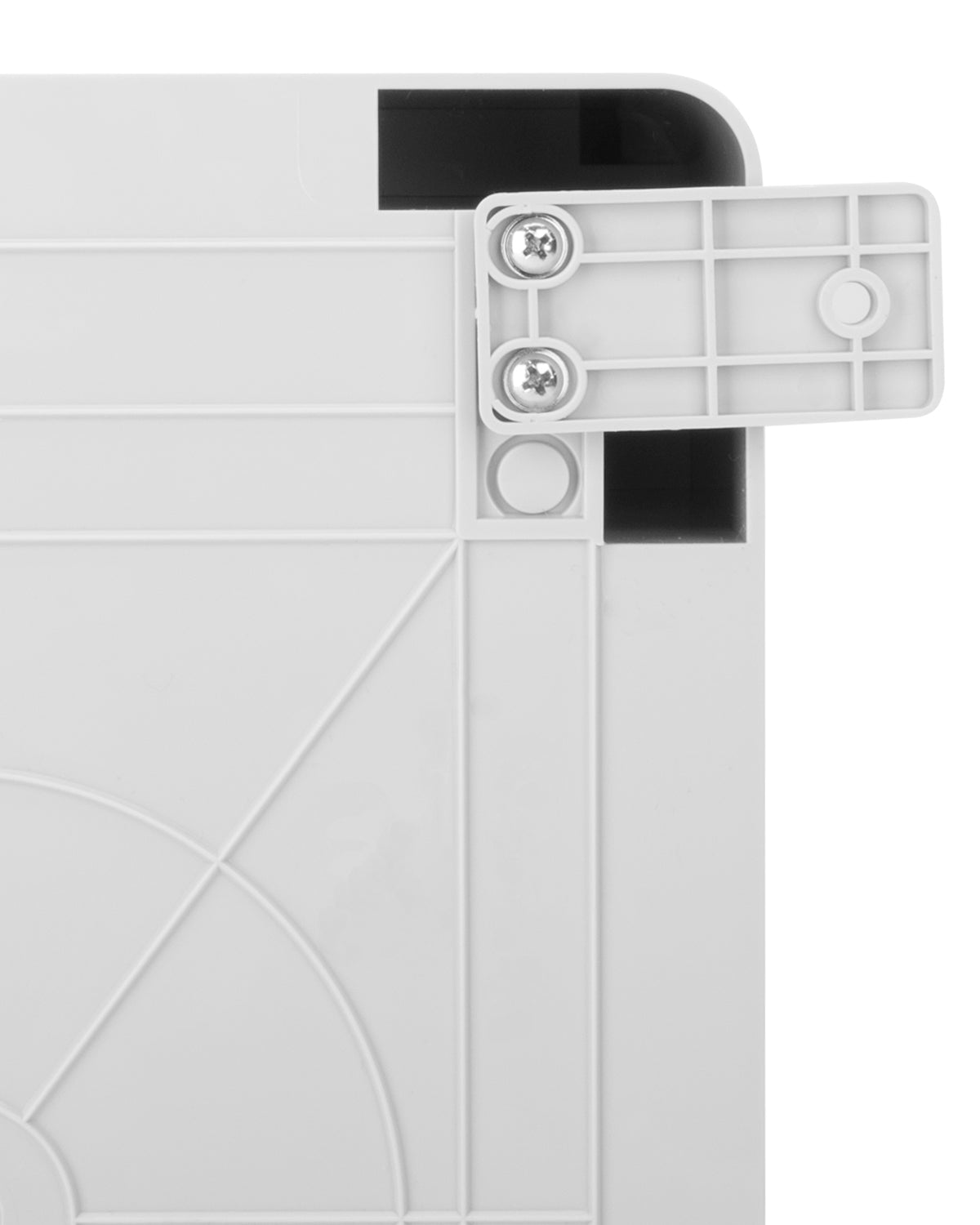

  • Set of self-tapping screws for mounting the plate and brackets
  • Two triangular locks
  • 10 mm triangular key
  • Cable glands

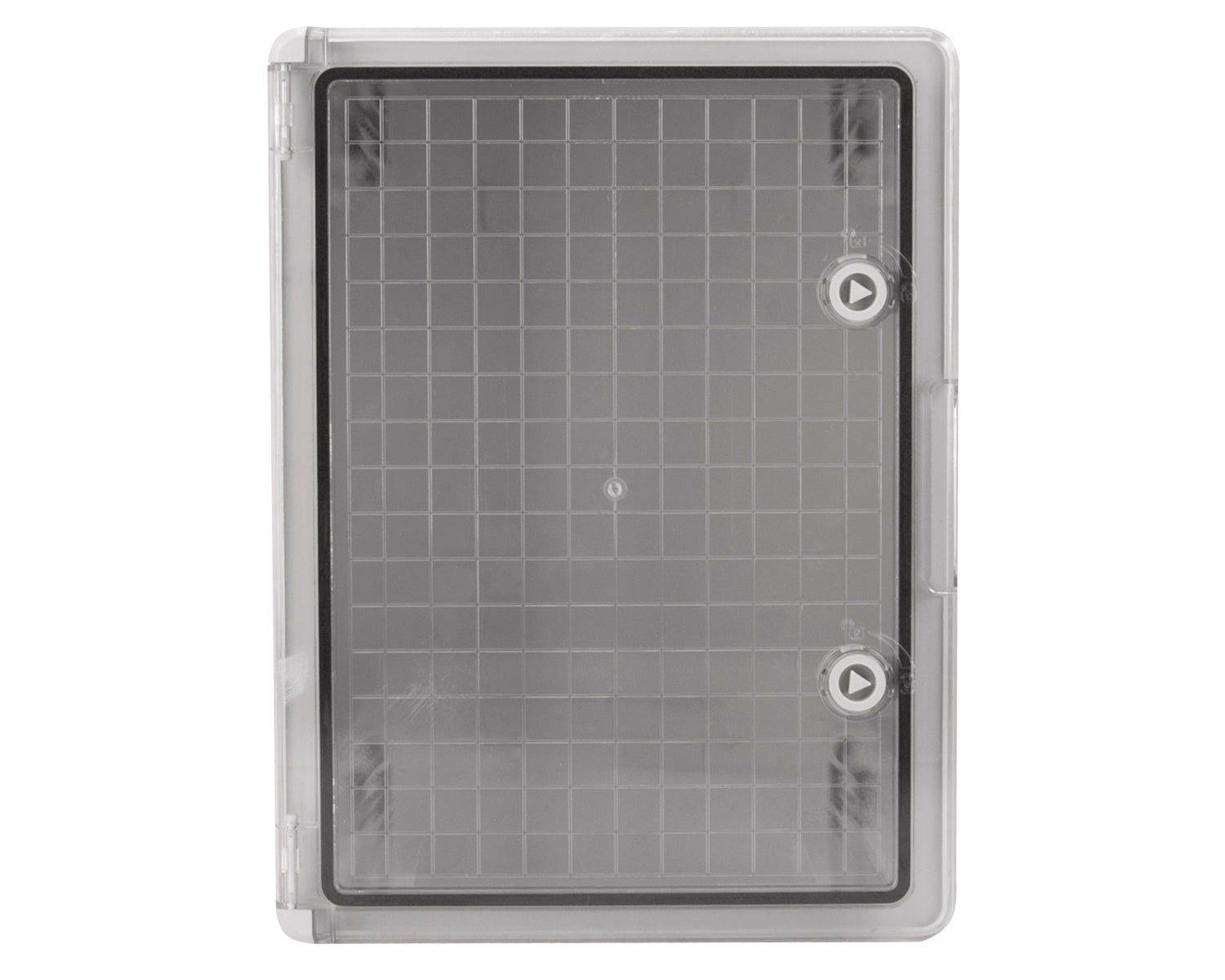

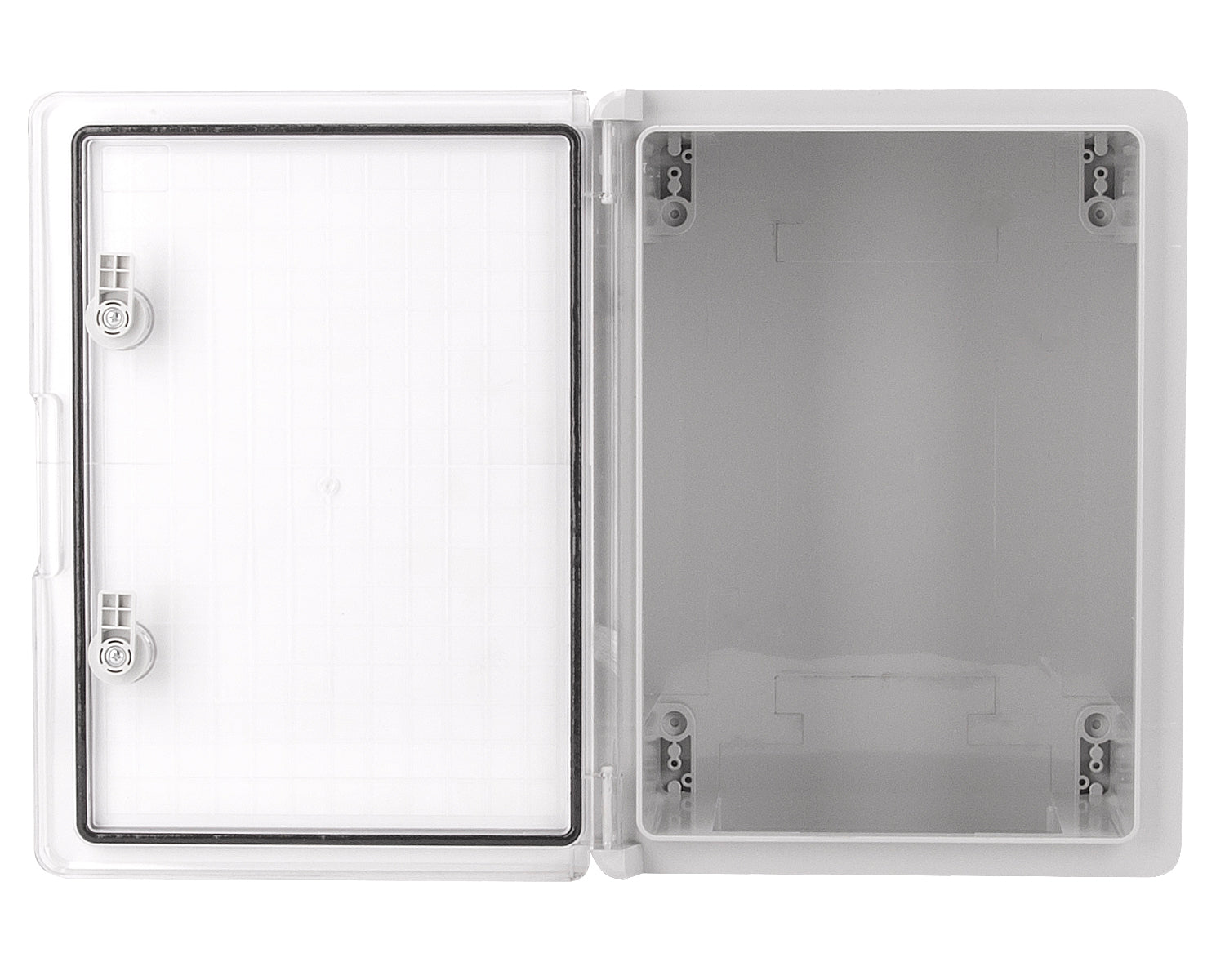

  • Transparent doors
  • Surface-mounted
  • Material: ABS
  • Protection rating: IP65 (protection against access to hazardous parts with a wire, dust-tight protection, and protection against water jets (12.5 l/min) from any direction)
  • Operating temperature range: -25°C to 60°C
  • Fire resistance up to 650°C
  • Operating at a rated voltage up to 690 V
  • Operating at a rated current up to 800 A
  • Door opening angle: 180°
  • Color: gray
  • Option to install a patent lock with a key
External dimensions:
  • Width: 300 mm
  • Height: 400 mm
  • Depth: 170 mm
Internal dimensions:
  • Width: 247 mm
  • Height: 355 mm
  • Depth: 145 mm

We also offer other sizes of mounting cabinets:

  • 20x30x13
  • 25x35x15
  • 30x40x17
  • 40x50x18



ABS Mounting Cabinet 30x40x17 with Transparent Doors

Product form

Free pickup in our shop(s)

Barcode: 5903968236779

129,00 zł (netto: 104,88 zł)

Large quantity

      Description

      The electrical distribution cabinet is designed for electrical installations. Its high protection level and gasket enable the box to be used in outdoor conditions. The galvanized steel mounting plate allows for the installation of equipment without compromising the cabinet's structure. The set includes a mounting kit.

      Specifications:

      • Full mounting plate made of 1 mm galvanized steel
      • Set of self-tapping screws for mounting the plate and brackets
      • Two triangular locks
      • 10 mm triangular key
      • Cable glands
      • Transparent doors
      • Surface-mounted
      • Material: ABS
      • Protection rating: IP65 (protection against access to hazardous parts with a wire, dust-tight protection, and protection against water jets (12.5 l/min) from any direction)
      • Operating temperature range: -25°C to 60°C
      • Fire resistance up to 650°C
      • Operating at a rated voltage up to 690 V
      • Operating at a rated current up to 800 A
      • Door opening angle: 180°
      • Color: gray
      • Option to install a patent lock with a key
      External dimensions:
      • Width: 300 mm
      • Height: 400 mm
      • Depth: 170 mm
      Internal dimensions:
      • Width: 247 mm
      • Height: 355 mm
      • Depth: 145 mm

      We also offer other sizes of mounting cabinets:

      • 20x30x13
      • 25x35x15
      • 30x40x17
      • 40x50x18
