Description

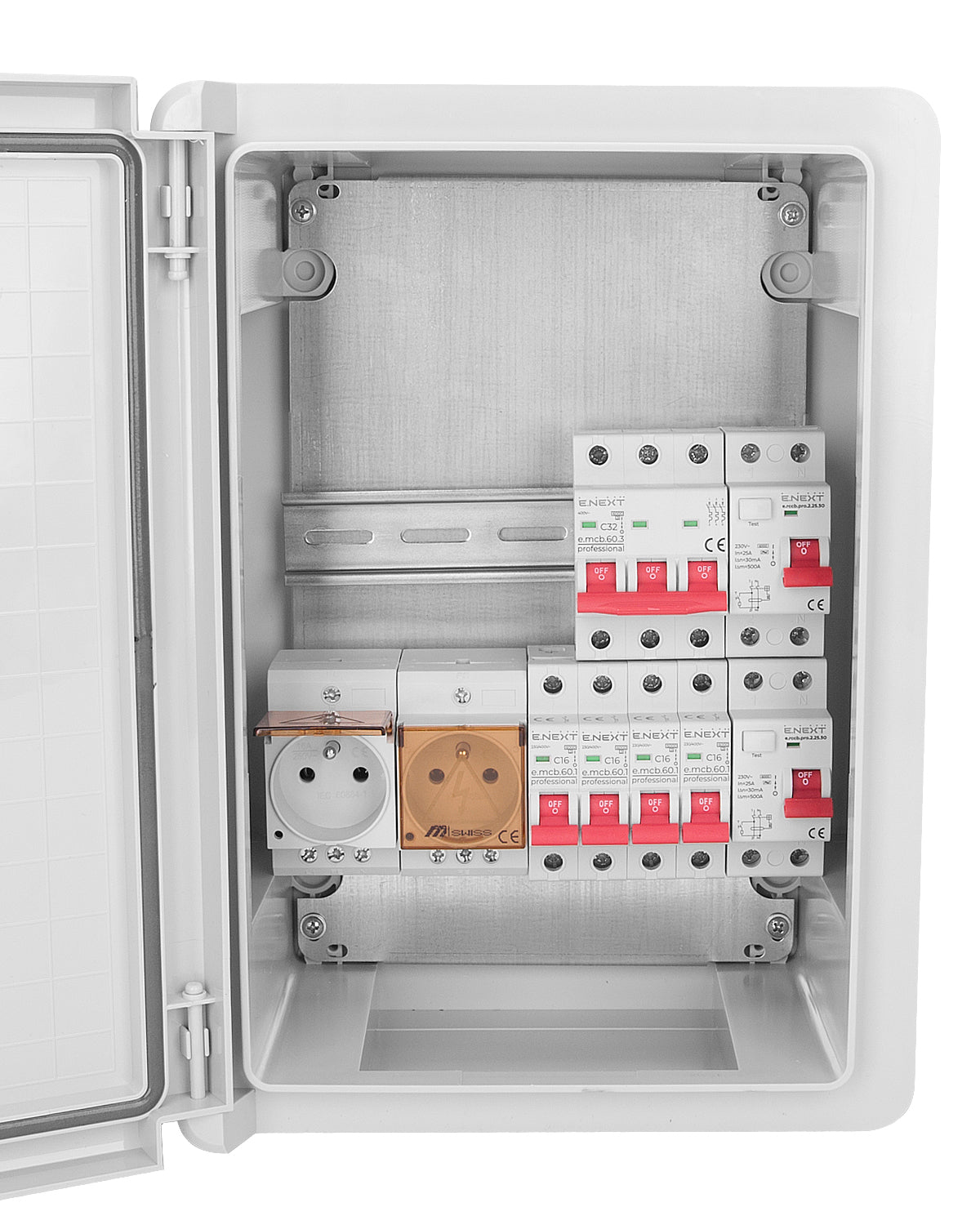

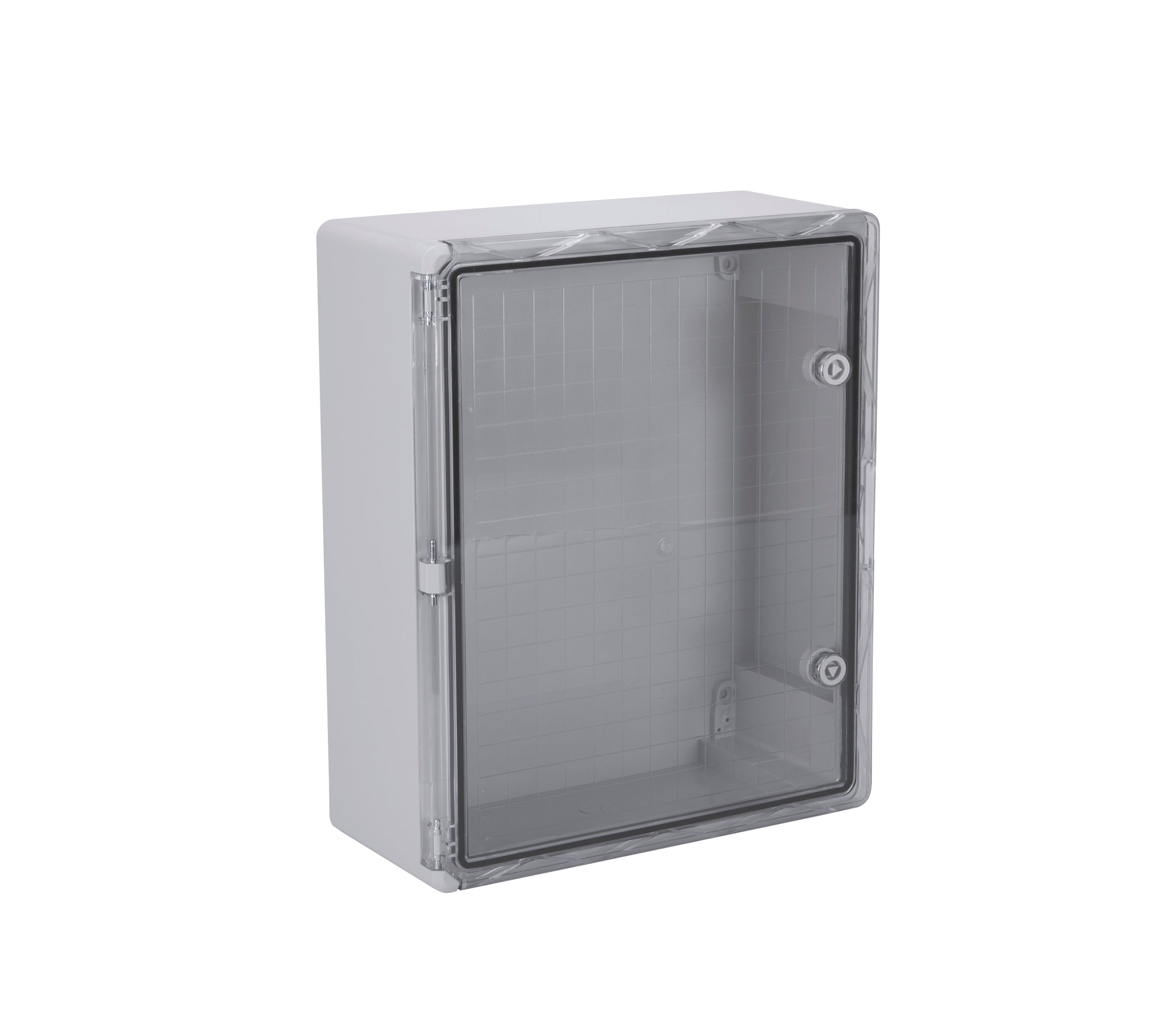

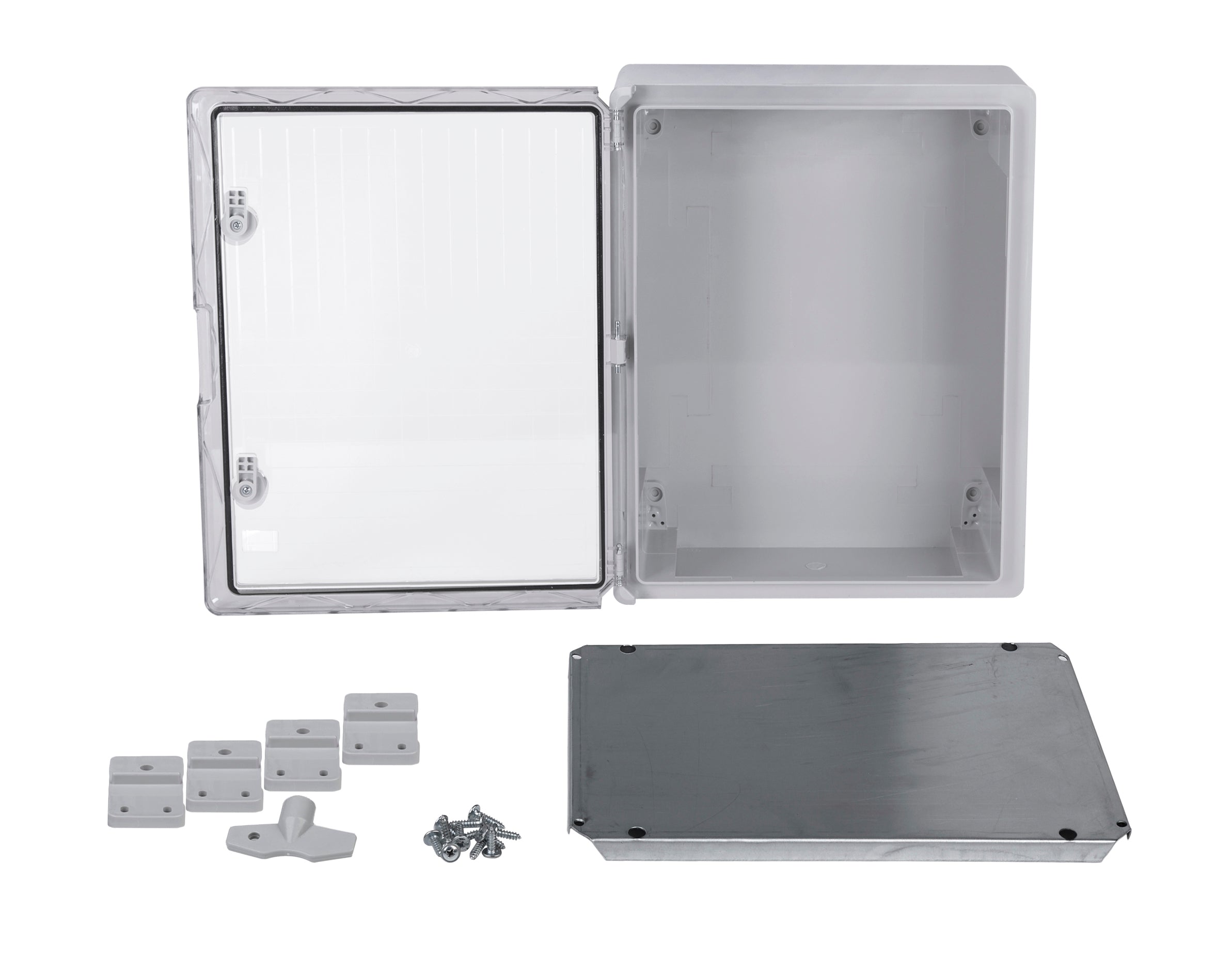

The electrical distribution box is designed for electrical installations. Its high protection rating and gasket allow the box to be used in outdoor conditions. The galvanized steel mounting plate allows the equipment to be mounted without compromising the cabinet's structure. The mounting kit is included.
Specification:

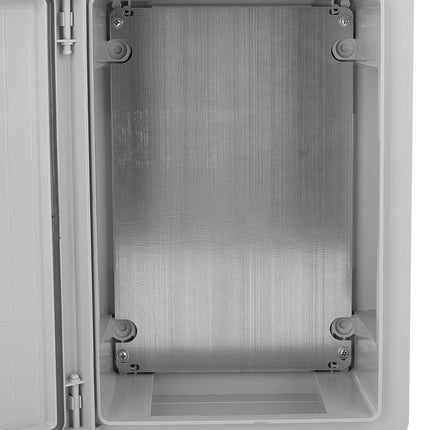

- Mounting plate: Full galvanized steel 1 mm

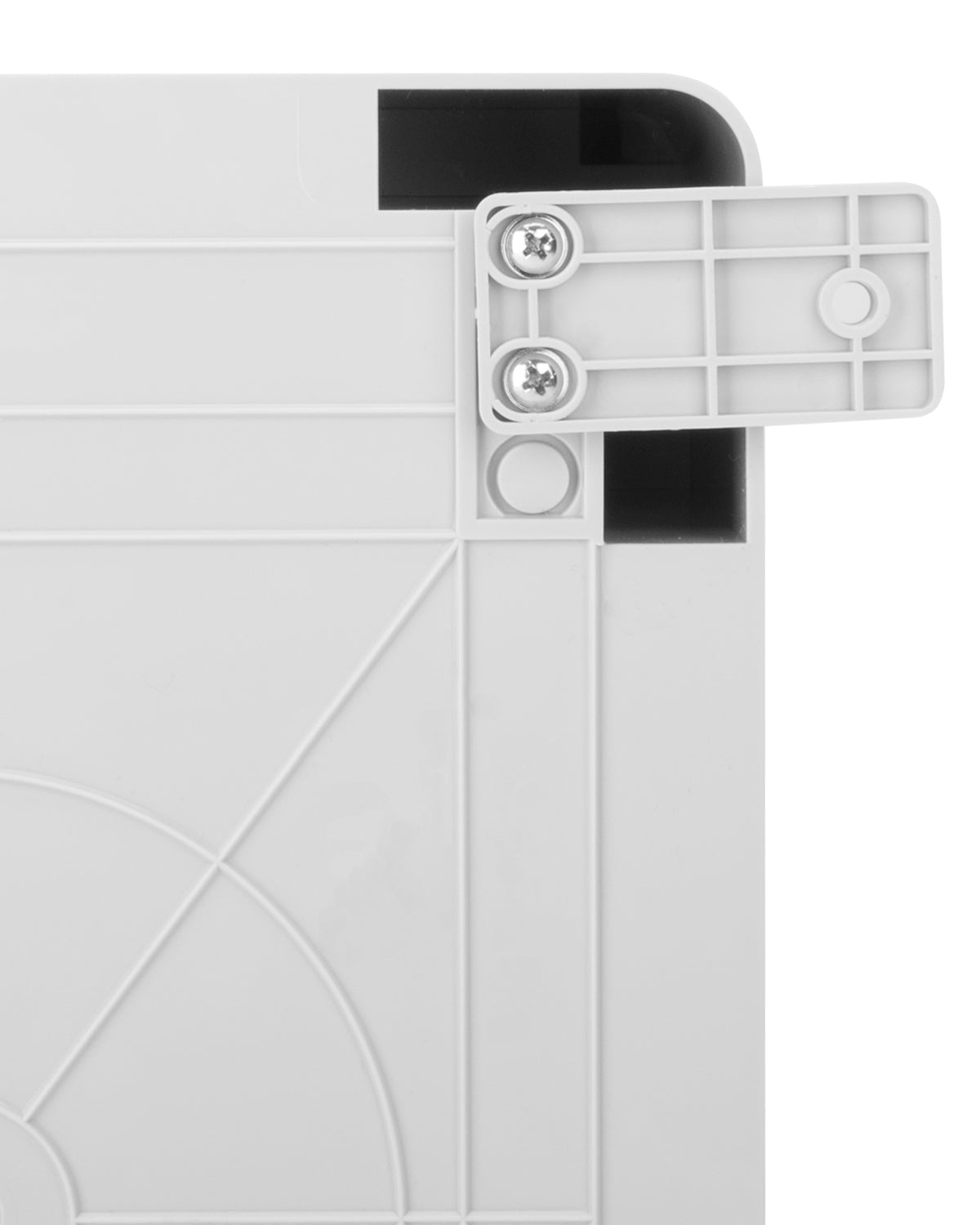

- Set of self-tapping screws for mounting the plate and brackets
- Two triangular locks
- Key for the triangular lock: 10 mm
- Cable glands

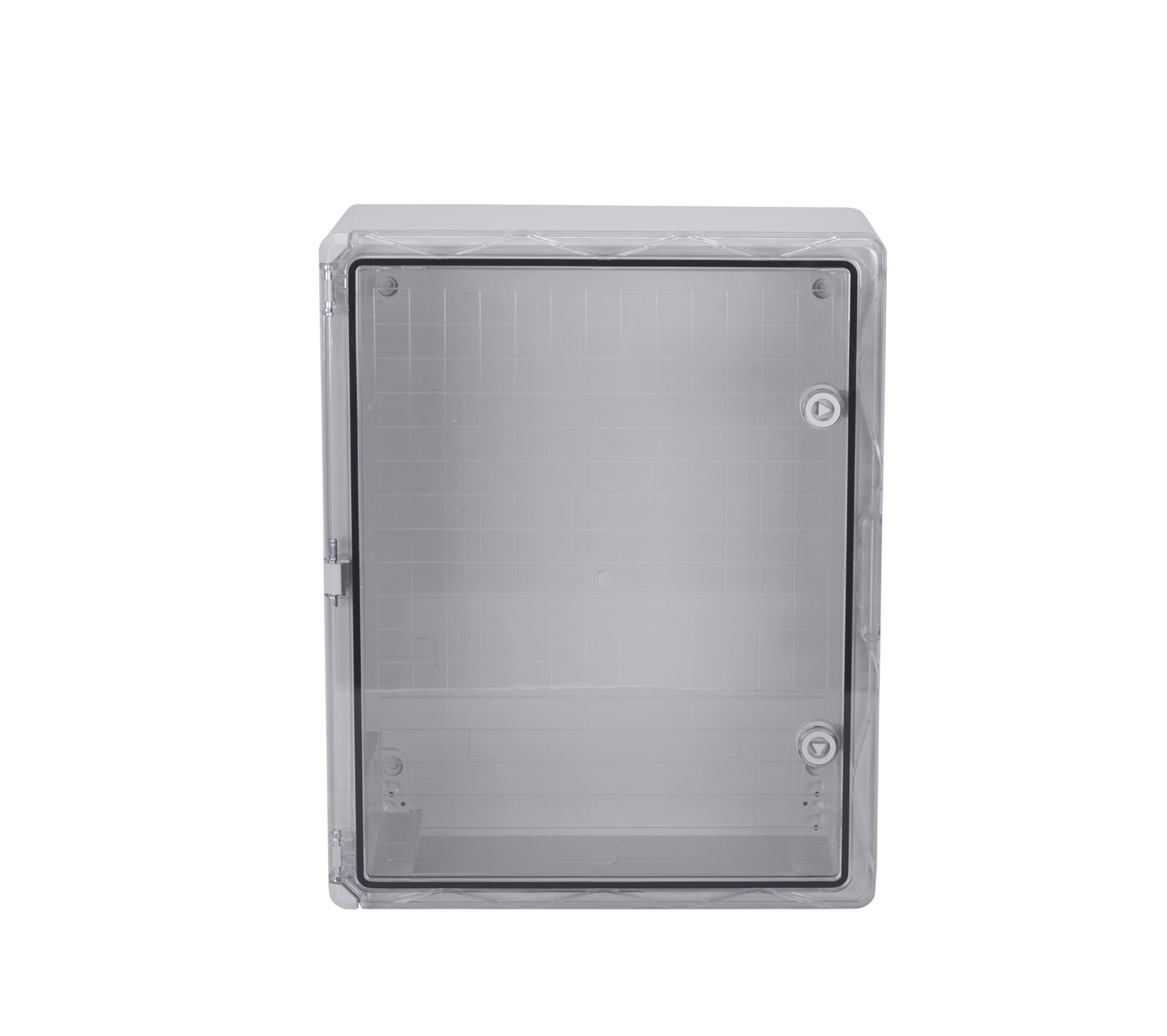

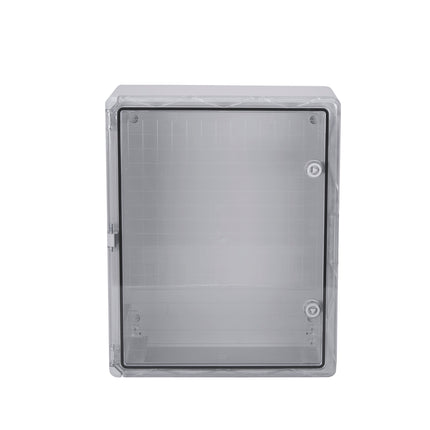

- Transparent doors

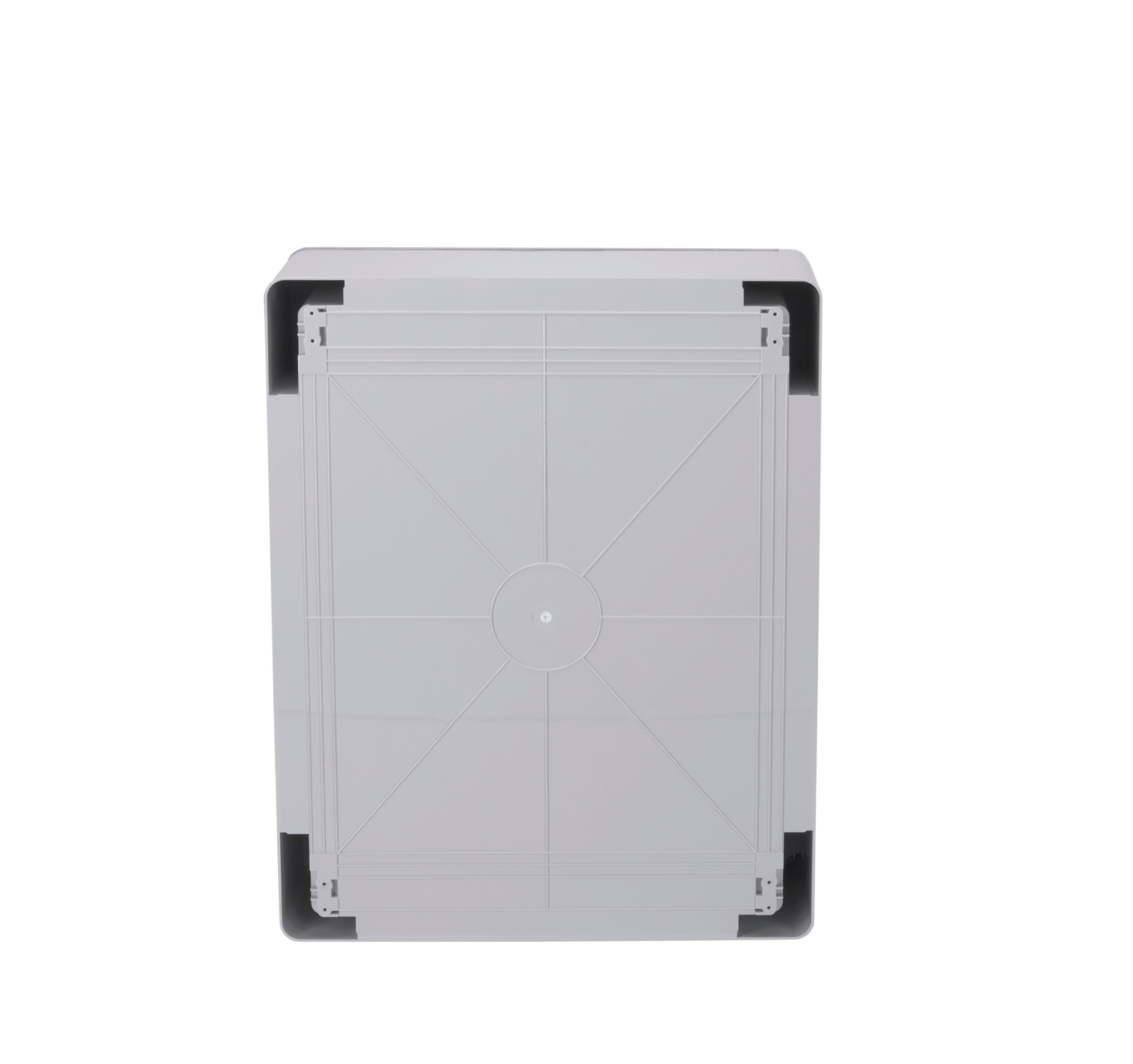

- Surface mounting
- Weight: 4.90 kg
- Material: ABS
- Protection rating:
- IP65 (protection against access to hazardous parts with a wire and dust-tight protection, protection against water jets (12.5 l/min) from any direction)
- Operating temperature range: -25°C to 60°C
- Fire resistance: Up to 650°C
- Operating voltage: Up to 690 V
- Rated current: Up to 800 A
- Door opening angle: 180°
- Color: Gray
- Option to install a patent lock with a key
External Dimensions:
- Height: 500 mm
- Width: 400 mm

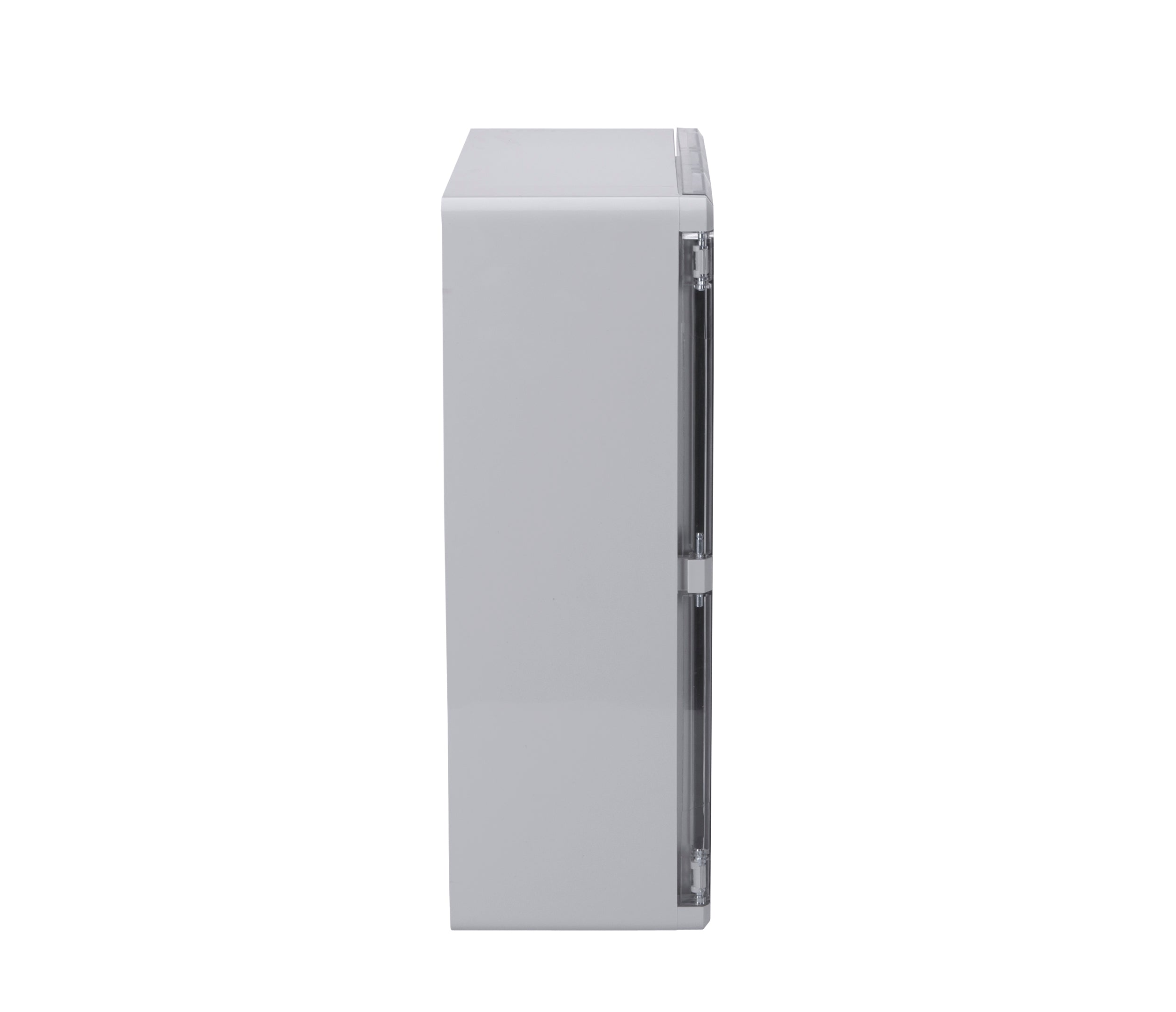

- Depth: 175 mm
Internal Dimensions:
- Height: 462 mm
- Width: 355 mm
- Depth: 161 mm
We also offer other sizes of mounting cabinets:
- 20x30x13
- 25x35x15
- 30x40x17
- 40x50x18
