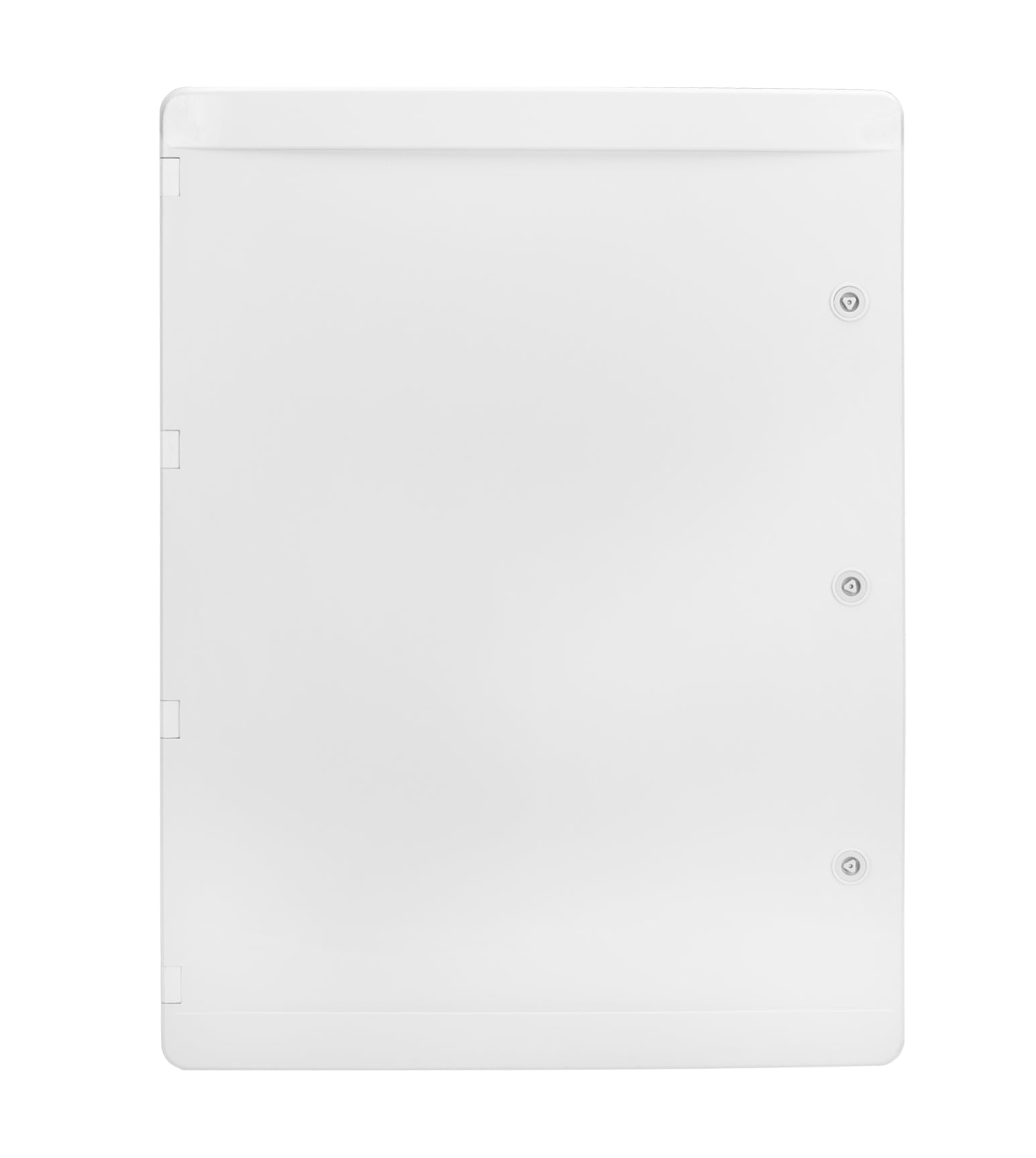

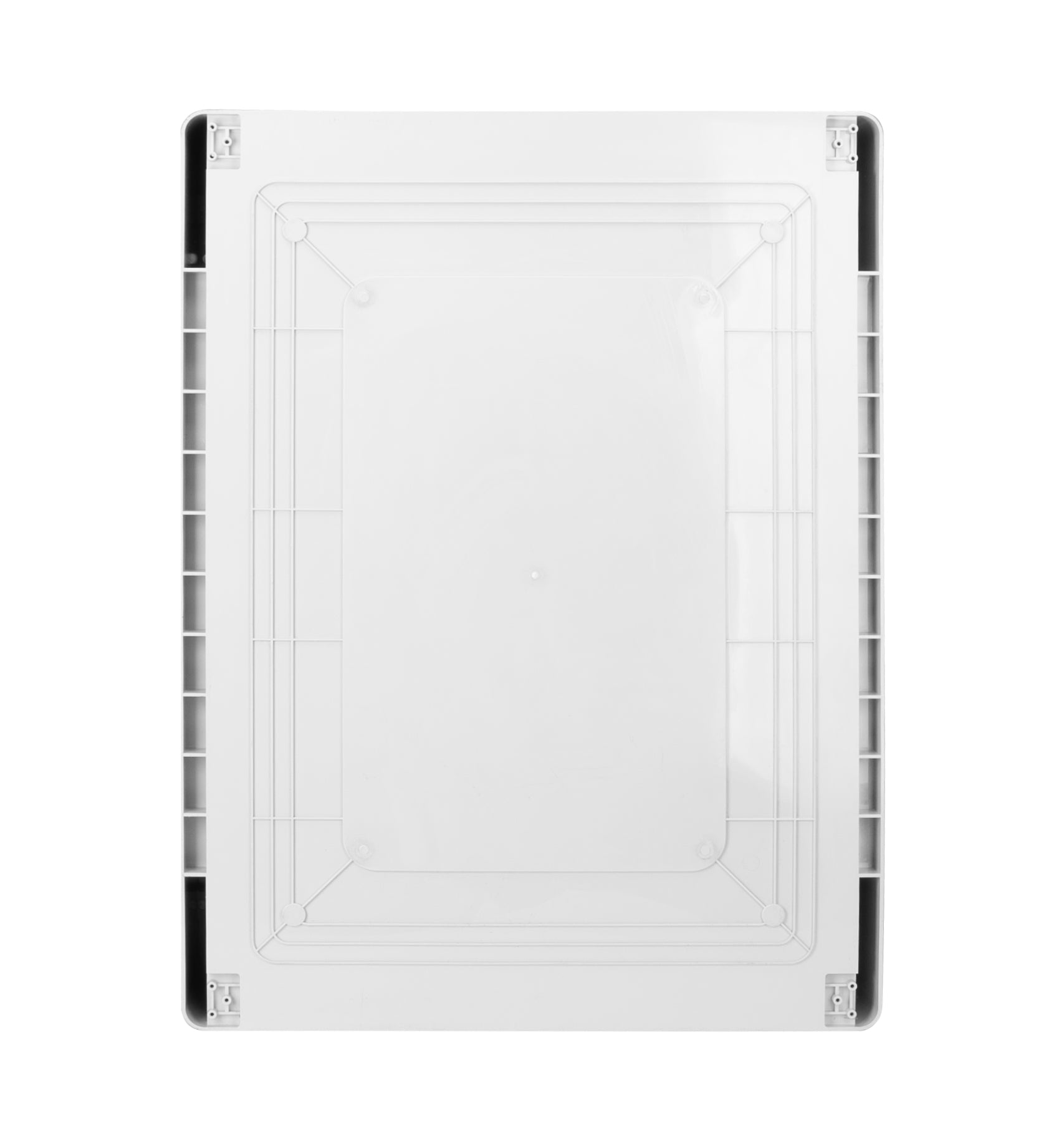

Description

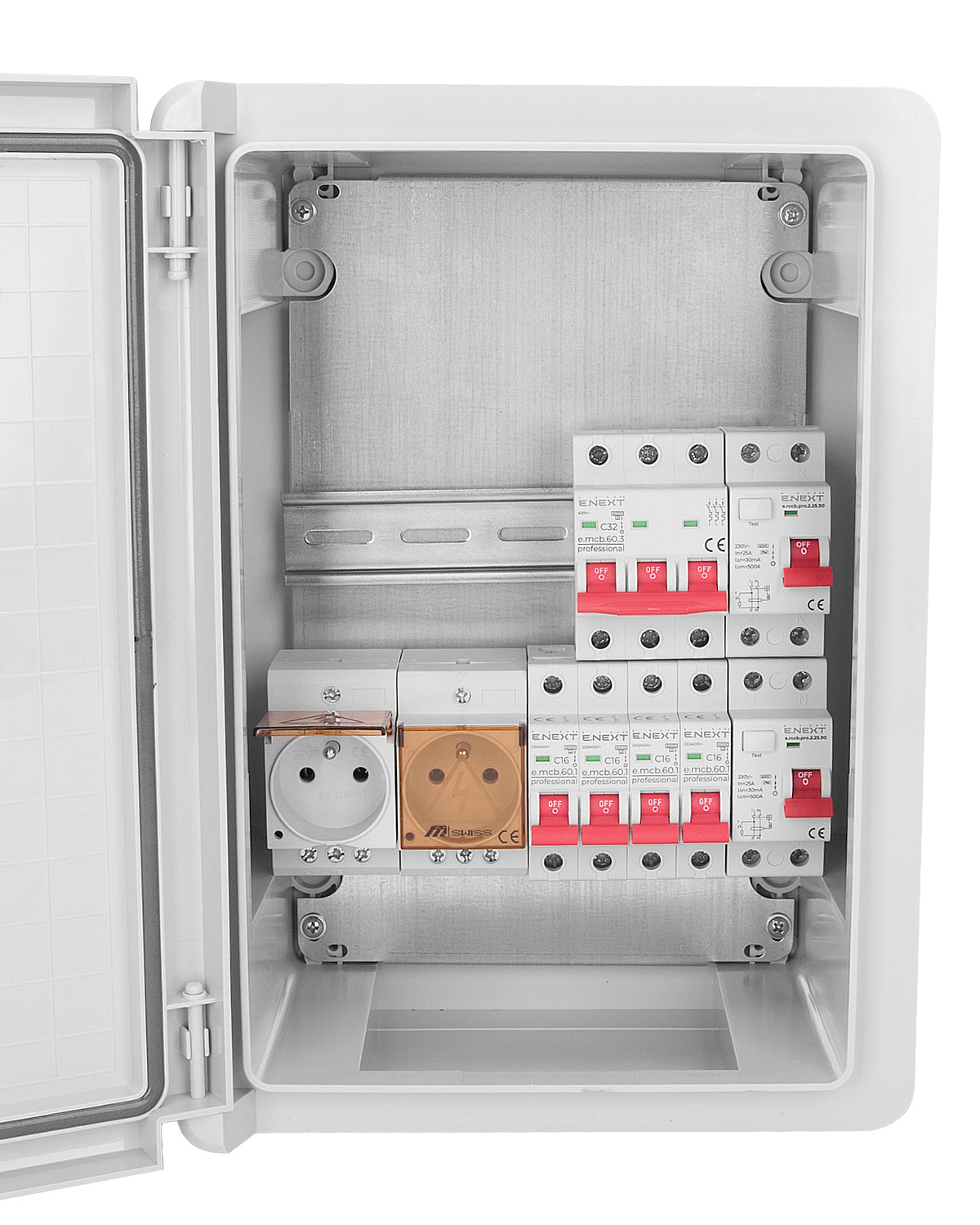

This electrical distribution cabinet is intended for electrical installations. Its high protection rating and gasket allow for outdoor use. The galvanized steel mounting plate enables the installation of equipment without compromising the cabinet's structure. A mounting kit is included.
Specifications:

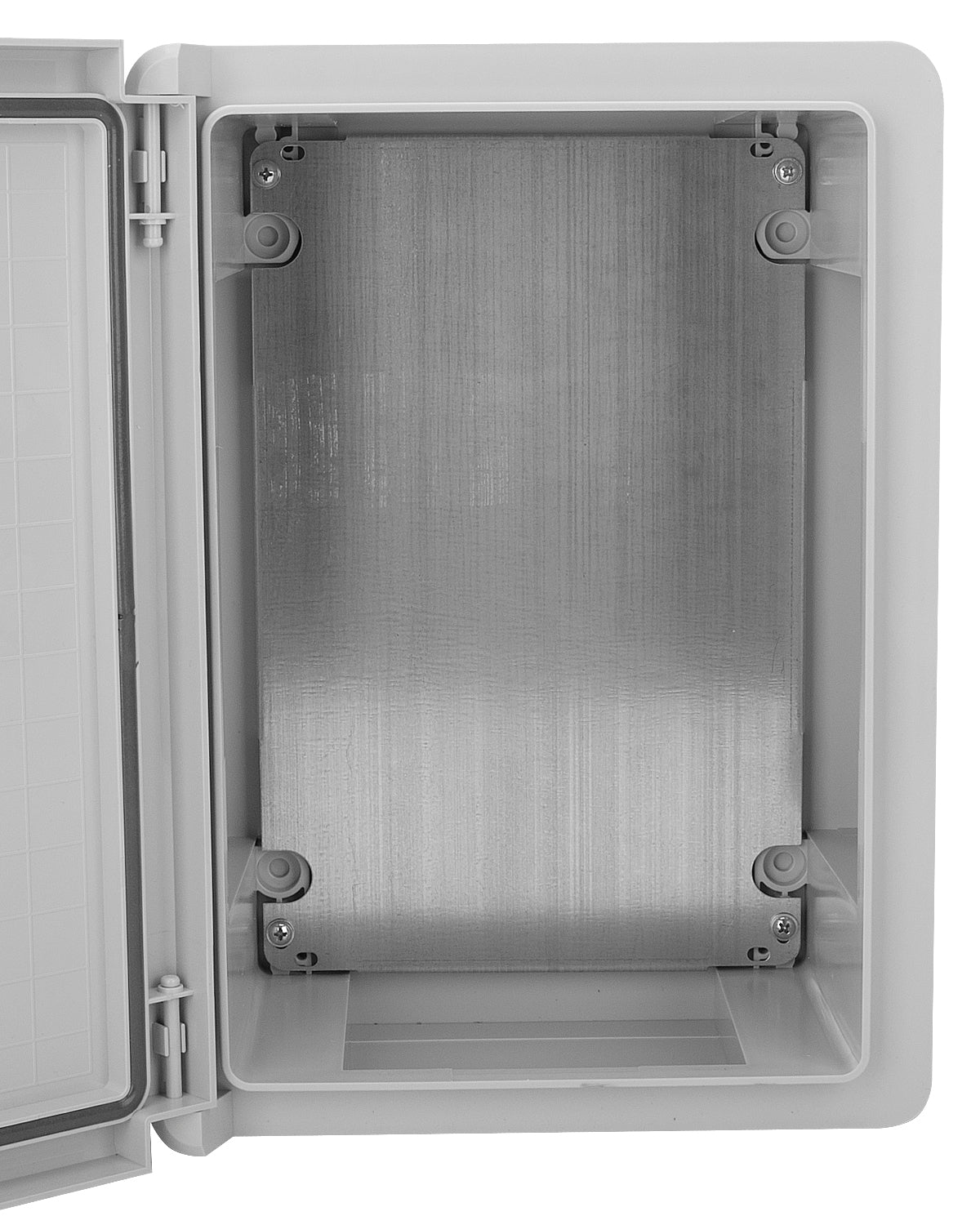

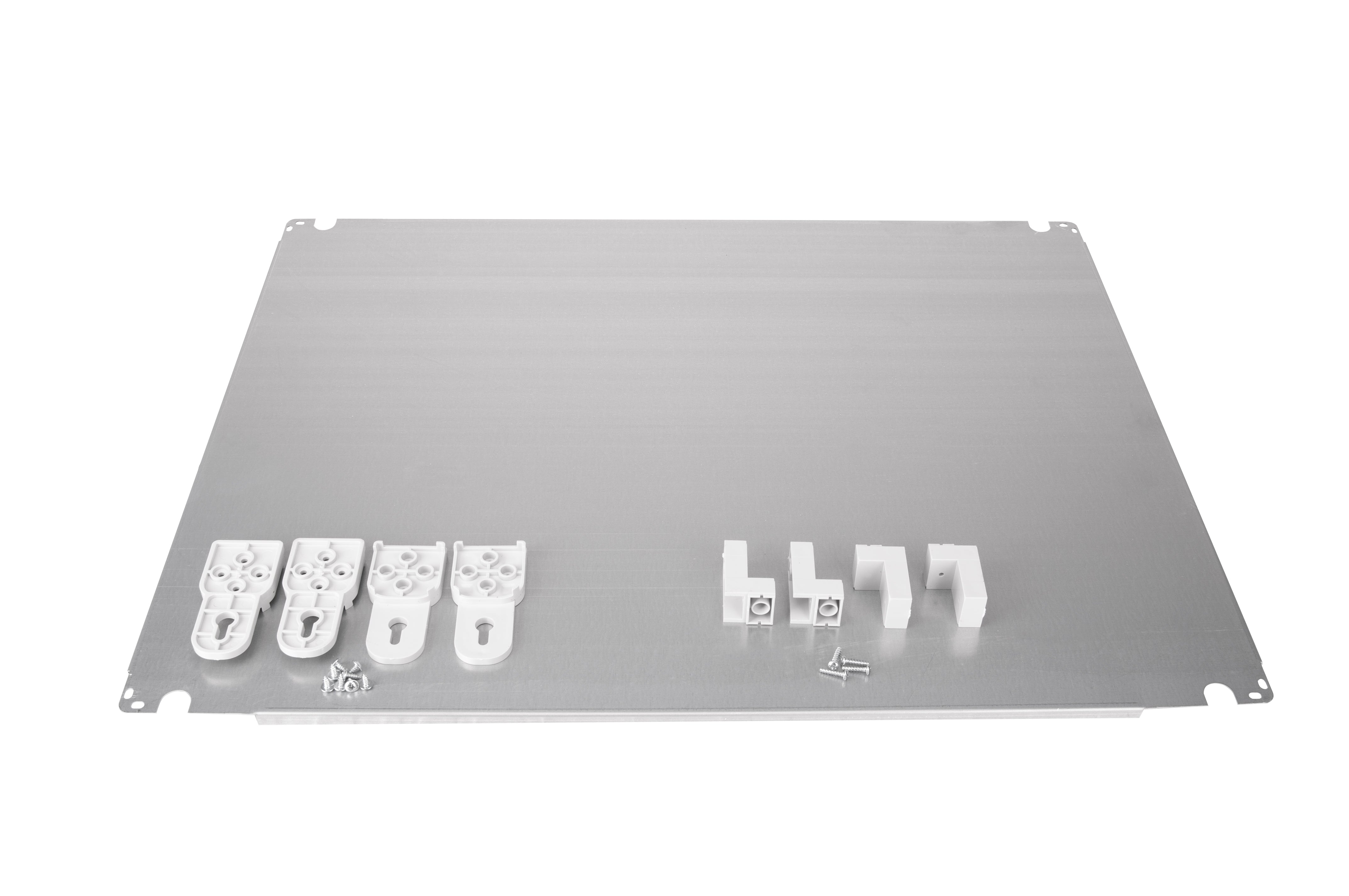

- Full mounting plate made of 1 mm galvanized steel

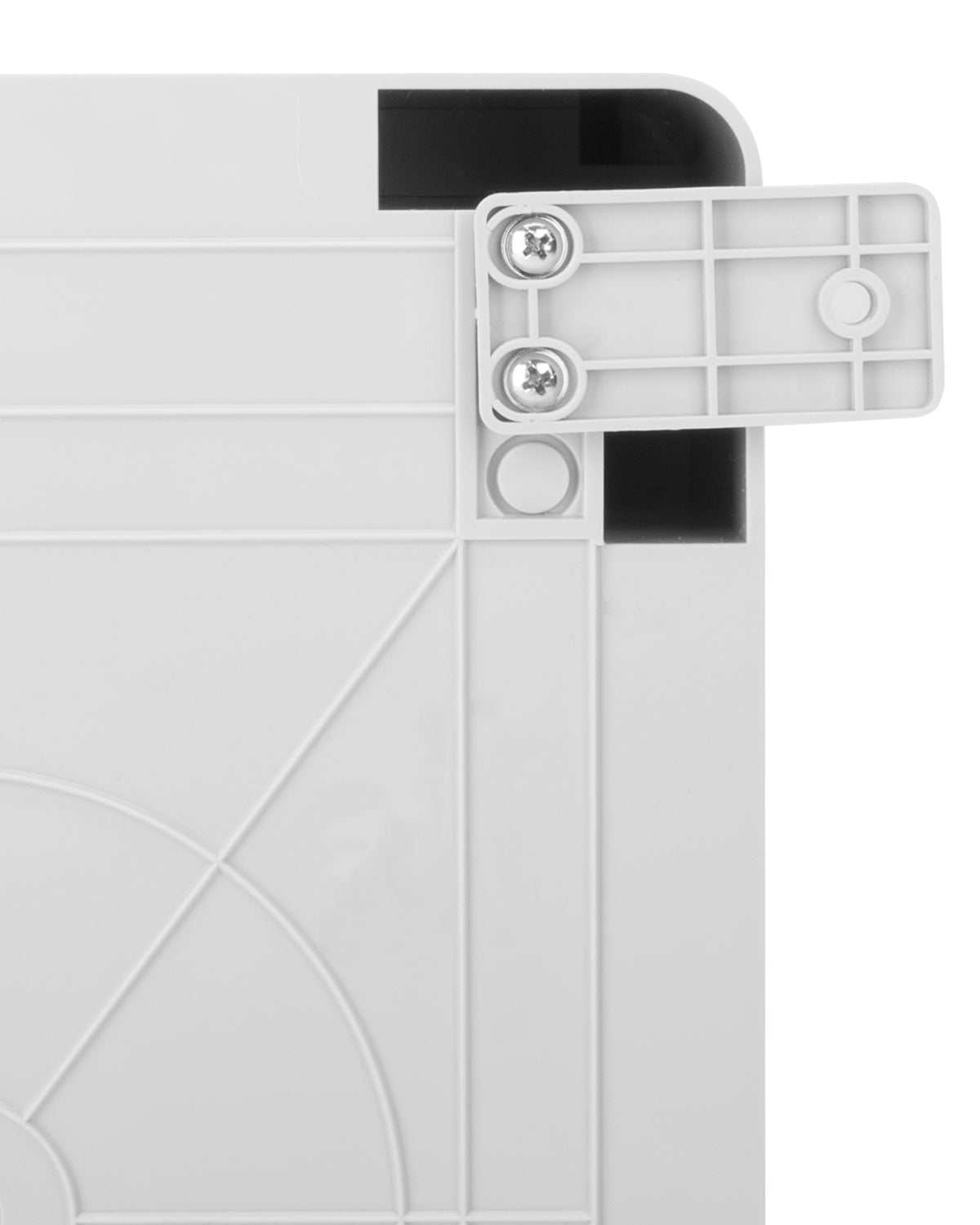

- Set of self-tapping screws for mounting the plate and brackets
- Two triangle locks
- Triangle lock key (10 mm)
- Material: ABS
- Protection rating: IP65 (protection against access to hazardous parts with a wire, dust-tight protection, protection against water jets (12.5 l/min) from any direction)
- Impact protection rating: IK10 (resistance to impacts with an energy of 20 J)
- UV radiation protection
- Full protection against alkalis and acids
- Moisture resistance
- Operating temperature range: -40°C to 70°C
- Operating at a nominal voltage up to 690 V
- Operating at a maximum current up to 800 A

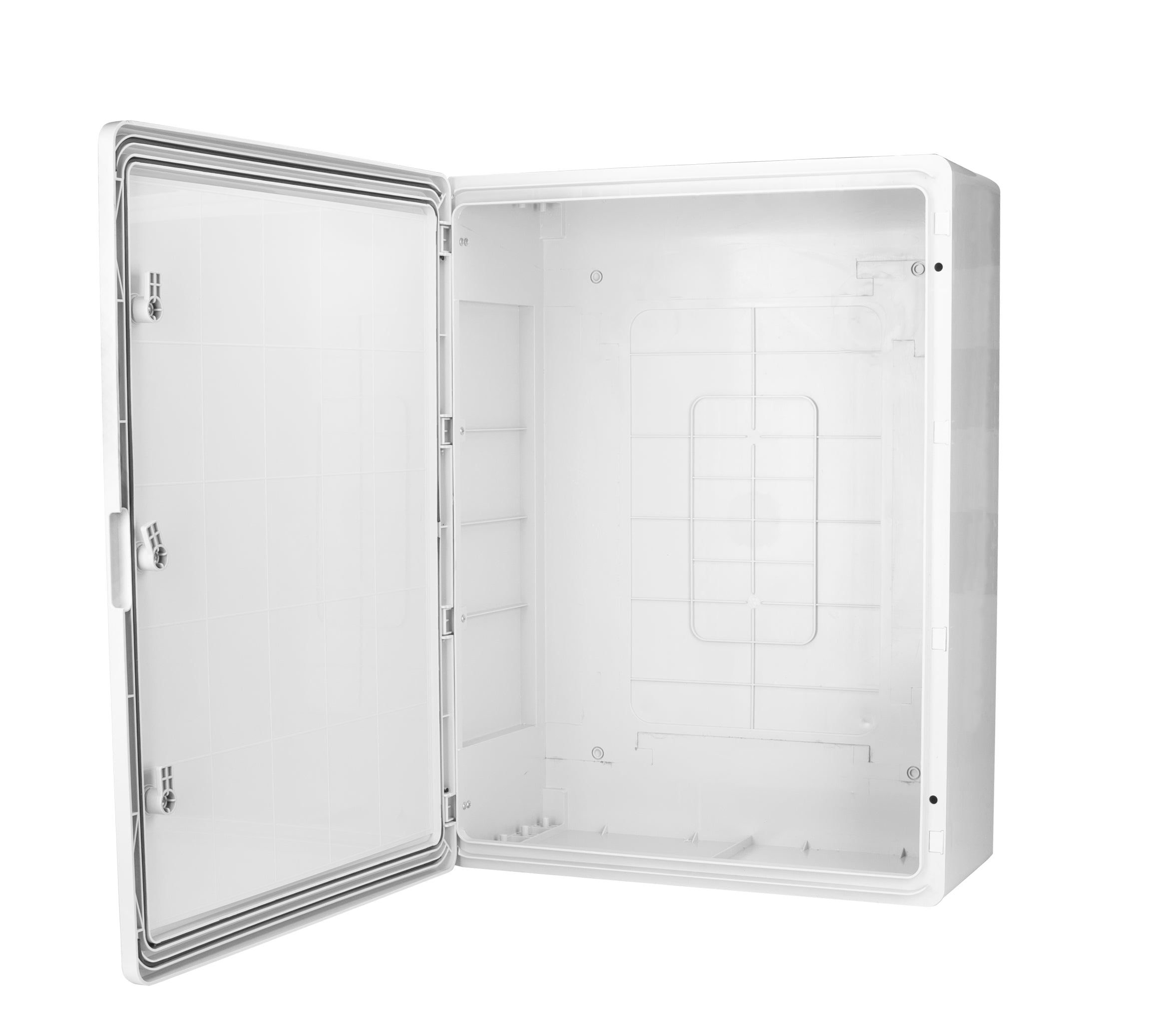

- Door opening angle: 180°
- Color: gray (RAL 7035)
- Option to install a keyed lock
External dimensions:
- Height: 800 mm
- Width: 600 mm
- Depth: 280 mm
Internal dimensions:
- Height: 730 mm
- Width: 550 mm
- Depth: 220 mm
We also offer other sizes of mounting cabinets:
- 20x30x13
- 25x35x15
- 30x40x17
- 30x40x22
- 35x50x19
- 40x50x18
- 40x50x24
- 40x60x20
- 60x80x28
