Description

Description

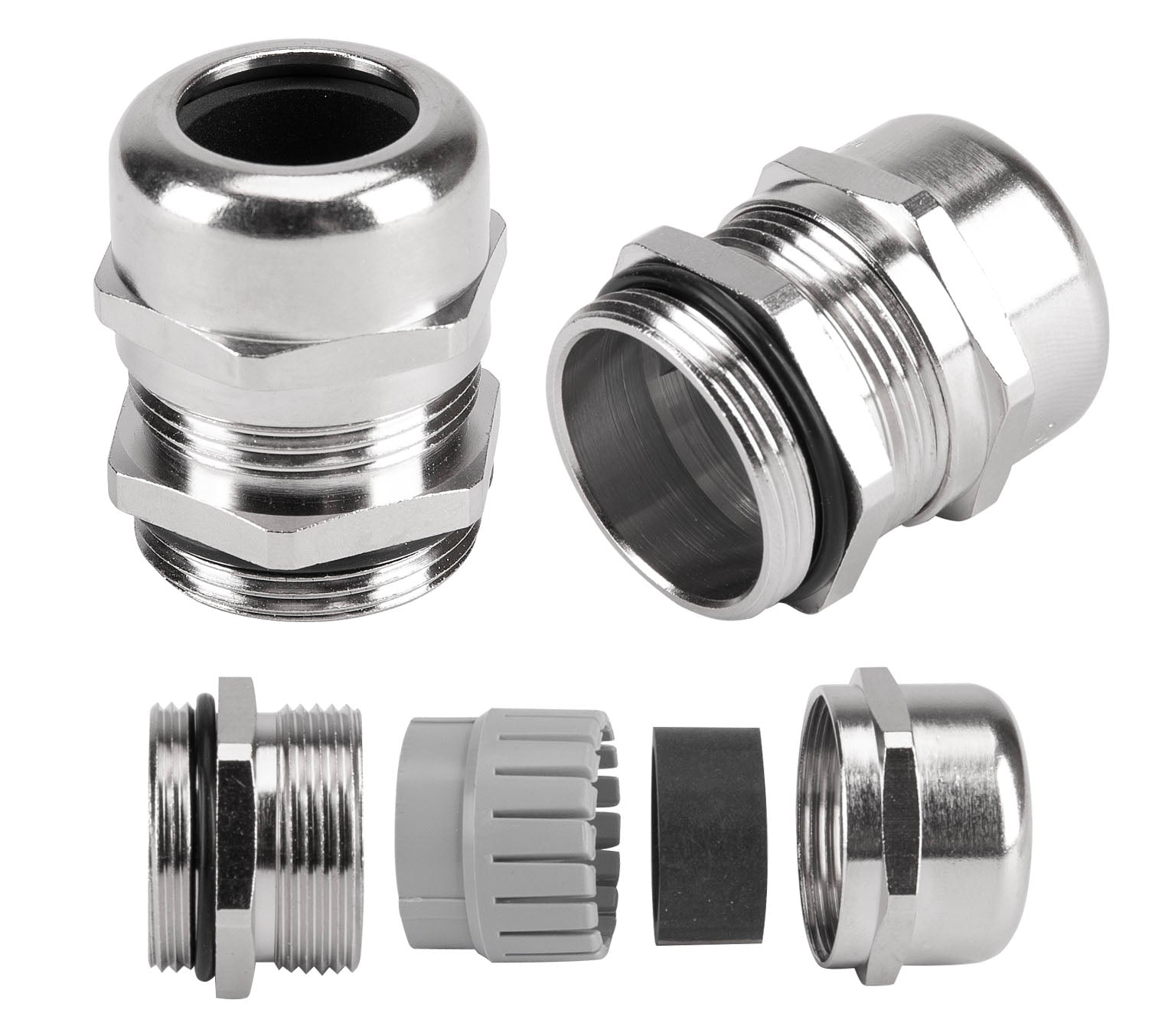

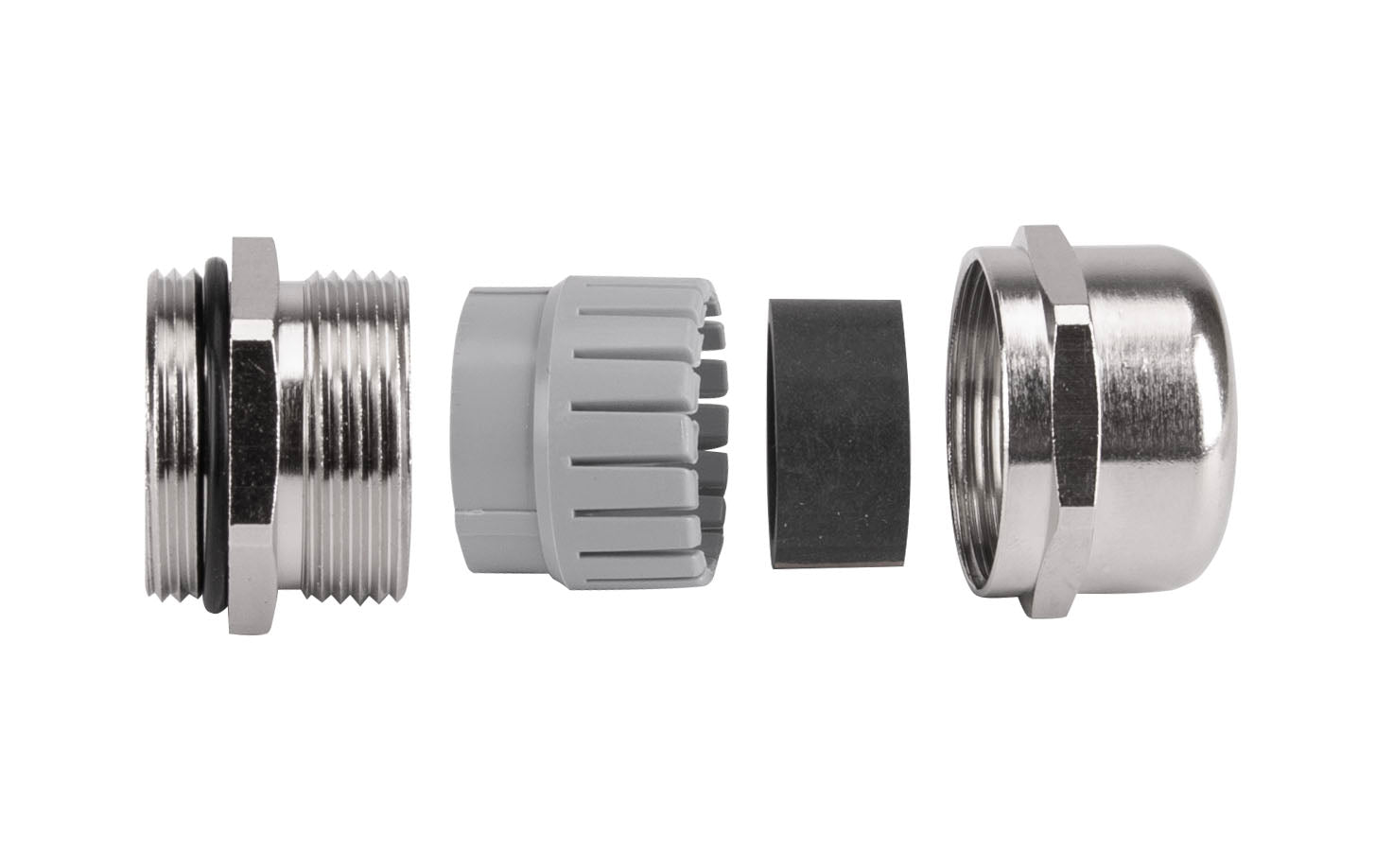

Cable glands secure and seal cables and wires passing through the enclosures of electrical, data communication, or telecommunication devices. They protect against harmful factors such as water and various types of contaminants. The construction of the glands prevents cables from twisting inside and protects against mechanical damage, such as tearing. The cable gland includes a CR sealing ring and an NBR O-ring.

Specification:

  • Nominal thread size: PG29
  • Brand: SKINTOP
  • Manufacturer code: 52015760
  • Min. clamping diameter: 16 mm
  • Max. clamping diameter: 25 mm
  • Wrench size SW: 40 mm
  • Total length: 48 mm
  • Thread length: 8 mm
  • Protection rating: IP68 - 10 bar
  • Material: Nickel-plated brass
  • Sealing through NBR O-Ring
  • Operating temperature: from -25°C to 100°C

Application range:

  • Areas with special requirements for mechanical and chemical stability
  • Chemical industry
  • Measurement, control, and regulation
  • Machine and industrial equipment construction
  • Industrial installations construction

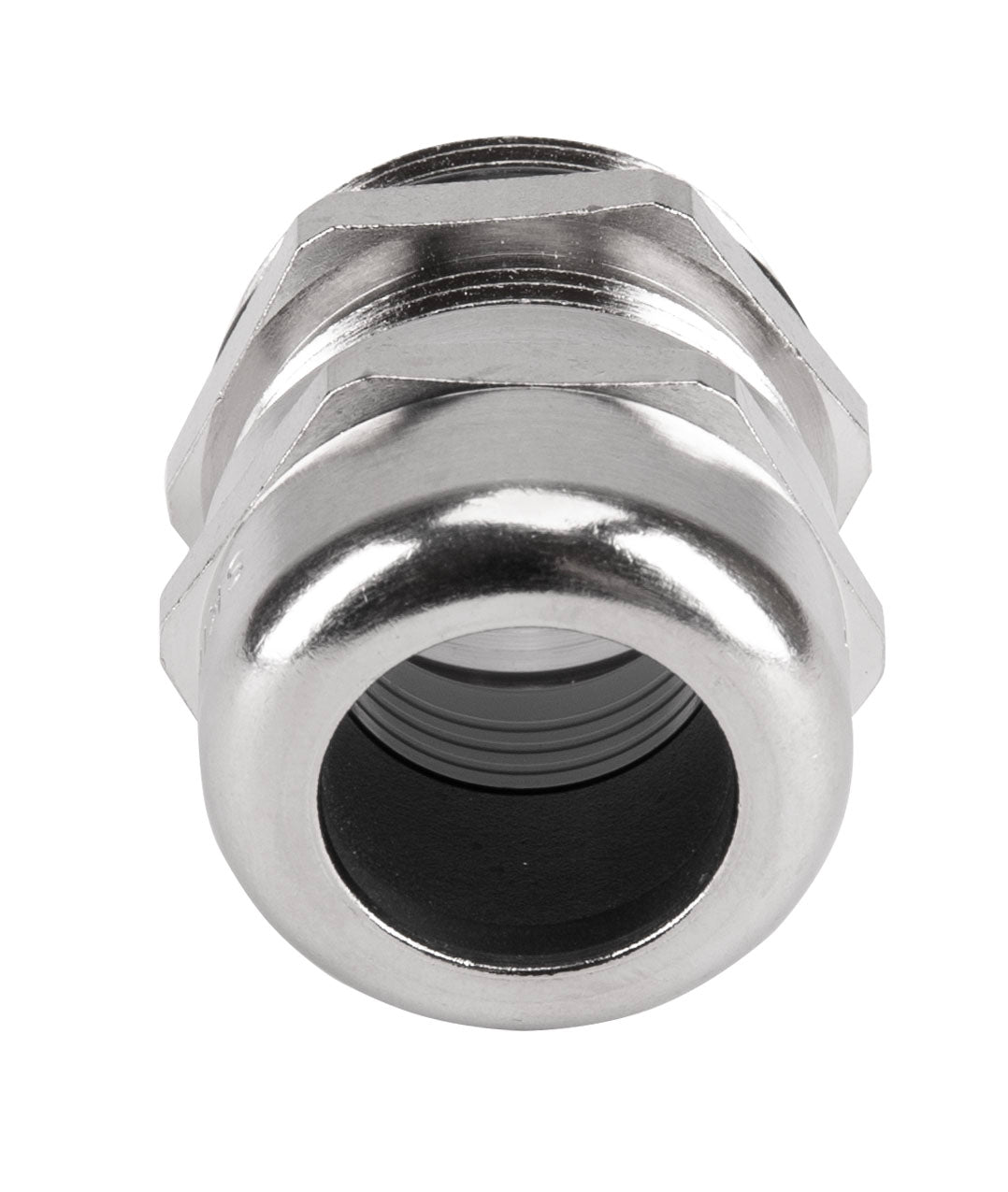

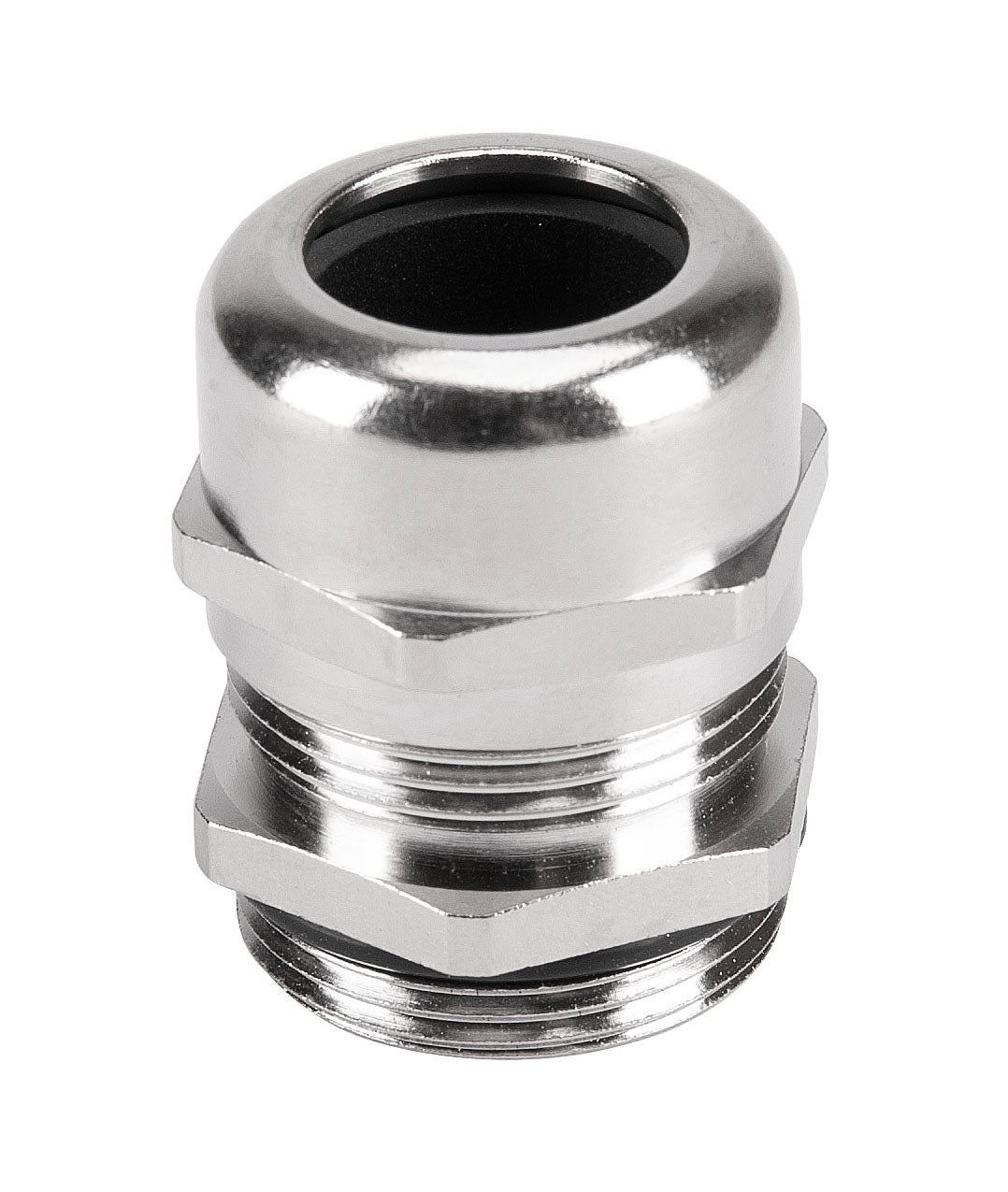

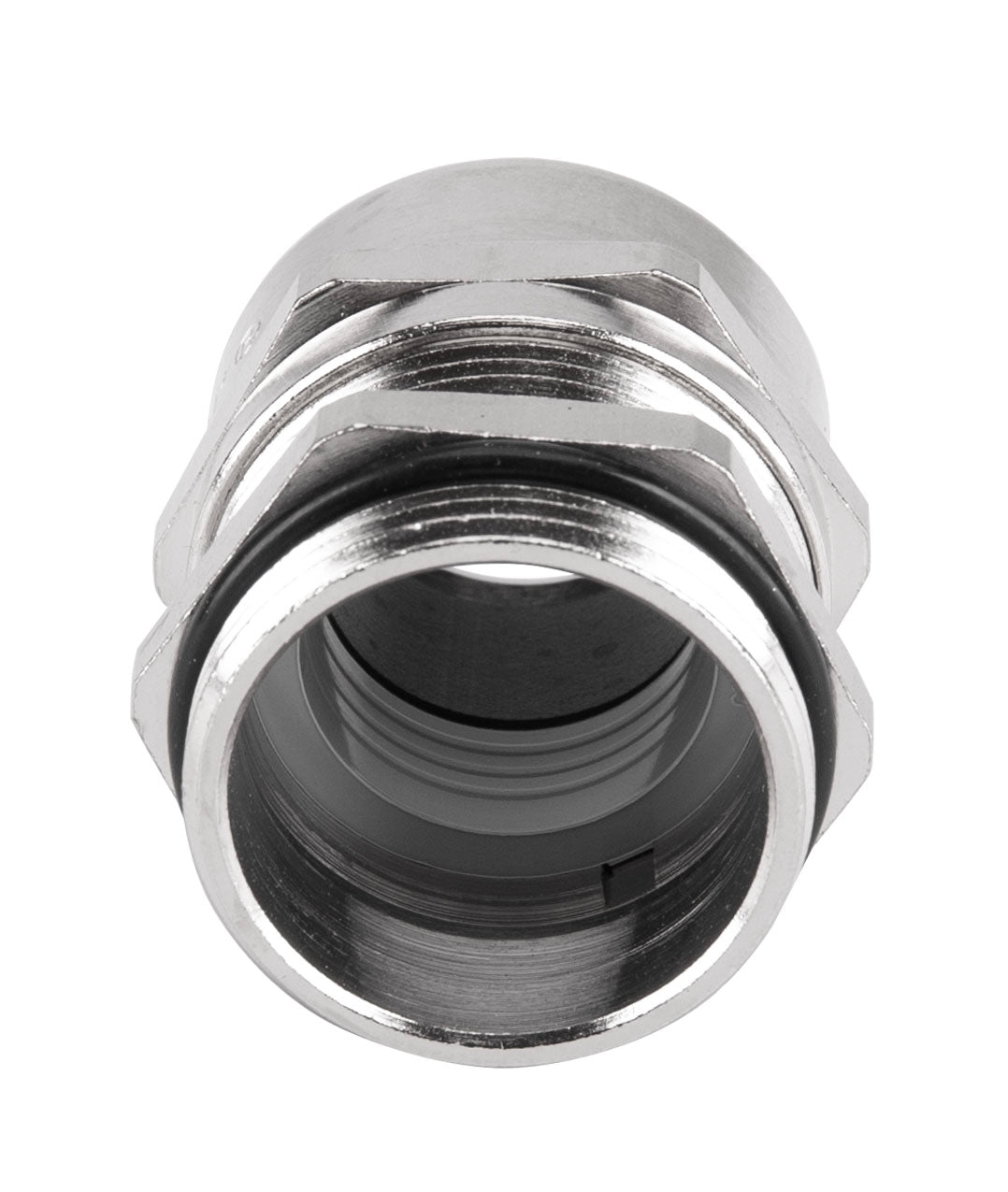

Brass Cable Gland, MS PG29 IP68 SKINTOP 52015760

Product form

63,00 zł (netto: 51,22 zł)

Unavailable

Notify me of availability

    Description

    Description

    Cable glands secure and seal cables and wires passing through the enclosures of electrical, data communication, or telecommunication devices. They protect against harmful factors such as water and various types of contaminants. The construction of the glands prevents cables from twisting inside and protects against mechanical damage, such as tearing. The cable gland includes a CR sealing ring and an NBR O-ring.

    Specification:

    • Nominal thread size: PG29
    • Brand: SKINTOP
    • Manufacturer code: 52015760
    • Min. clamping diameter: 16 mm
    • Max. clamping diameter: 25 mm
    • Wrench size SW: 40 mm
    • Total length: 48 mm
    • Thread length: 8 mm
    • Protection rating: IP68 - 10 bar
    • Material: Nickel-plated brass
    • Sealing through NBR O-Ring
    • Operating temperature: from -25°C to 100°C

    Application range:

    • Areas with special requirements for mechanical and chemical stability
    • Chemical industry
    • Measurement, control, and regulation
    • Machine and industrial equipment construction
    • Industrial installations construction
