Description
Cylinder lock intended for metal cabinets, lockers, safety, deposit, social, school cabinets, energy, telecommunications, and teleinformatics boxes.
Ensures security against unauthorized access. Includes two keys.
Specifications:
- Different lock code in the MASTERS system
- Model: 1ZC-0663
- Chrome finish
- Mounted with a nut
- Single-point locking
- Key rotation: 90° to the right (door hinges should be on the right side) - Type A
- Key removable only in the locked position

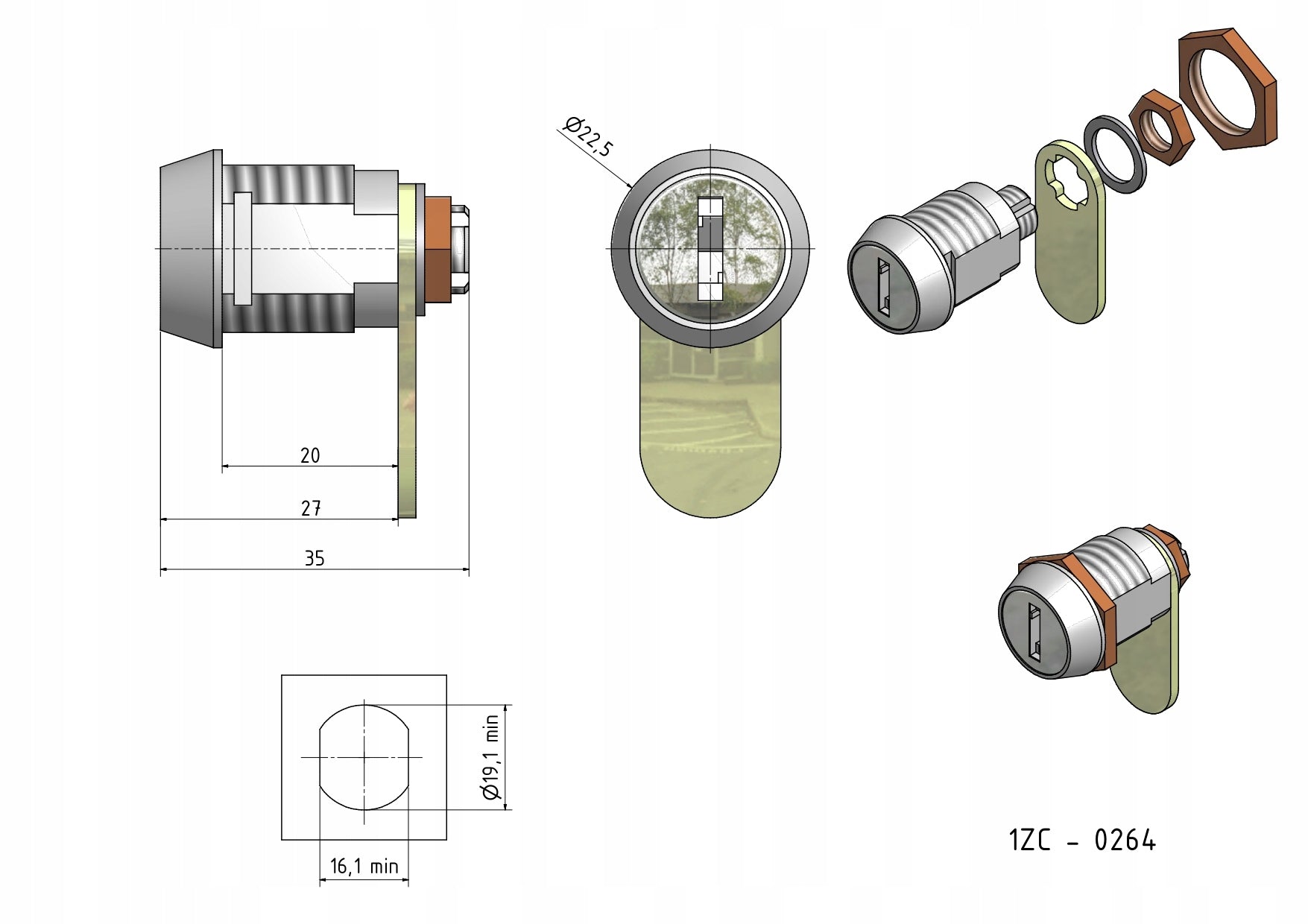

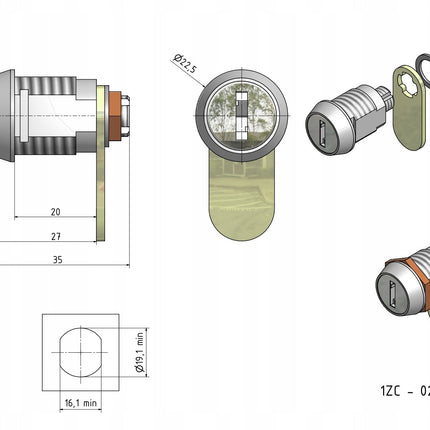

Lock dimensions:
- Mounting hole: 16.1x19.1 mm
- Body length: 20 mm
- Lock diameter: 22.5 mm
- Latch length: 30 mm
How to measure a lock?
