Description

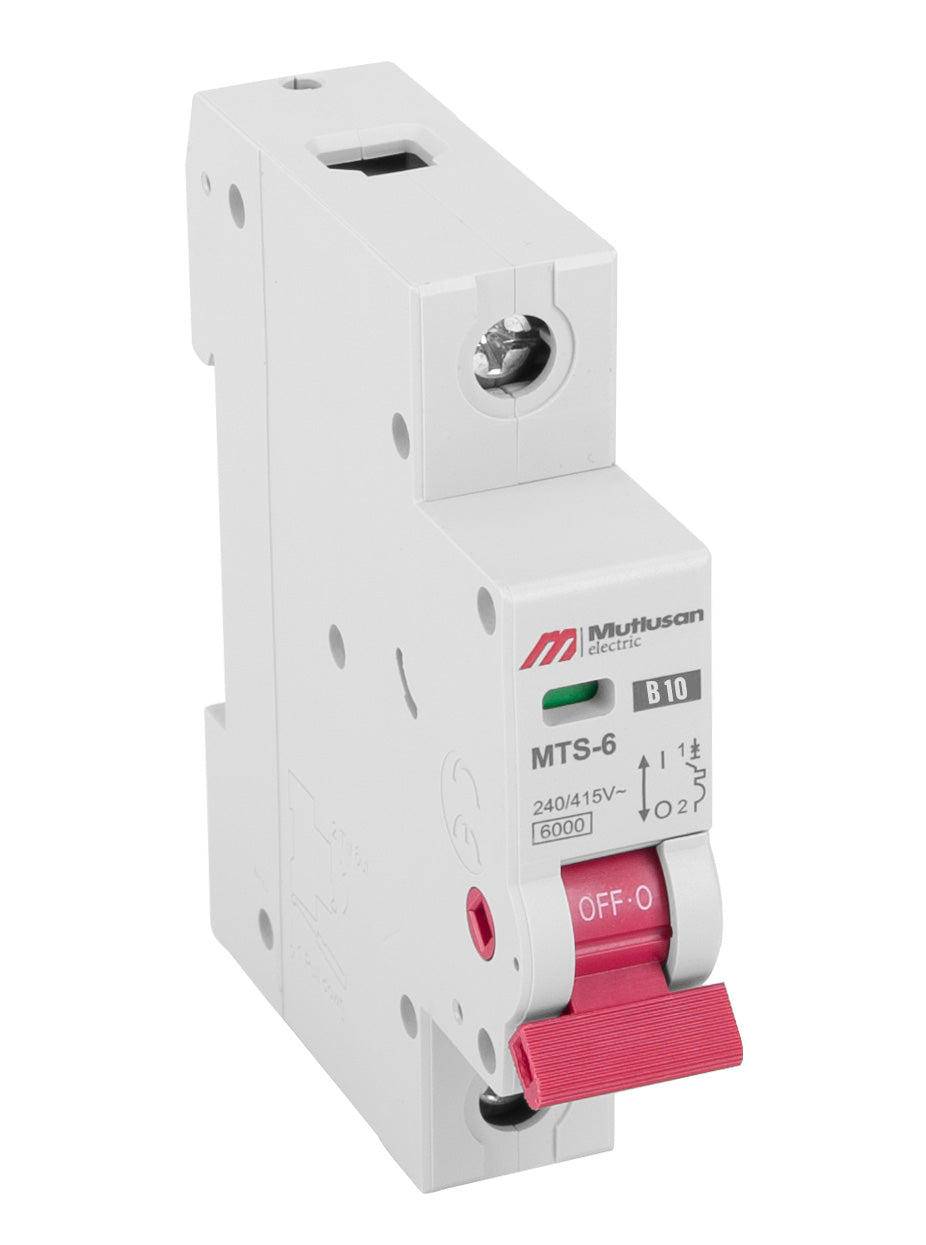

Single-pole (1P) circuit breaker is a basic protective component for electrical installations, designed to prevent damage caused by short circuits and overloads. Suitable for installation in residential, industrial, and commercial distribution boards.
Application:
Most commonly used in home installations, service premises, and small offices. Protects wiring and devices from the effects of electrical faults.
Technical Specifications:
- Number of poles: 1
- Tripping characteristic: B
- Rated current: 10A
- Protection class: IP20
- Max. conductor cross-section: 1 to 25 mm²
- Max. tightening torque: 2.5 Nm
- Mounting: standard DIN rail TH35 mm
- Operating temperature: -30°C to 60°C
- Rated operating voltage: AC 230 / 400V
- Breaking capacity: 6 kA
- Electrical lifespan: 5000 cycles
- Mechanical lifespan: 20000 cycles
- CE certified
