Description

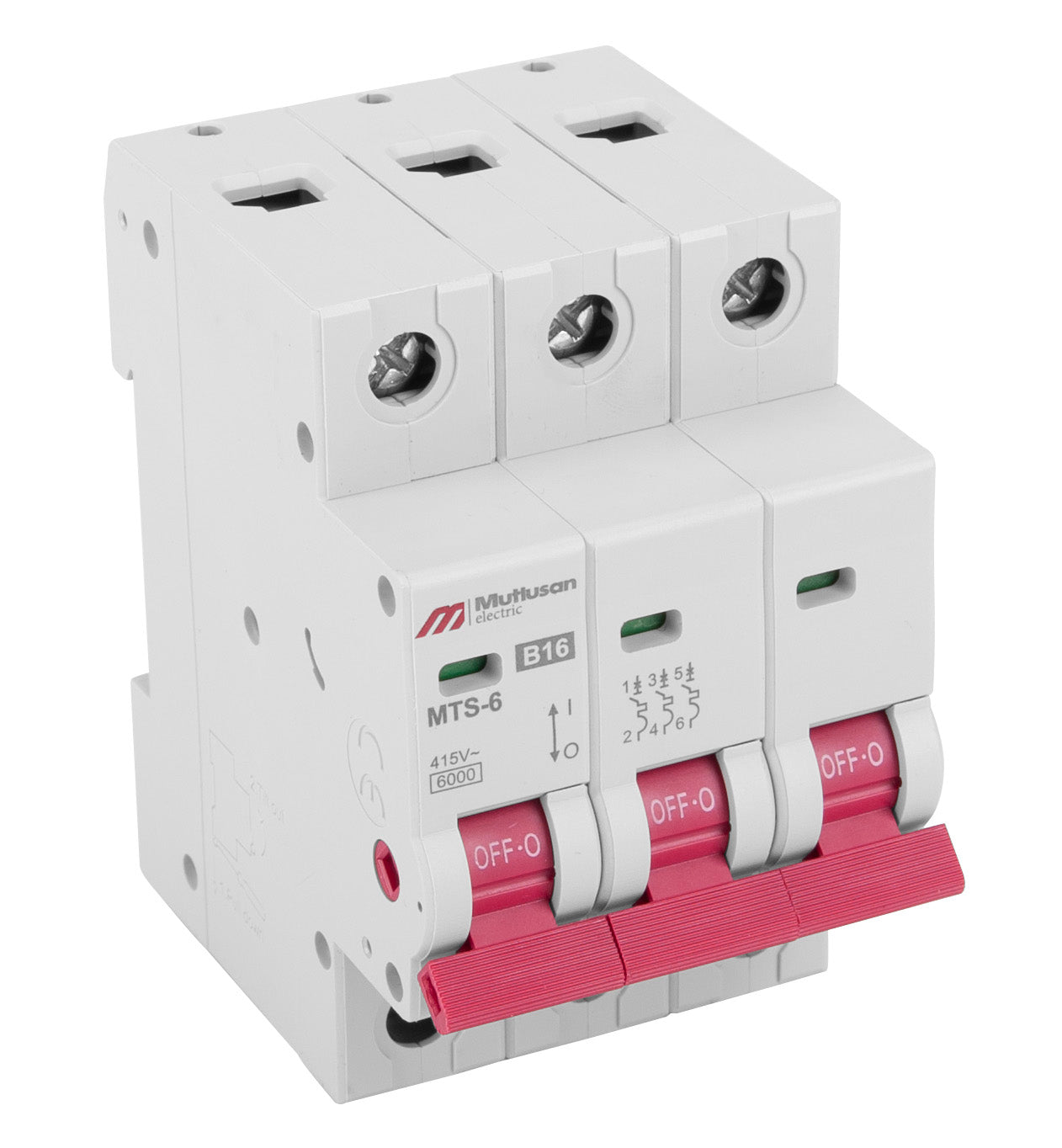

Three-pole (3P) circuit breaker is a robust protection device for electrical installations in three-phase systems. It protects against overloads and short circuits, ensuring safety in industrial, commercial, and residential installations.
Application:
Widely used in industrial installations, main distribution boards, and subpanels where simultaneous protection of all three phases is required.
Technical Specifications:
- Number of poles: 3
- Tripping characteristic: B
- Rated current: 16A
- Protection class: IP20
- Max. conductor cross-section: 1 to 25 mm²
- Max. tightening torque: 2.5 Nm
- Mounting: standard DIN rail TH35 mm
- Operating temperature: -30°C to 60°C
- Rated operating voltage: AC 230 / 400V
- Breaking capacity: 6 kA
- Electrical lifespan: 5000 cycles
- Mechanical lifespan: 20000 cycles
- CE certified
