Description

Description

Single-pole (1P) circuit breaker is a basic protective component for electrical installations, designed to prevent damage from short circuits and overloads. Intended for installation in residential, industrial, and commercial distribution panels.

Application:

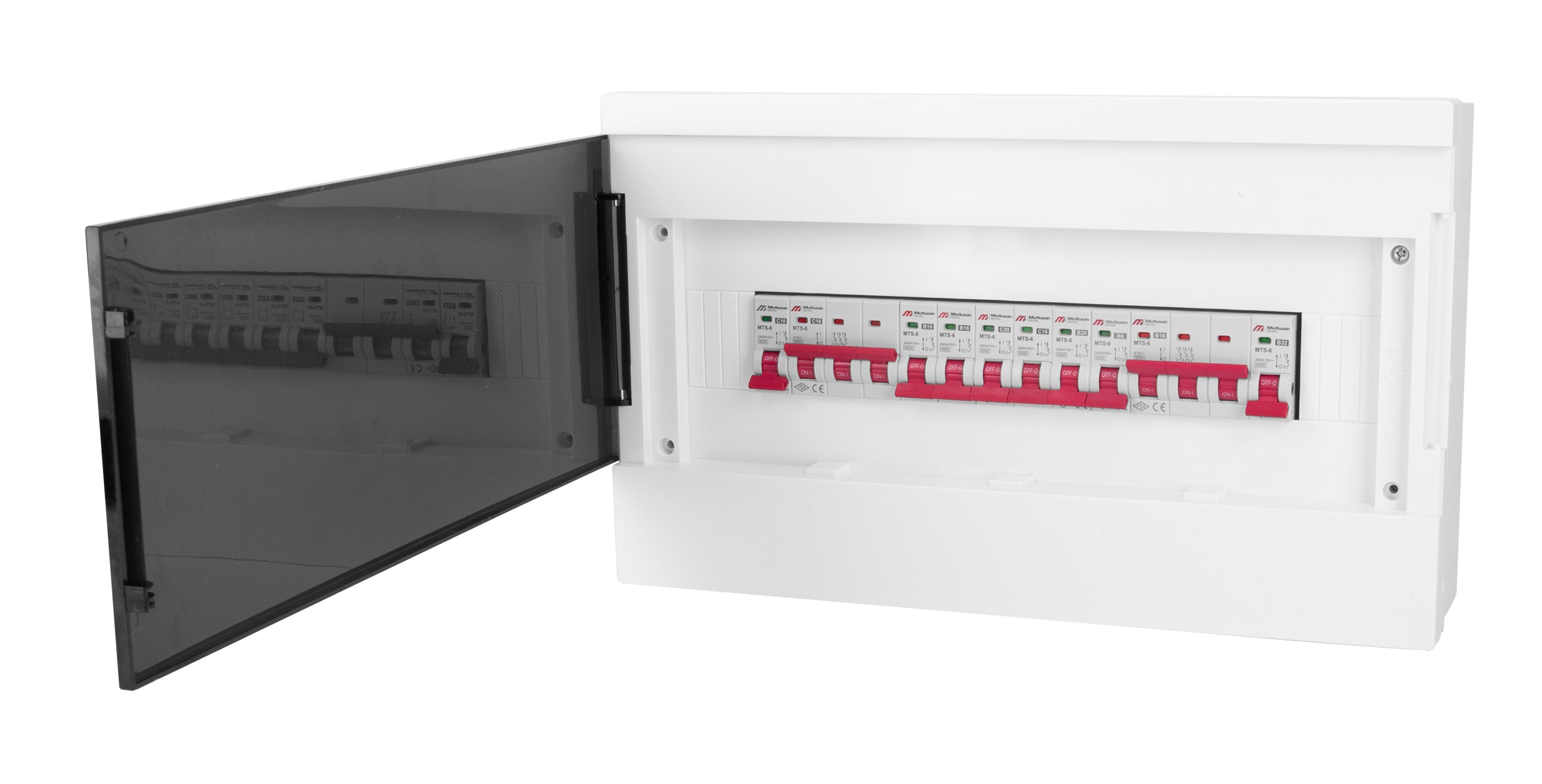

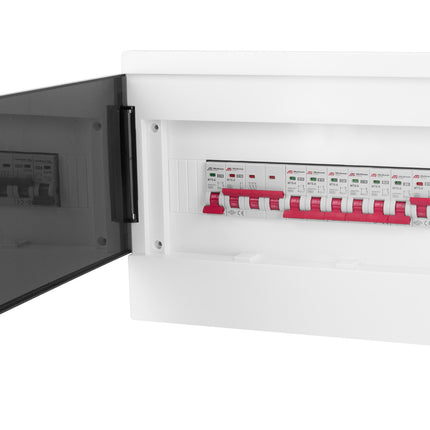

Used in modular distribution boards for protecting individual single-phase circuits. Ideal for residential construction, service premises, and light industrial installations.

Technical Specifications:

  • Number of poles: 1
  • Tripping characteristic: B
  • Rated current: 6A
  • Protection class: IP20
  • Max. conductor cross-section: 1 to 25 mm²
  • Max. tightening torque: 2.5 Nm
  • Mounting: standard DIN rail TH35 mm
  • Operating temperature: -30°C to 60°C
  • Rated operating voltage: AC 230 / 400V
  • Breaking capacity: 6 kA
  • Electrical lifespan: 5000 cycles
  • Mechanical lifespan: 20000 cycles
  • CE certified

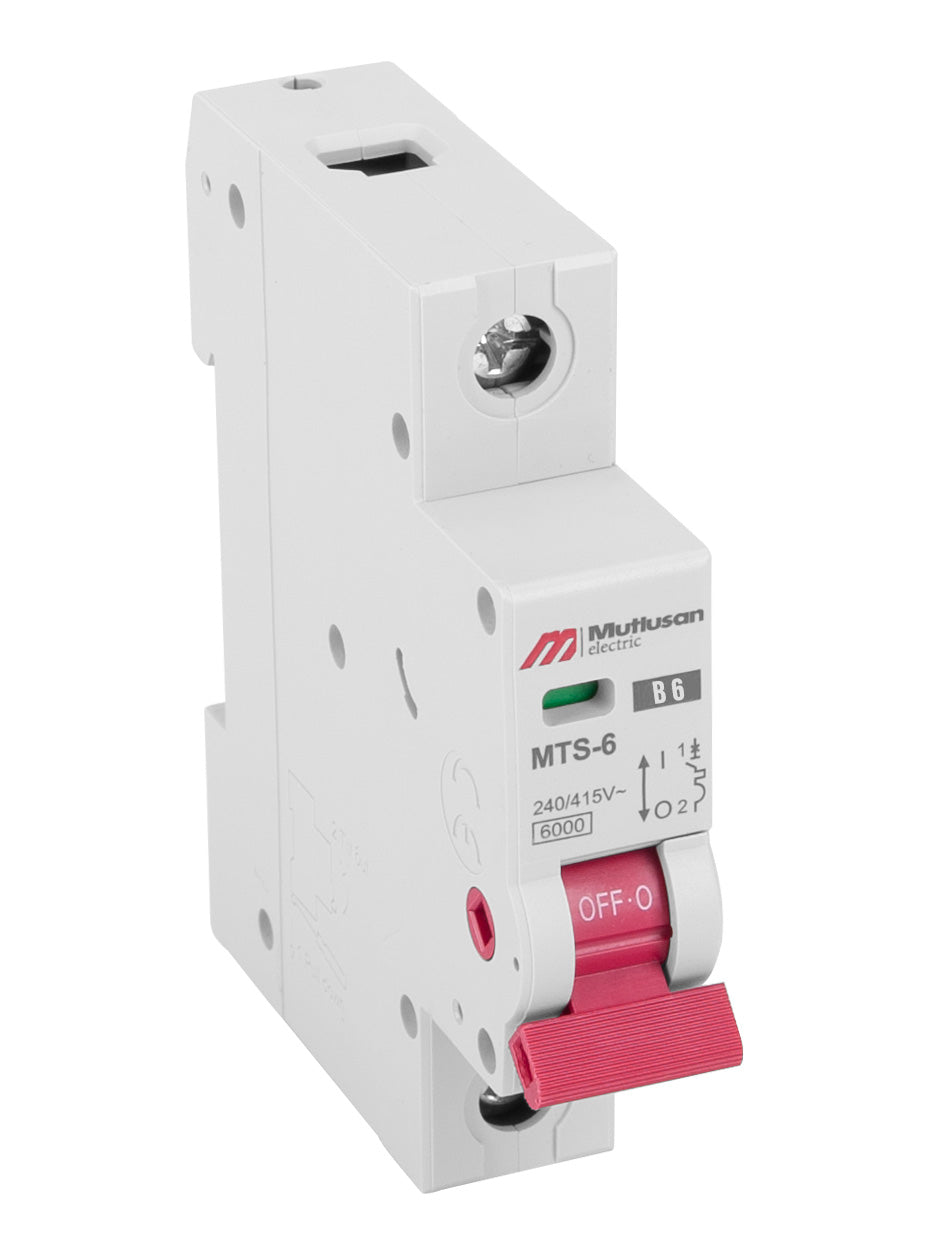

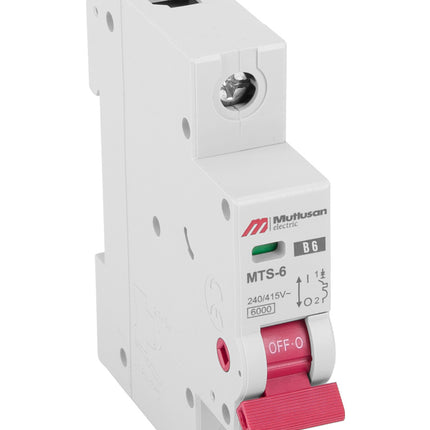

Circuit breaker installation fuse ESKA 6A 1P B6

Product form

Free pickup in our shop(s)

Barcode: 8699430560905

9,99 zł (netto: 8,12 zł)

Large quantity

      Icon for shopping_bagBuy as a set

      Description

      Description

      Single-pole (1P) circuit breaker is a basic protective component for electrical installations, designed to prevent damage from short circuits and overloads. Intended for installation in residential, industrial, and commercial distribution panels.

      Application:
      Used in modular distribution boards for protecting individual single-phase circuits. Ideal for residential construction, service premises, and light industrial installations.

      Technical Specifications:

      • Number of poles: 1
      • Tripping characteristic: B
      • Rated current: 6A
      • Protection class: IP20
      • Max. conductor cross-section: 1 to 25 mm²
      • Max. tightening torque: 2.5 Nm
      • Mounting: standard DIN rail TH35 mm
      • Operating temperature: -30°C to 60°C
      • Rated operating voltage: AC 230 / 400V
      • Breaking capacity: 6 kA
      • Electrical lifespan: 5000 cycles
      • Mechanical lifespan: 20000 cycles
      • CE certified
