Description
General features
The 11.2/20 mm corrugated conduit, made of halogen-free thermoplastic material based on PP (polypropylene), is designed for routing and protecting wires and cables in electrical and telecommunications installations.

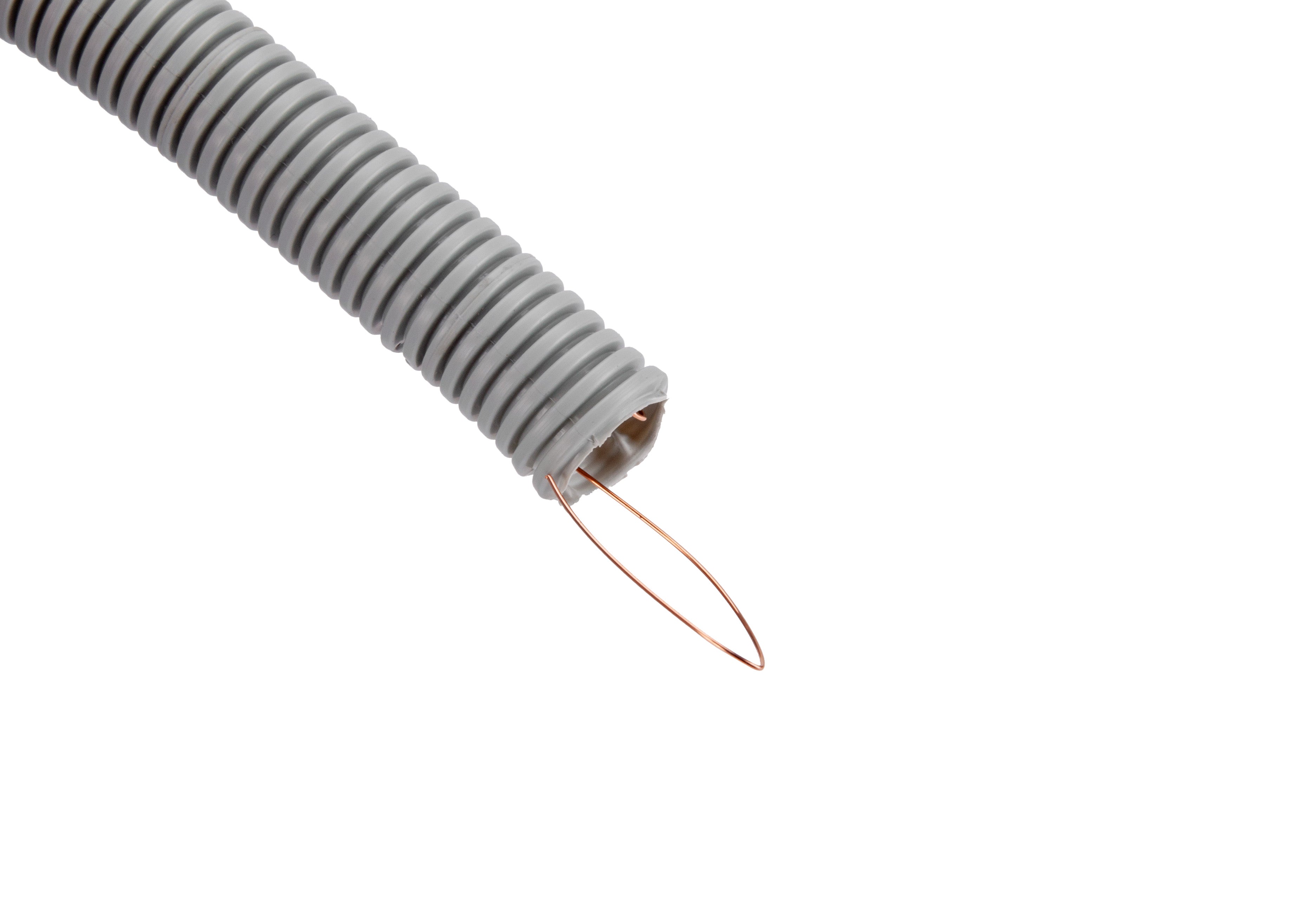

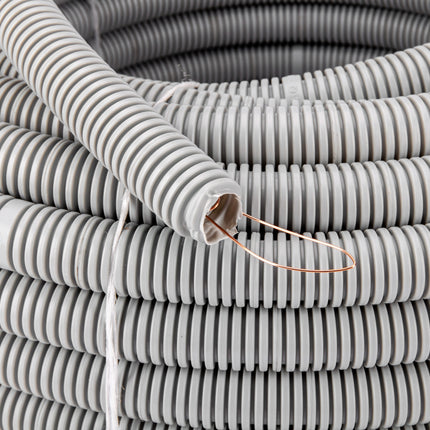

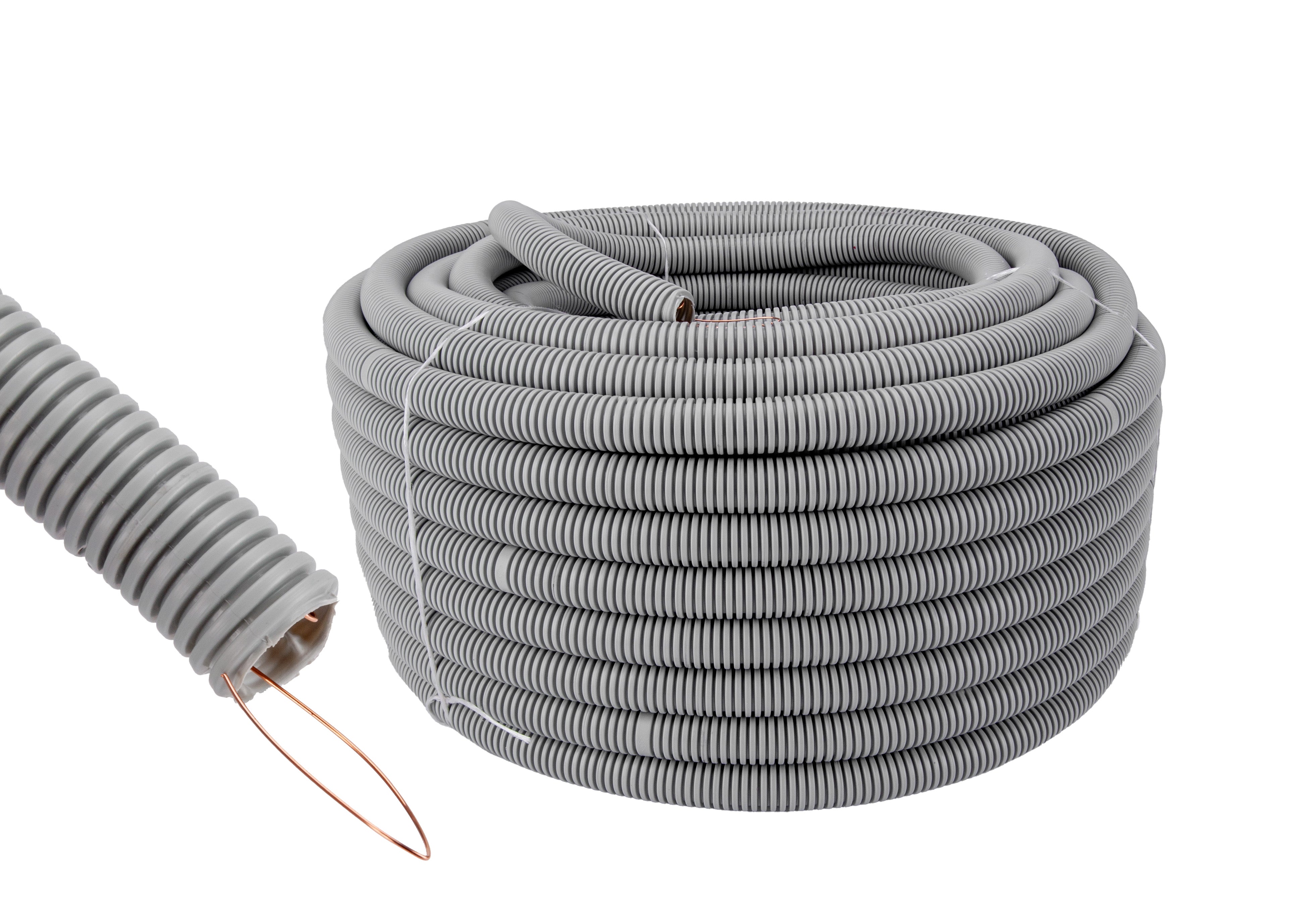

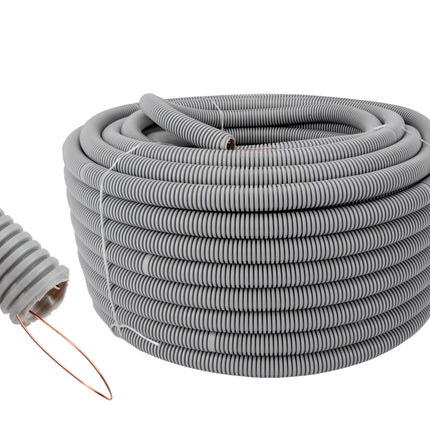

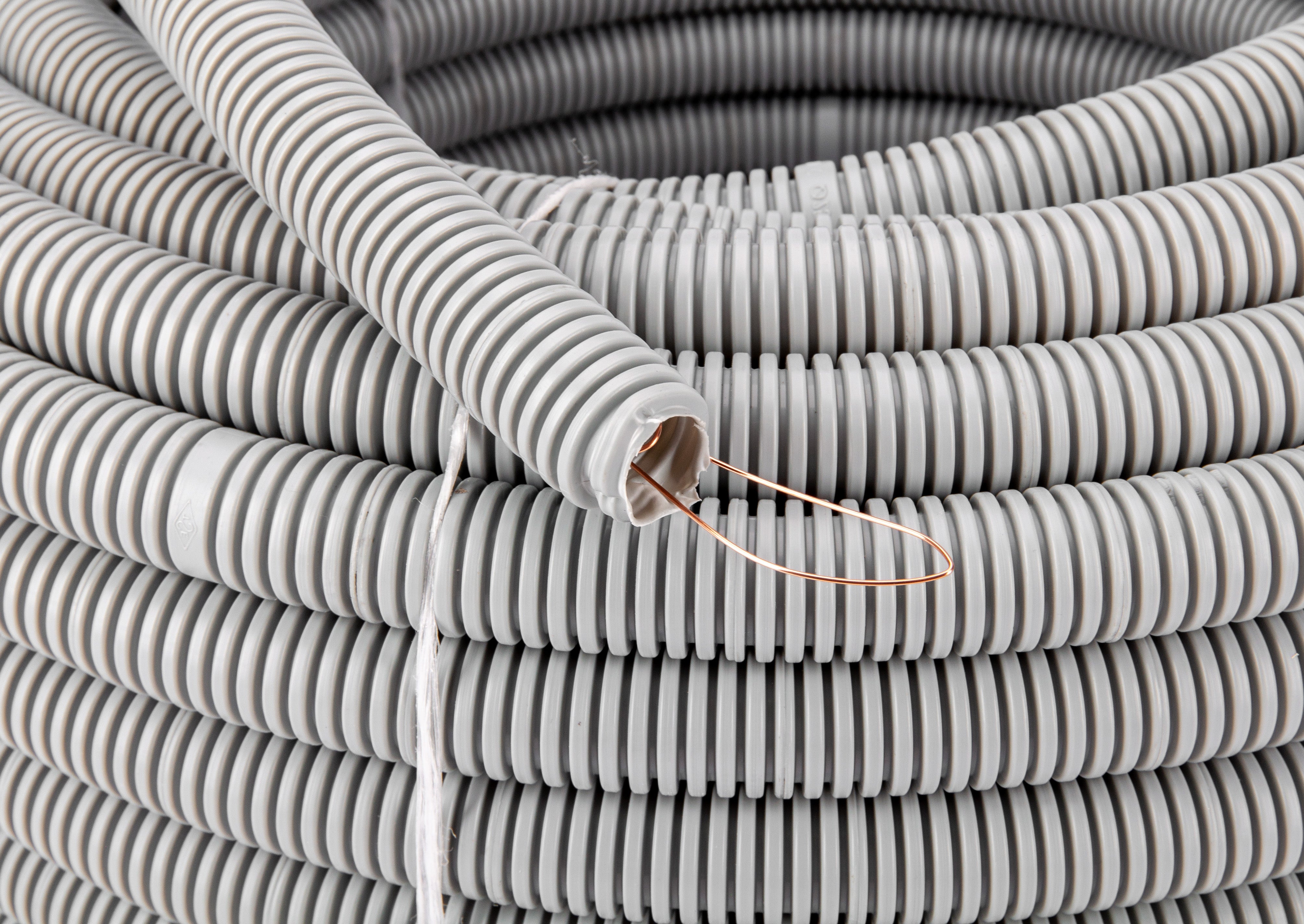

The conduit is equipped with a pull wire, which facilitates pulling cables through the pipe. A compression strength of 750 N and impact resistance allow the conduit to be used in installations requiring increased mechanical strength.
The conduit can operate in a temperature range from -25°C to +60°C. The product is manufactured in accordance with EN 61386-21 / EN 61386-22 standards.

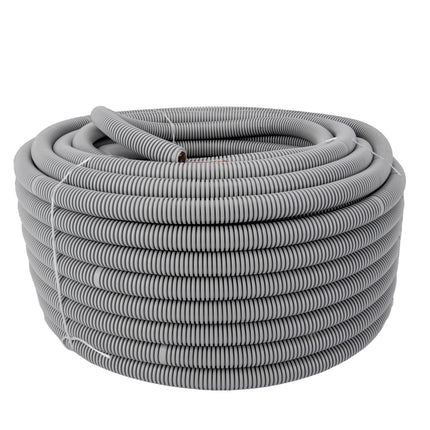

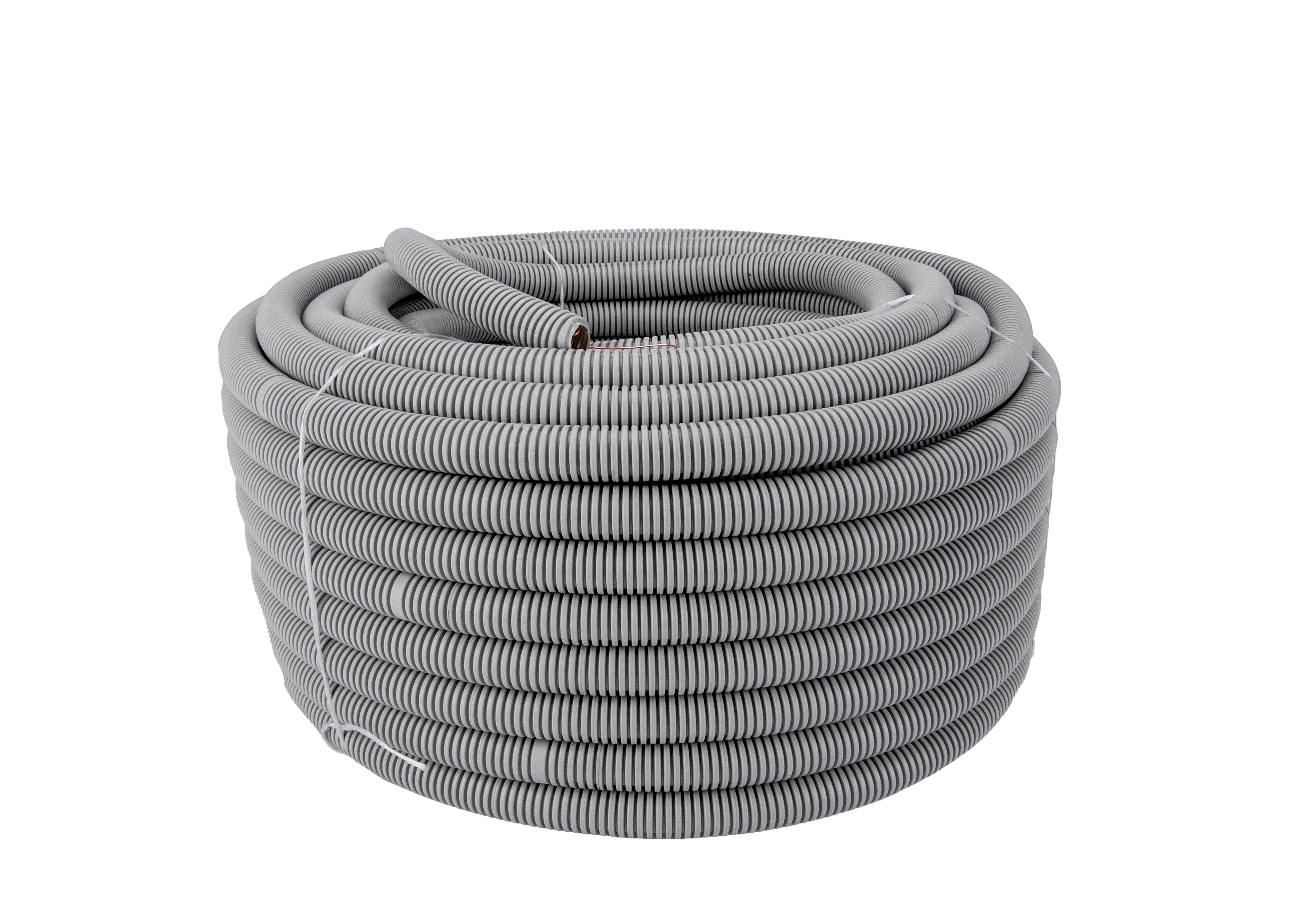

The product is supplied in a 100-meter roll and holds a CE Certificate.
Technical specification
-
Material: Thermoplastic material based on PP
-
Design: Halogen-free
-
Internal diameter: 11.2 mm
-
External diameter: 20 mm
-
Compression strength: 750 N / 60 s / 23 ± 2°C
-
Impact resistance: 2 kg / 100 mm / -25°C
-
Operating temperature: -25°C to +60°C
-
Insulation strength: 2000 V / 50 Hz / 15 min
-
Standard: EN 61386-21 / EN 61386-22
-
Pull wire for cable routing: yes
-
Color: grey
-
Roll length: 100 m
-
Certificate: CE
-
Sales unit: 1 roll = 100 m
