Description
General features

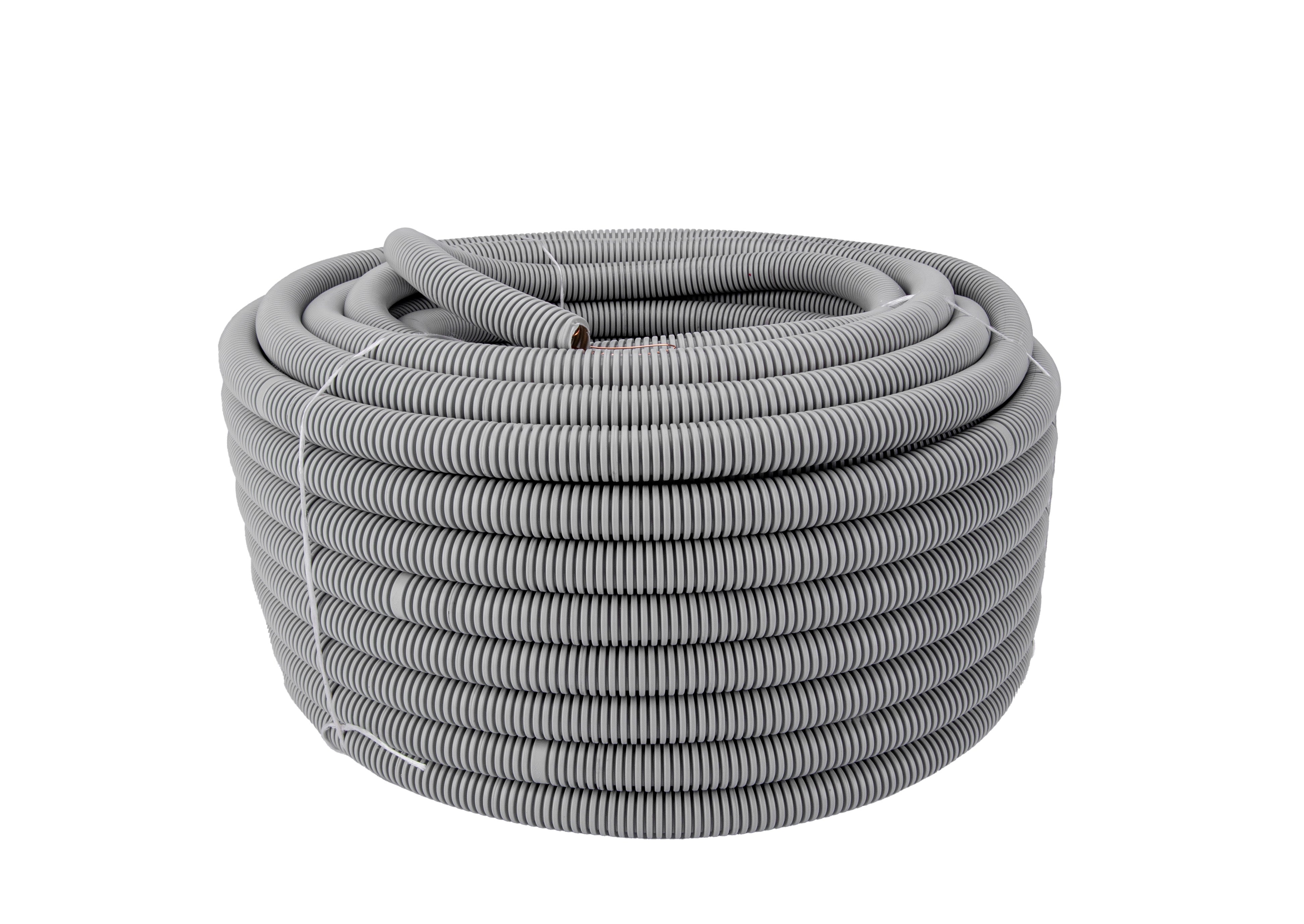

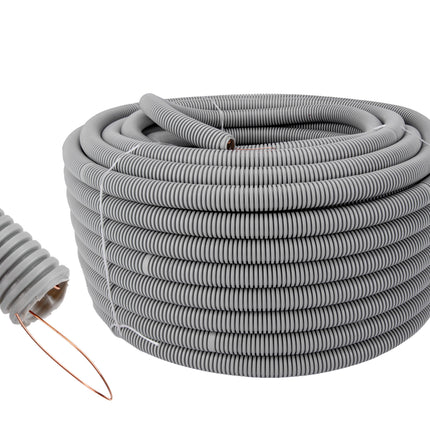

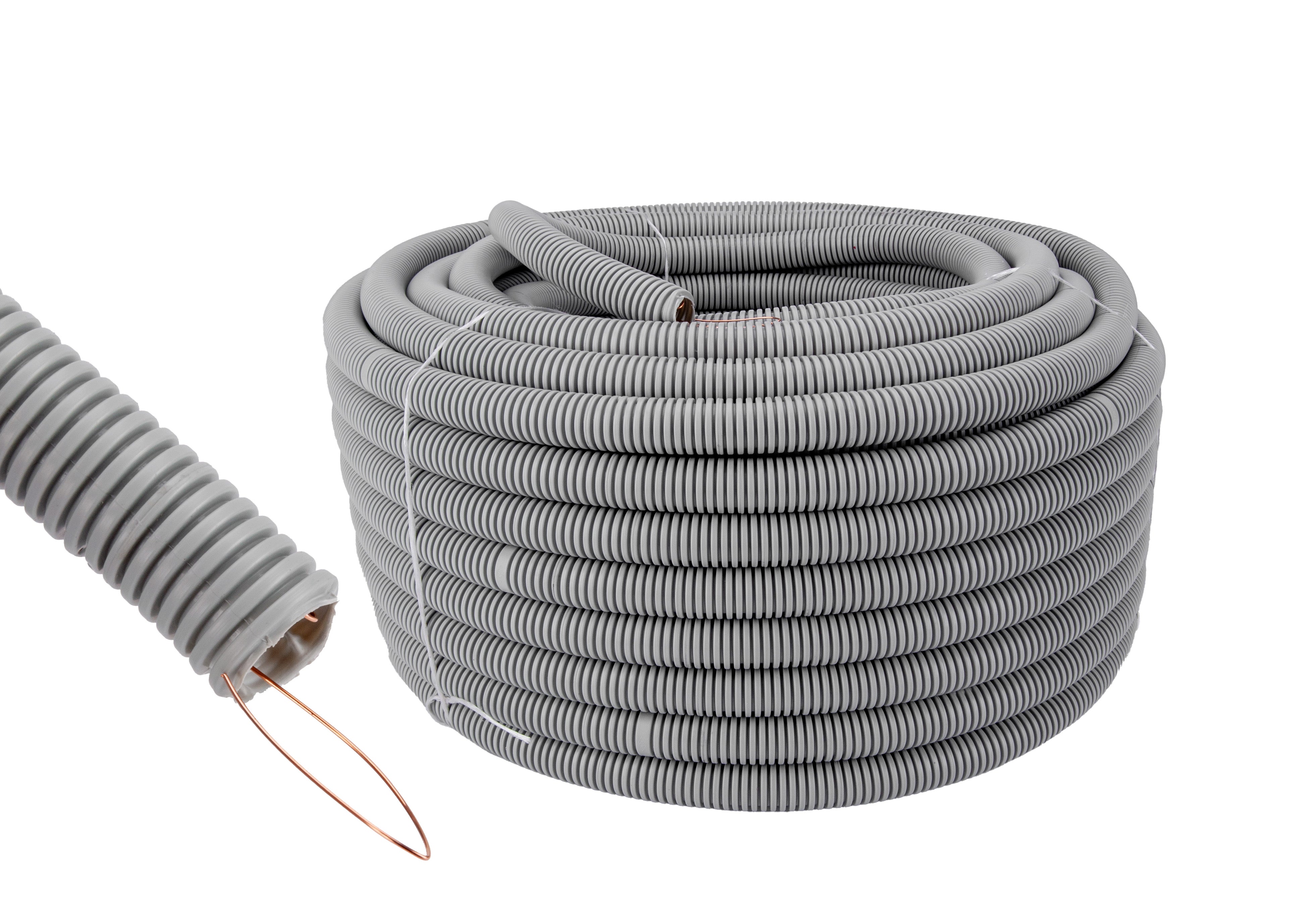

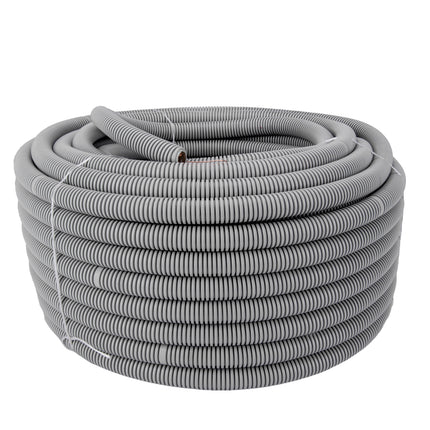

Corrugated conduit 32.2/40 mm made of halogen-free thermoplastic material based on PP (polypropylene) is intended for routing and protecting wires and cables in electrical and telecommunication installations.

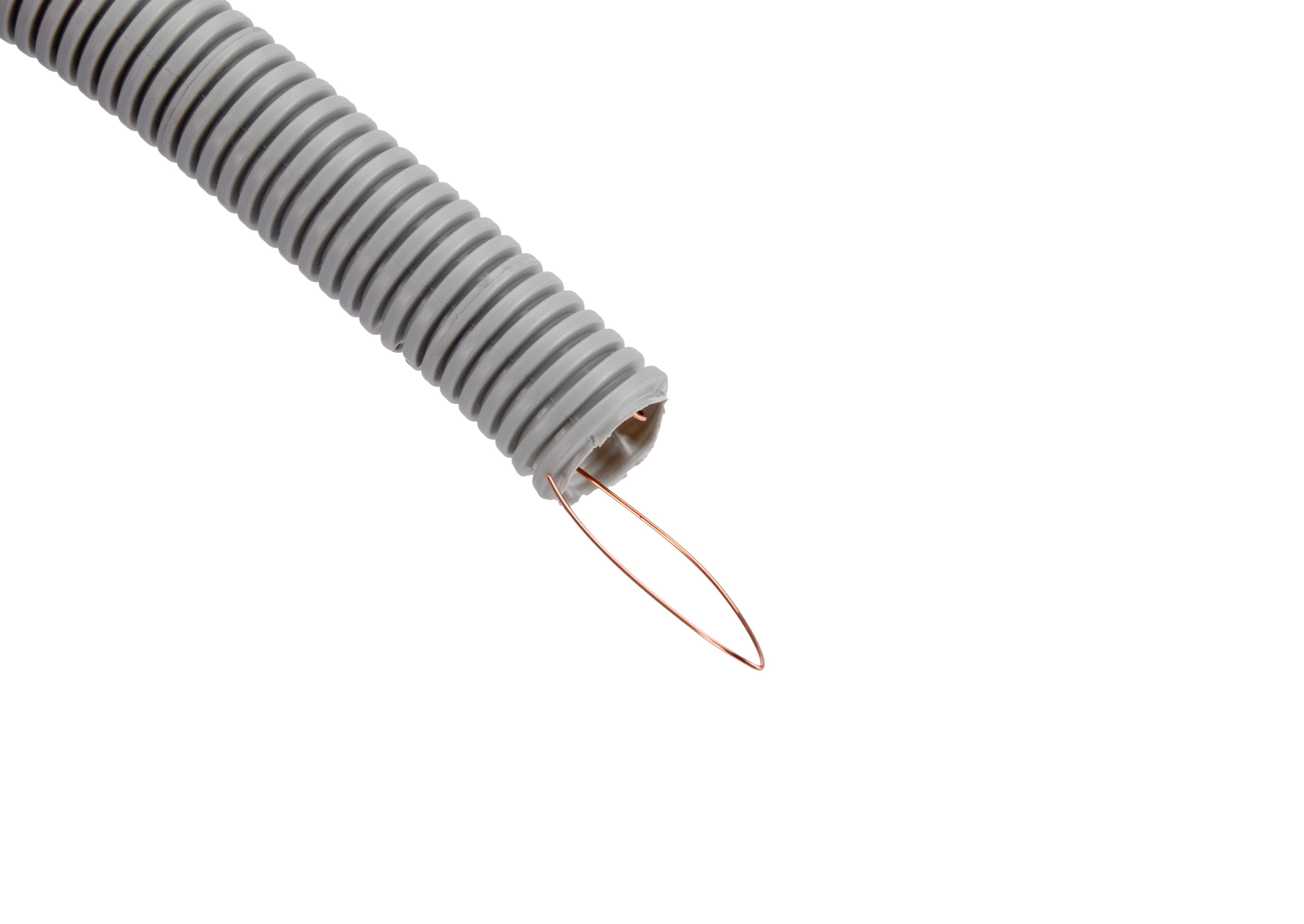

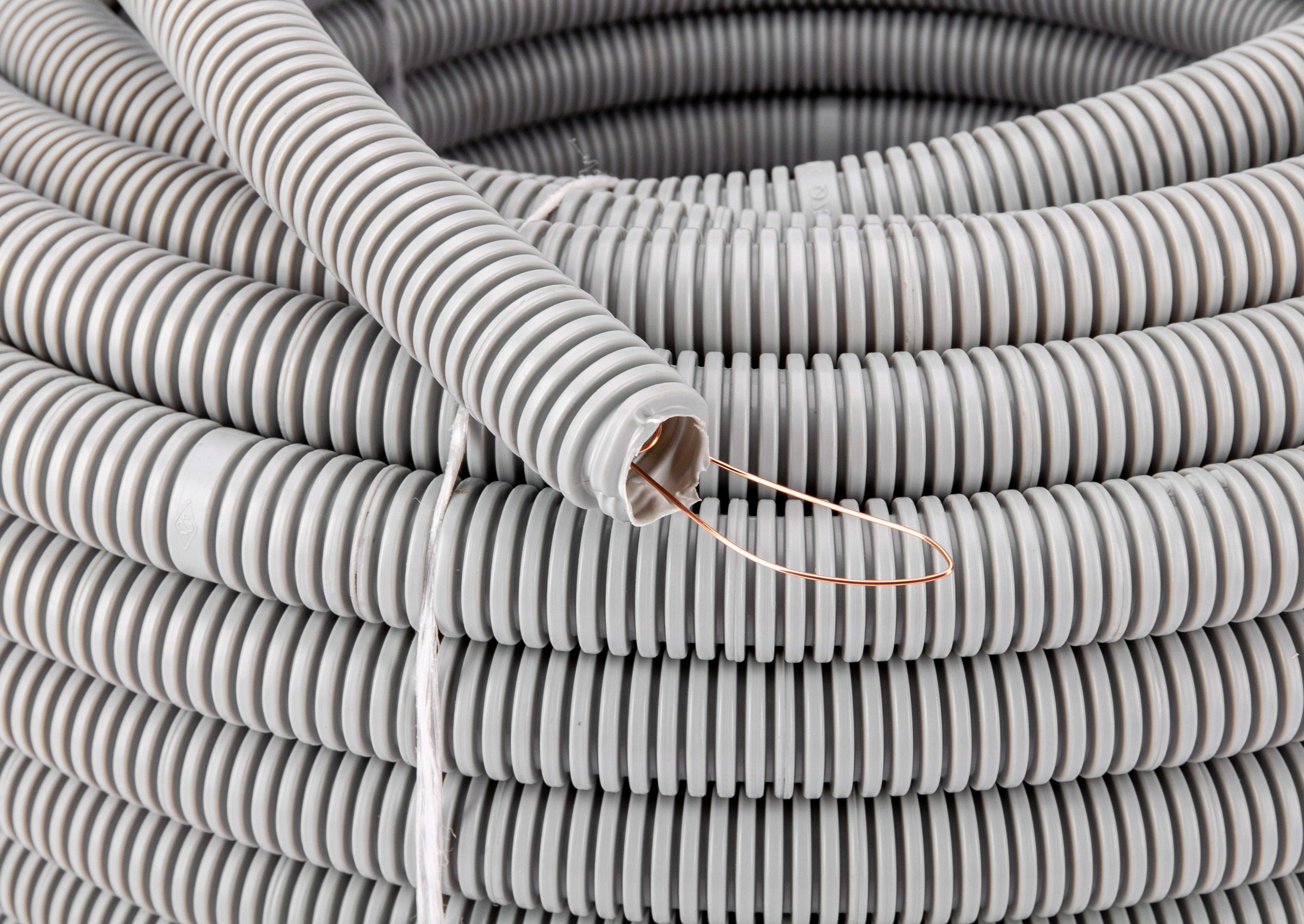

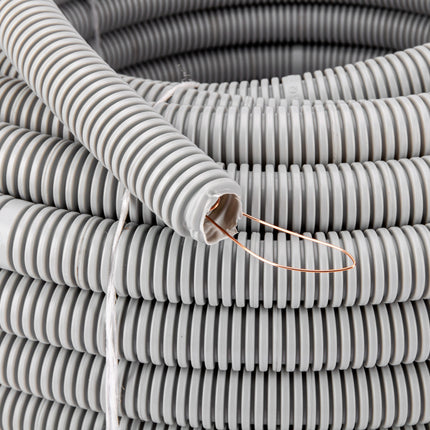

The conduit is equipped with a draw wire, which facilitates pulling cables through the pipe. A compression strength of 750 N and impact resistance allow the conduit to be used in installations requiring increased mechanical strength.
The conduit can operate in a temperature range from -25°C to +60°C. The product is manufactured in accordance with EN 61386-21 / EN 61386-22 standards.
The product is supplied in a 25-meter roll and has a CE Certificate.
Technical specification
-
Material: thermoplastic material based on PP
-
Construction: halogen-free
-
Inner diameter: 32.2 mm
-
Outer diameter: 40 mm
-
Compression strength: 750 N / 60 s / 23 ± 2°C
-
Impact resistance: 2 kg / 100 mm / -25°C
-
Operating temperature: -25°C to +60°C
-
Insulation strength: 2000 V / 50 Hz / 15 min
-
Standard: EN 61386-21 / EN 61386-22
-
Draw wire for cable pulling: yes
-
Colour: grey
-
Roll length: 25 m
-
Certificate: CE
-
Sales unit: 1 roll = 25 m
