Description

High-quality metal hinge designed for mounting doors and flaps installed on the same plane. The product is perfectly suited for use in electrical distribution boxes, meter cabinets, boilers, machine tools, integrated enclosures, machines, generators, as well as screw compressors and metal cabinets. Thanks to its precise craftsmanship and solid materials, it ensures long-lasting durability and stability in all working conditions.

Specification:

  • Model: 0Z-0009
  • Material: ZNAL casting, powder-coated in black (RAL9005)
  • Hinge pin: Stainless steel
  • Opening angle: 180 degrees
  • Type: Hinge with mounting holes

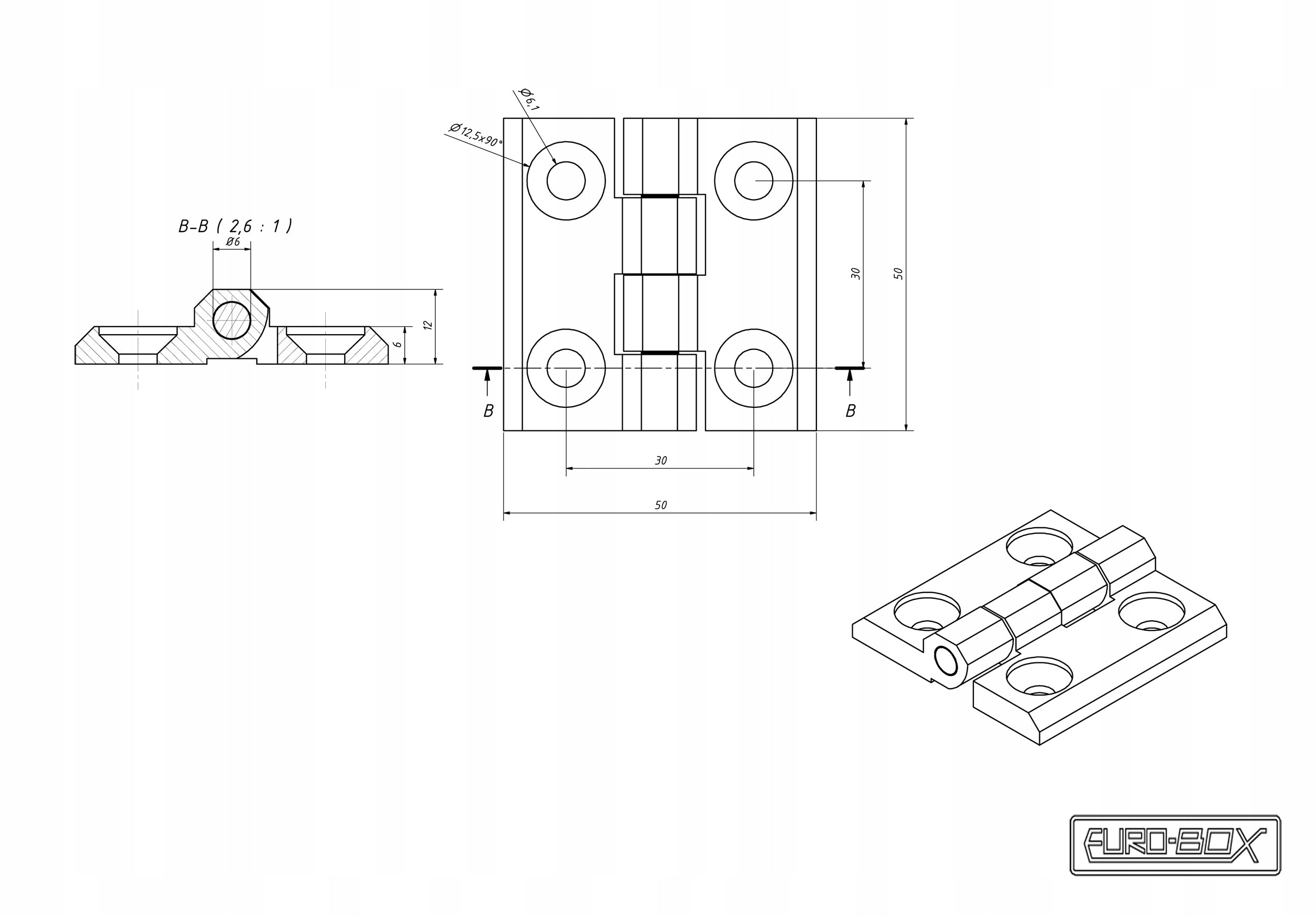

Dimensions:

  • Height: 50 mm
  • Width: 50 mm
  • Thickness: 8 mm

Product Advantages:

  • High resistance to corrosion and weather conditions due to the powder coating.
  • Universal application in various types of enclosures and metal constructions.
  • Stability and easy installation thanks to precisely shaped holes for M6 screws.

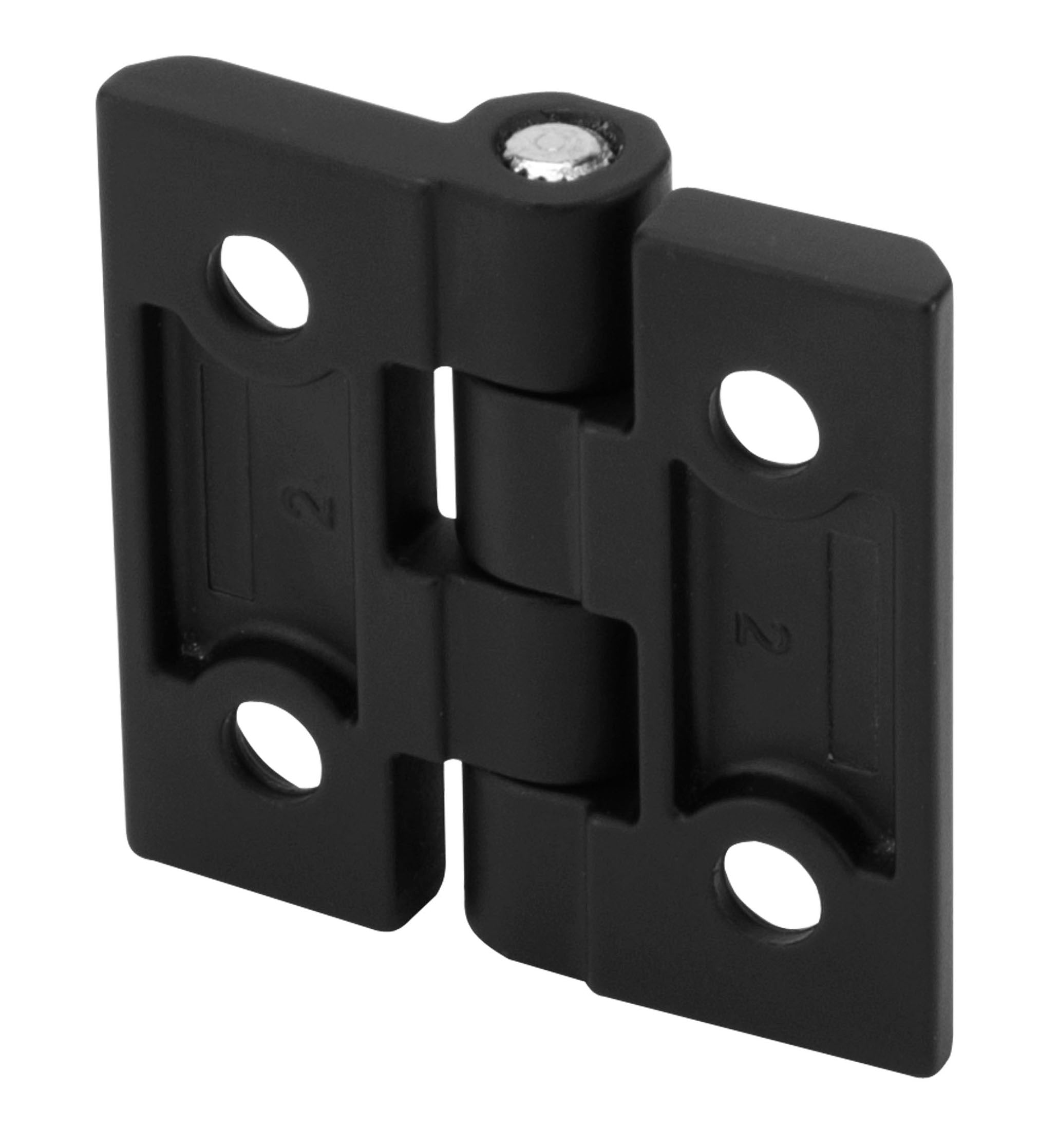

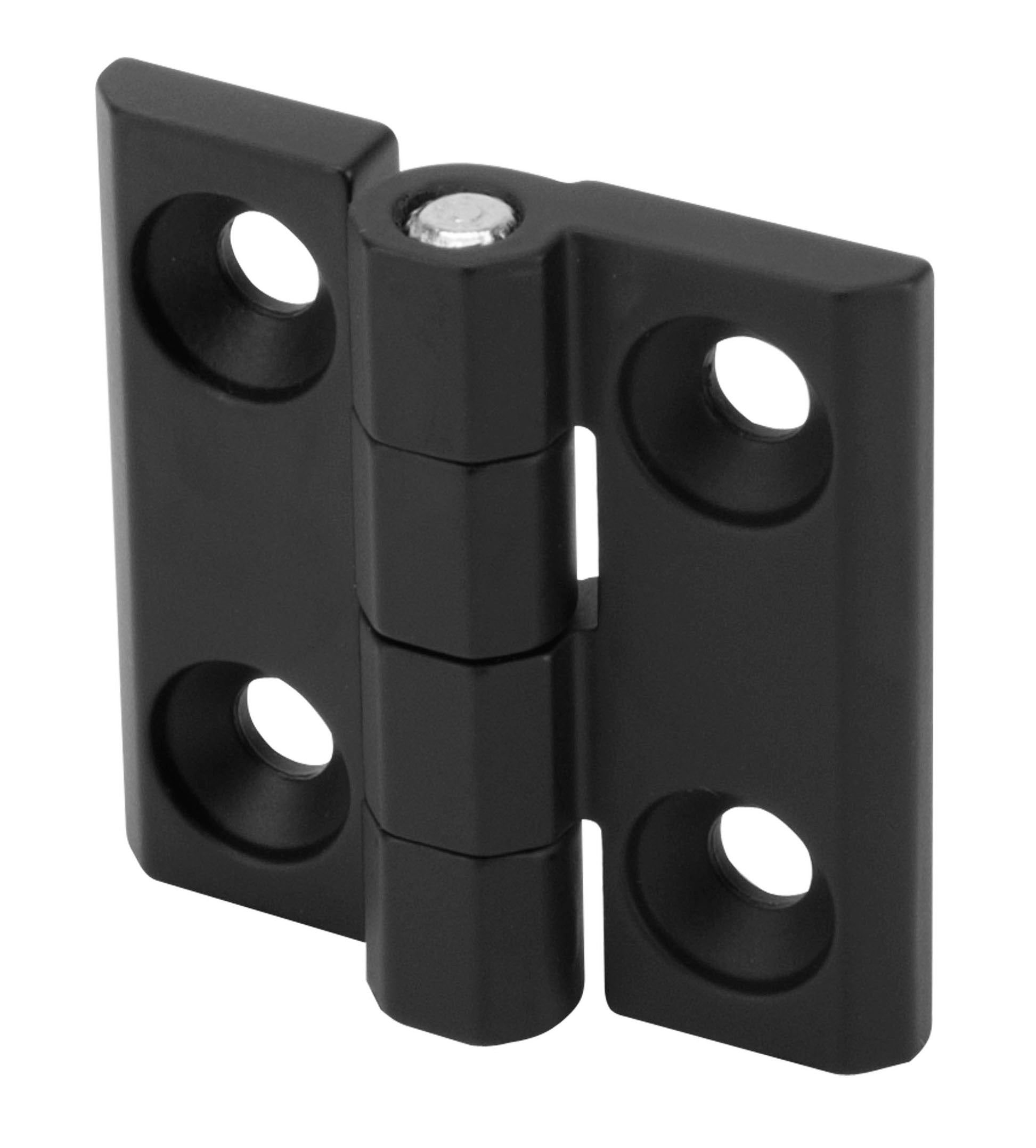

Screw-on flat metal hinge with holes, 50x50, M6, 0Z-0009

Product form

Free pickup in our shop(s)

Barcode: 5903968231354

13,50 zł (netto: 10,98 zł)

Large quantity

      Description

      High-quality metal hinge designed for mounting doors and flaps installed on the same plane. The product is perfectly suited for use in electrical distribution boxes, meter cabinets, boilers, machine tools, integrated enclosures, machines, generators, as well as screw compressors and metal cabinets. Thanks to its precise craftsmanship and solid materials, it ensures long-lasting durability and stability in all working conditions.

      Specification:

      • Model: 0Z-0009
      • Material: ZNAL casting, powder-coated in black (RAL9005)
      • Hinge pin: Stainless steel
      • Opening angle: 180 degrees
      • Type: Hinge with mounting holes

      Dimensions:

      • Height: 50 mm
      • Width: 50 mm
      • Thickness: 8 mm

      Product Advantages:

      • High resistance to corrosion and weather conditions due to the powder coating.
      • Universal application in various types of enclosures and metal constructions.
      • Stability and easy installation thanks to precisely shaped holes for M6 screws.
