Description

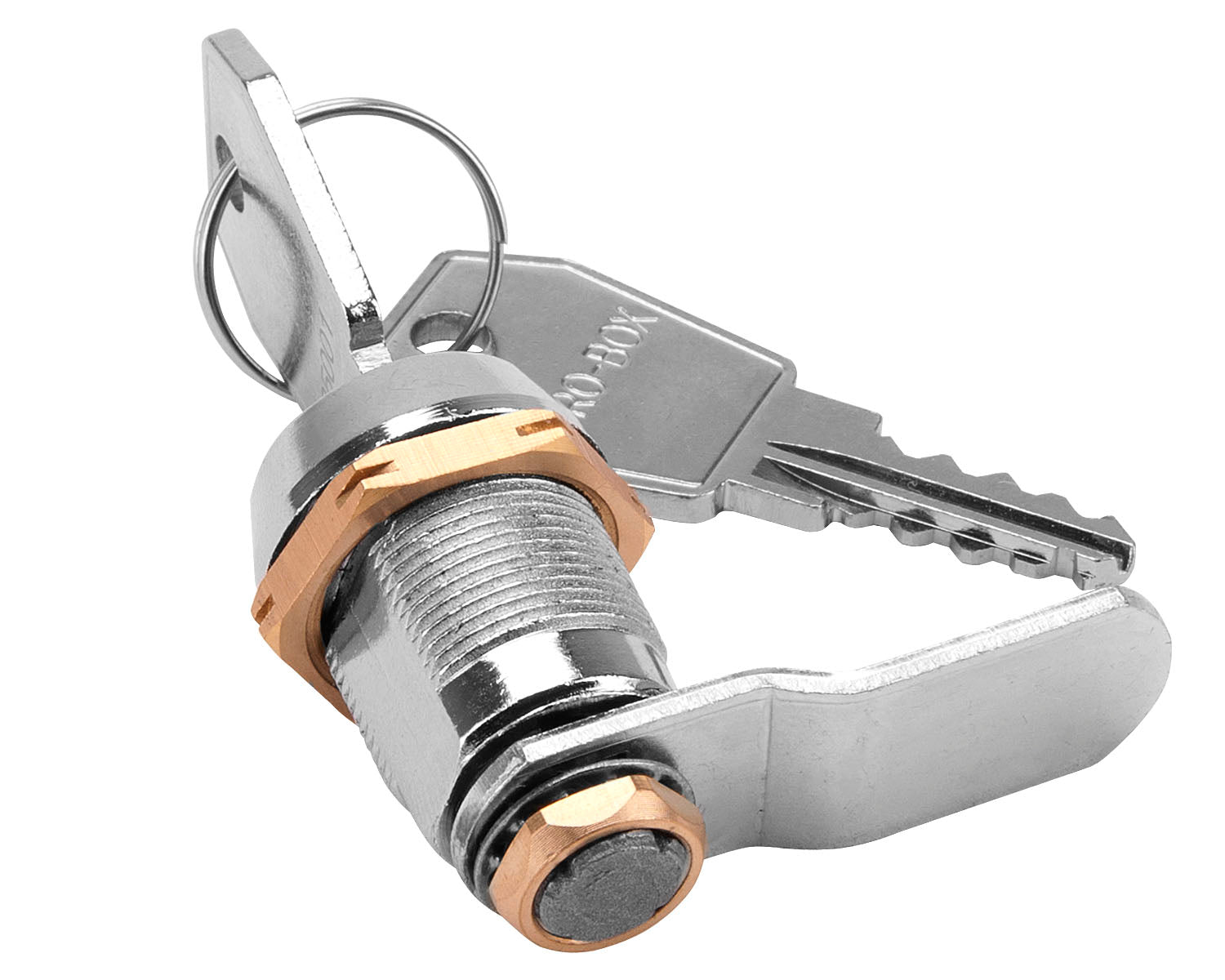

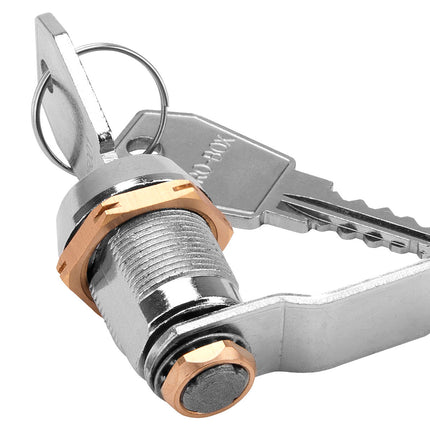

BHP Euro-Box cam lock
Cylinder lock designed for metal, clothing, health and safety, deposit, social and school lockers as well as power, telecommunications and ICT boxes.
It provides effective protection against unauthorized access. Two keys are included for added convenience and security.
Specification:
-
Different lock code in the MASTER system
- Model: 1ZC-0611, in code group 25
- Number of combinations: 2000
- Fastened with a nut (can be changed to a cotter pin)
- Key rotation angle 90 ° - Type A - opens to the right (door hinges should be on the right side) key removable in the closed position
Lock dimensions:
-
Mounting hole: 16.1x19.1 mm
-
Body length: 20 mm
-
Lock diameter: 22.5 mm
-
Default bolt : 2.4 mm offset, 38 mm length
