Description

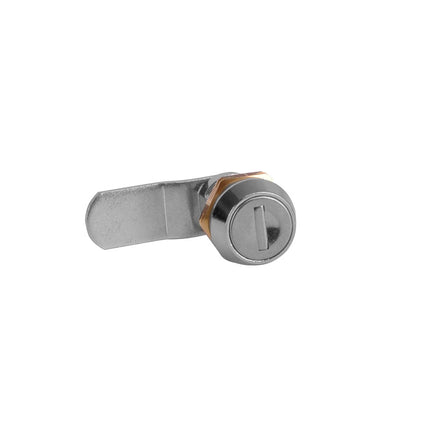

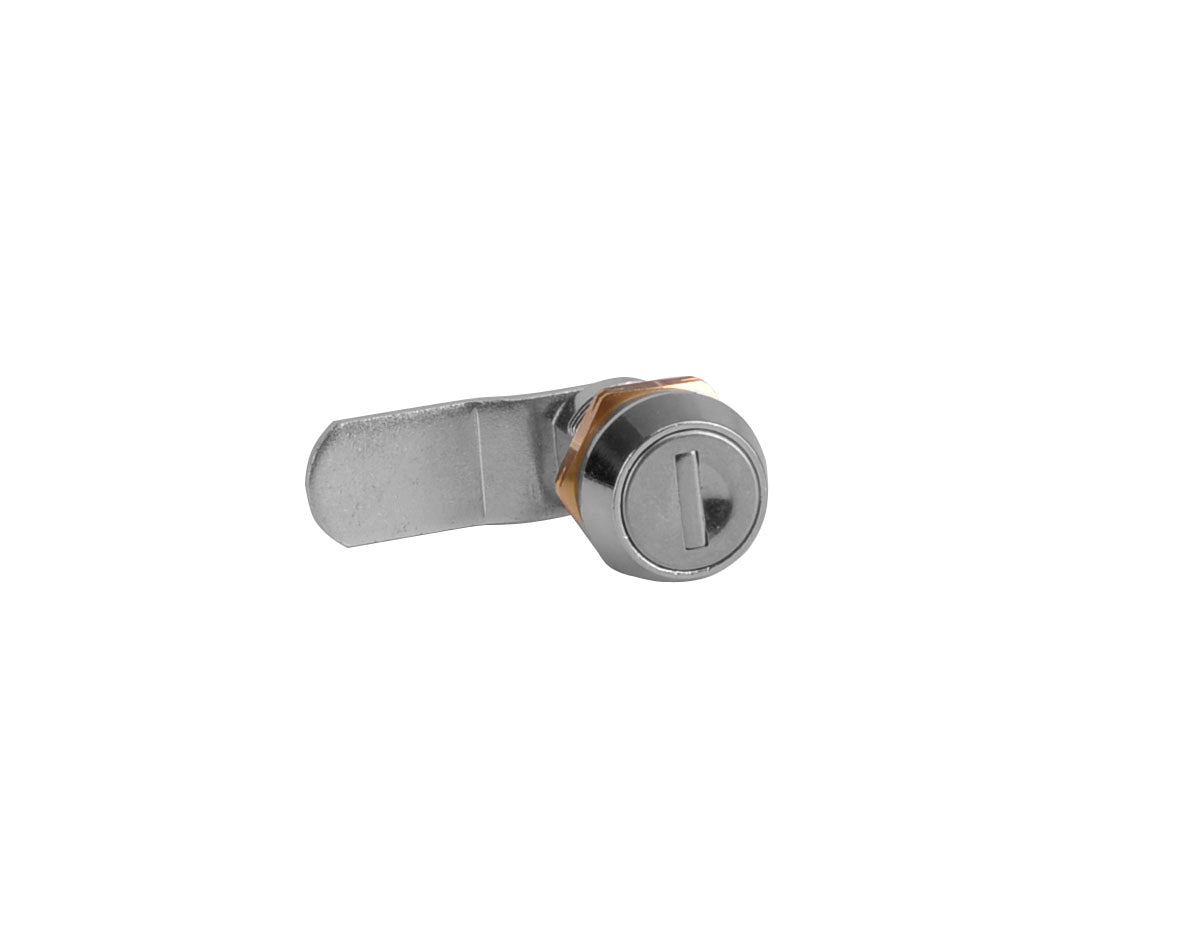

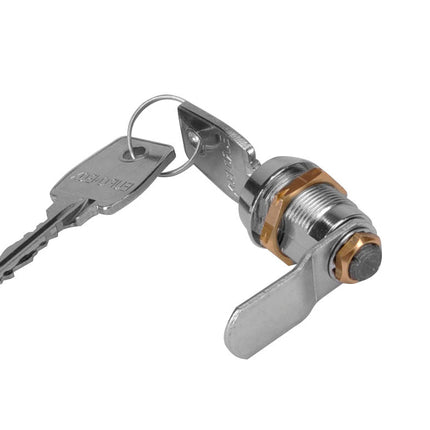

180° lock for a box/safety cabinet/clothing locker with a dust latch

A solid and durable lock for safety cabinets, metal boxes, school lockers and clothing lockers, equipped with a practical dust latch that protects the mechanism from dirt and extends its lifespan.

Specification:

  • Multiple Code System, MASTER
  • Model: 1ZC-0595

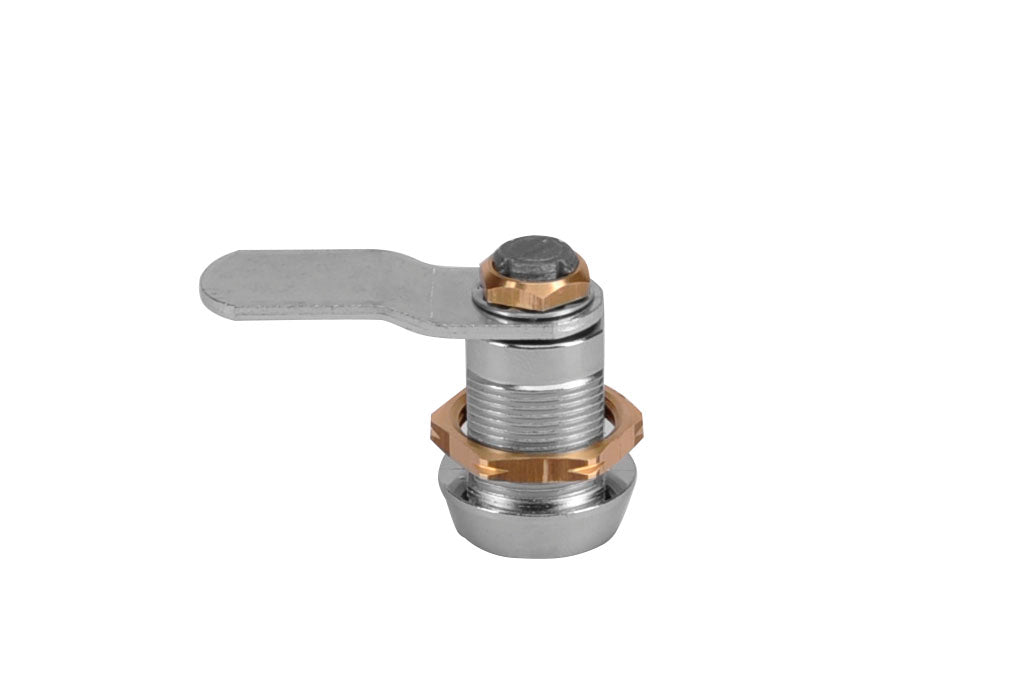

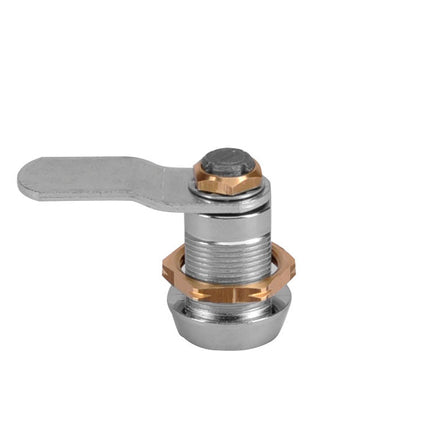

  • Fastened with a nut (can be changed to a cotter pin)

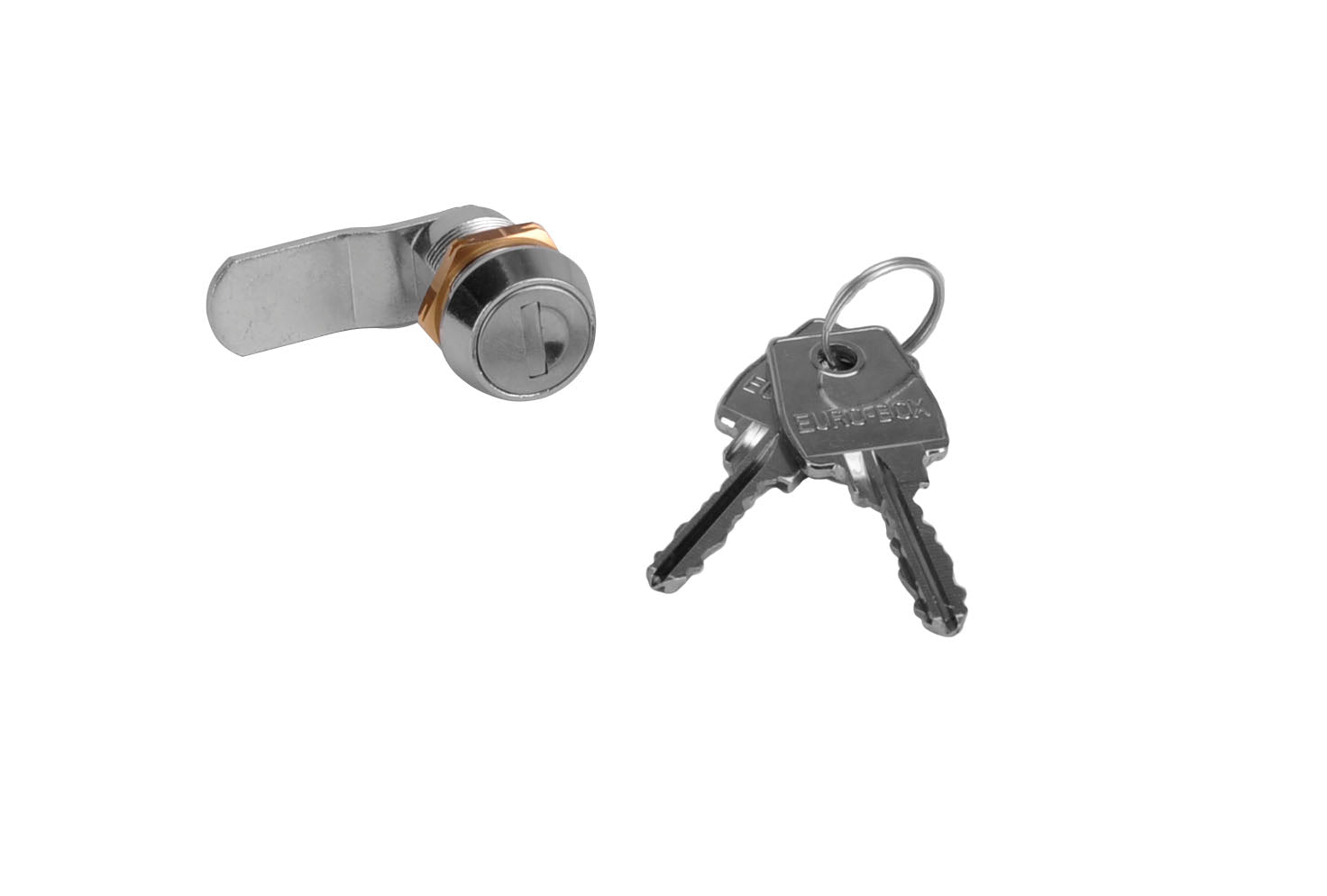

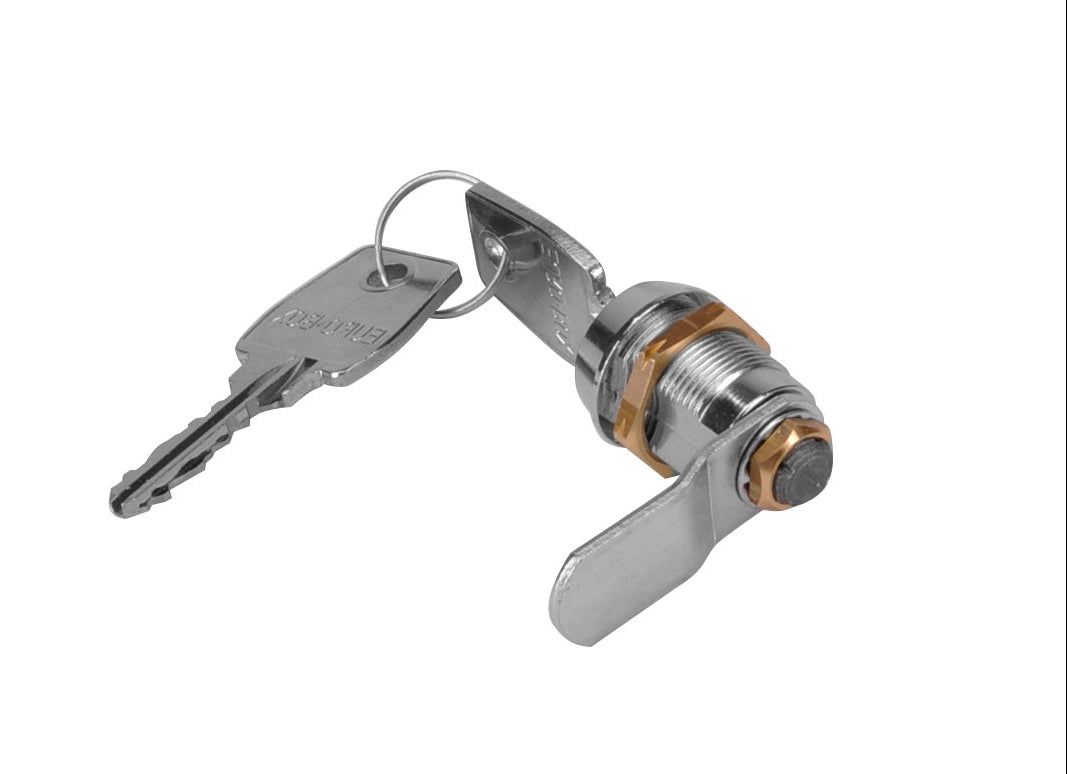

  • Key rotation angle 180 ° - Type B - key removable in open and closed position

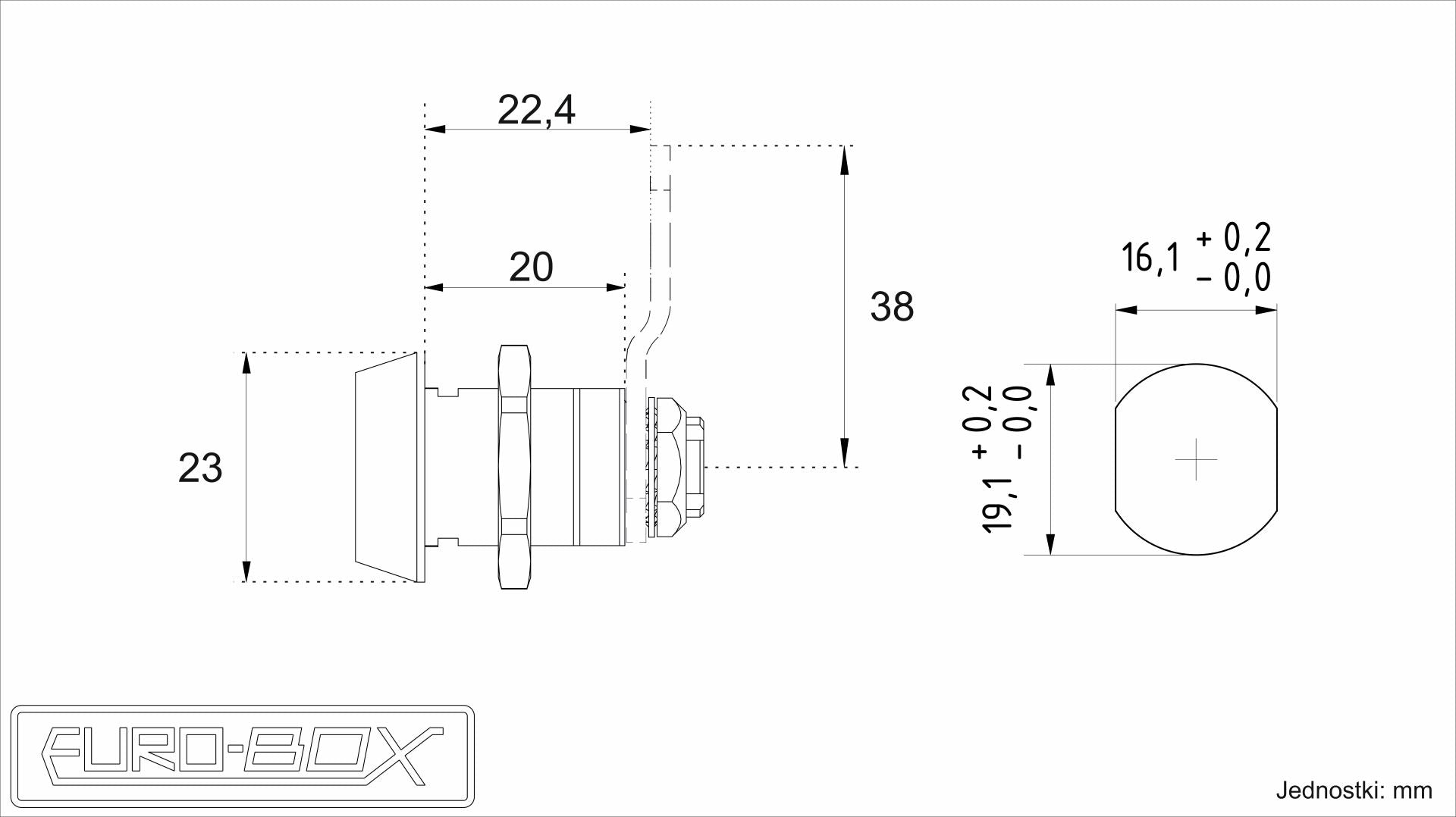

Dimensions:

  • Mounting hole: 16.1 x 19.1 mm
  • Body length: 20 mm
  • Lock diameter: 22.5 mm
  • Default bolt: 2.4mm offset, 30mm length

Need a different bolt?

Select one of the available bolt options and include this information in the notes to seller or via Allegro. If you don't select a variant, you'll receive the default bolt: a straight 30 mm long bolt.

  • 3/EB/7210022: Straight bolt, 22 mm long
  • 3/EB/7210030: Straight bolt, 30 mm long
  • 3/EB/7210039: Straight bolt, 39 mm long
  • 3/EB/7210045: Straight bolt, 45 mm long
  • 3/EB/7210050: Straight bolt, 50 mm long
  • 3/EB/7230335: Bolt bent 1.2 mm, length 35 mm
  • 3/EB/7230436: Bent bolt 1.6 mm, length 36 mm
  • 3/EB/7230532: Bolt bent 2.0 mm, length 32 mm
  • 3/EB/7230638: Bent bolt 2.4 mm, length 38 mm
  • 3/EB/7230642: Bent bolt 2.4 mm, length 42 mm
  • 3/EB/7231228: Bent bolt 4.8 mm, length 28 mm
  • 3/EB/7231232: Bent bolt 4.8 mm, length 32 mm
  • 3/EB/7231242: Bent bolt 4.8 mm, length 42 mm
  • 3/EB/7231040: Bent bolt 4.0 mm, length 40 mm
  • 3/EB/7231534: Bent bolt 6.0 mm, length 34 mm
  • 3/EB/7241648: Bent bolt 6.4 mm, length 48 mm
  • 3/EB/7241832: Bent bolt 7.0 mm, length 32 mm
  • 3/EB/7231850: Bent bolt 7.0 mm, length 50 mm
  • 3/EB/7243232: Bent bolt 12.7 mm, length 32 mm

How to measure a castle?
